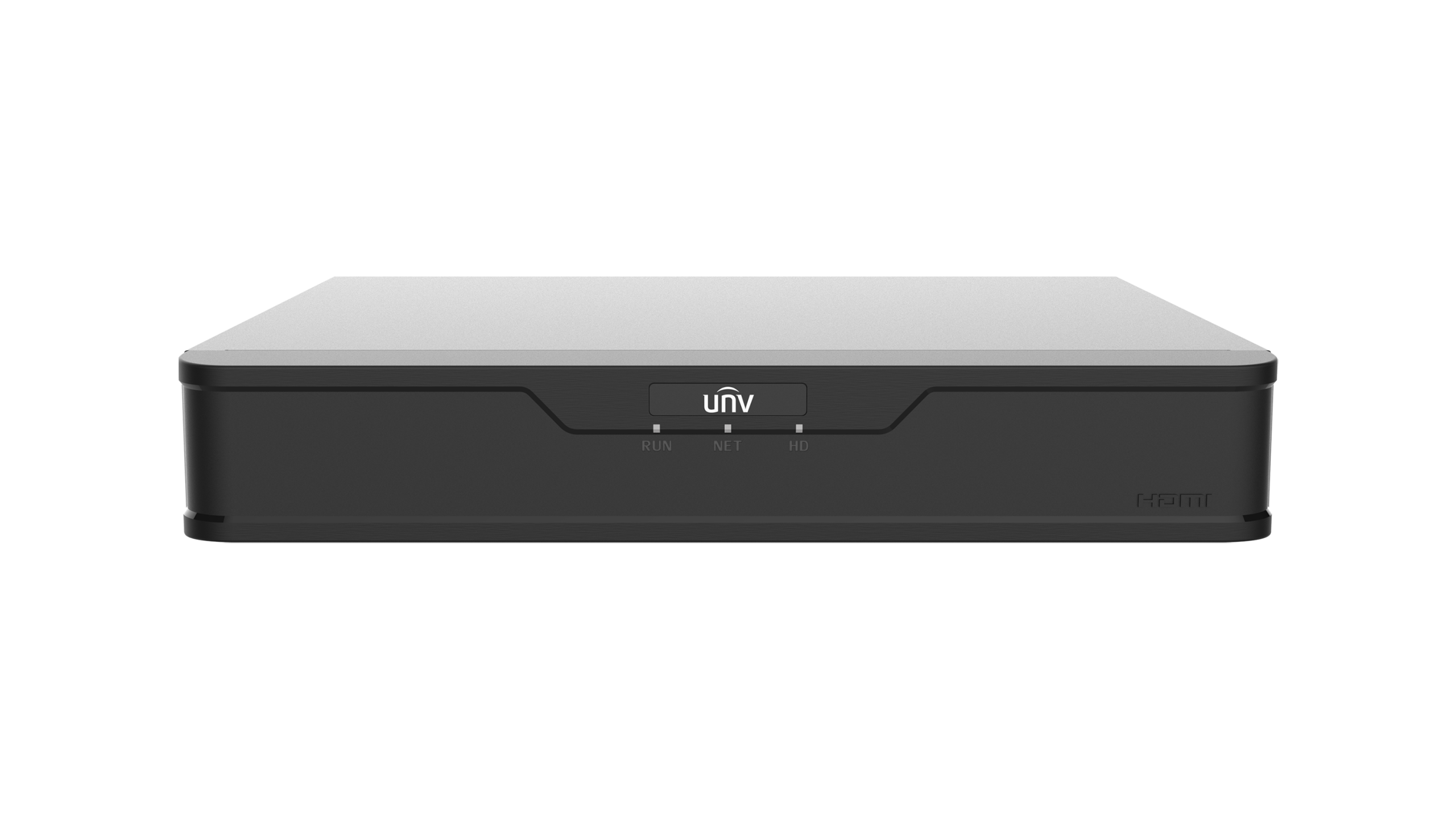

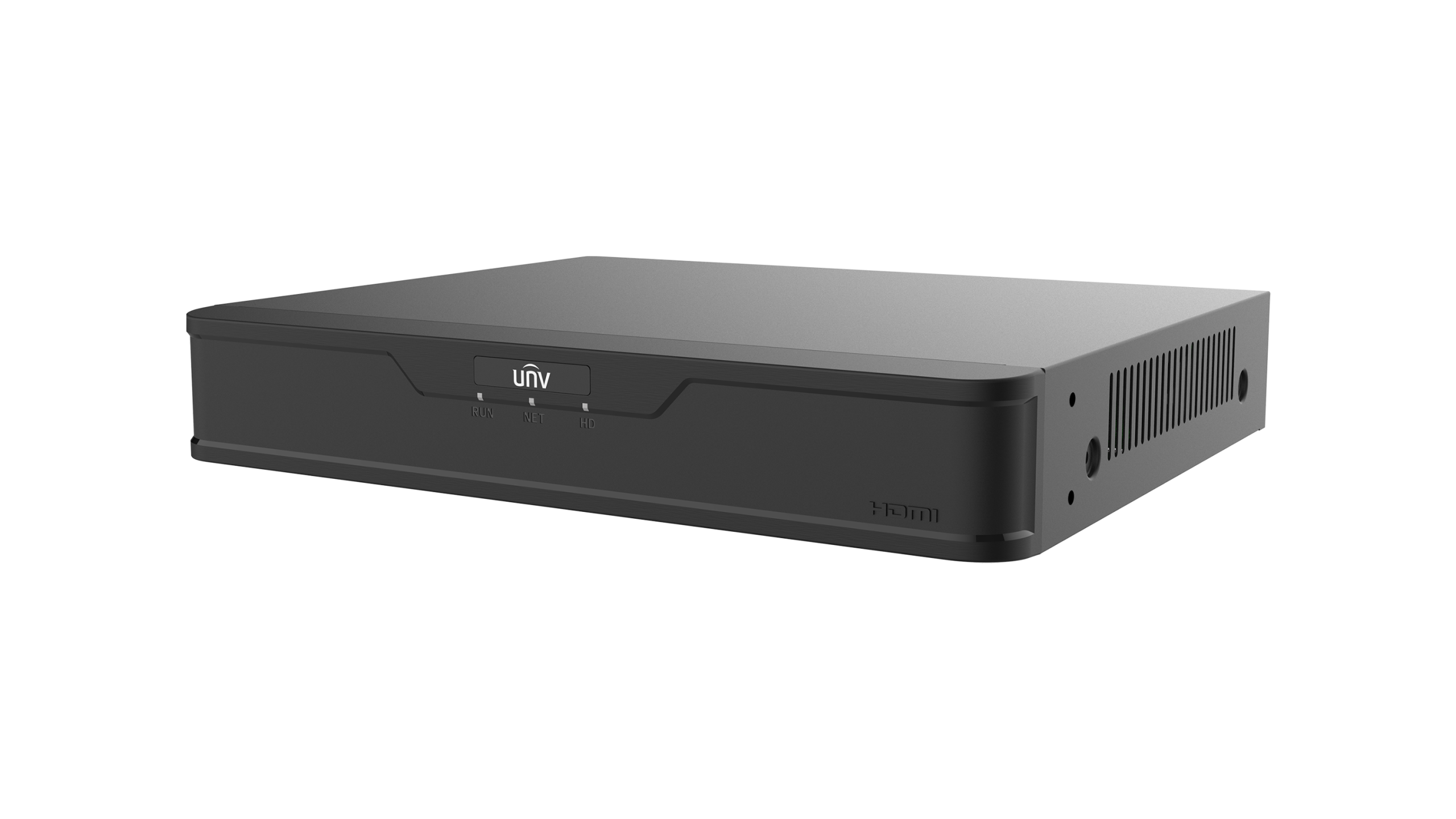

XVR301-16G3 16-Ch 1U Digital Video Recorder

Name: XVR301-16G3 16-Ch 1U Digital Video Recorder
Brand: UNV
SKU: XVR301-16G3

SKU: XVR301-16G3

16-Ch 1U Digital Video Recorder

12 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Product Manual

No related firmware found.

Additional information

Channels	16 Channel
HDD Support	1 HDD
Built-in PoE Ports	N/A
IP Video Input	8-ch
Analog Video Input	16-ch , BNC
Max IP Video Input	16-ch
HDMI Output	HDMI: 1920 × 1080/60 Hz , 1920 × 1080/50 Hz , 1600 × 1200/60 Hz , 1280 × 1024/60 Hz , 1280 × 720/60 Hz , 1024 × 768/60 Hz
VGA Output	VGA: 1920 × 1080/60 Hz , 1920 × 1080/50 Hz , 1600 × 1200/60 Hz , 1280 × 1024/60 Hz , 1280 × 720/60 Hz , 1024 × 768/60 Hz
Live View Display	HDMI/VGA: 1/4/6/8/9/25
Recording Resolution	5MP Lite/1080P Lite/720P/D1
Decoding Capability	Analog: 8 x 5MP Lite@6 , 8 x 1080P Lite@12 IP: 1 x 8MP@30 , 2 x 4MP@30 , 4 x 1080P@30
Two-way Audio	1-ch , RCA (Using the audio input and output)
Incoming Bandwidth	40Mbps (up to 56Mbps after all analog channel conversion)
Outgoing Bandwidth	64Mbps
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface	1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USB	Rear panel: 2 × USB2.0
Power Supply	DC 12 V/2 A
Power Consumption (without HDD)	≤ 10W
Weight (without HDD)	≤1.1 Kg ( 2.42lb )
Dimensions	260mm ×226mm× 47mm (10.2" × 8.9"×1.8")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
Case	1U
