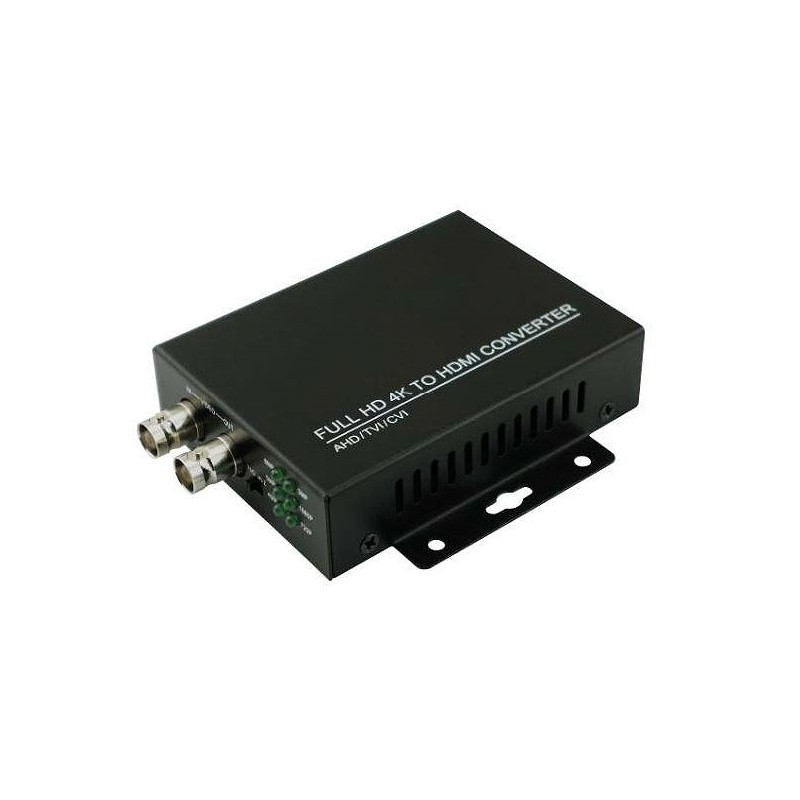

W-HDA-HDMI-100 4K CVI/TVI/AHD+CVBS TO 4 HDMI MONITORS
Click to enlarge

W-HDA-HDMI-100 4K CVI/TVI/AHD+CVBS TO 4 HDMI MONITORS

SKU: W-HDA-HDMI-100

4K CVI/TVI/AHD+CVBS TO 4 HDMI MONITORS

Add to wishlist
Add to compare
10 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • Support up to AHD 8MP, TVI 8MP, CVI 8MP test
  • CVI/TVI/AHD+CVBS to HDMI, HDMI output 1080P
  • Connect HD Monitor, HD coaxial output HDMI Input Display simultaneous
  • One channel AHD/TVI/CVI/CVBS loop out
  • Auto recognition 720P/1080P/3MP/4MP/5MP/8MP resolution, indicator visual display

Download

Product Manual

No related firmware found.
Additional information
Input Port

One channel CVI/TVI/AHD/CVBS BNC input

Output Port

One Channel CVI/TVI/AHD/CVBS BNC output ，One channel HDMI output

Cable length

500~700meters

,

Different resolution

,

different transmission distance

External power supply

DC 5V（1A）

Working Humidity

30%-90%

Dimension/Weight

109mm x 94mm x 25mm / 0.18kg
