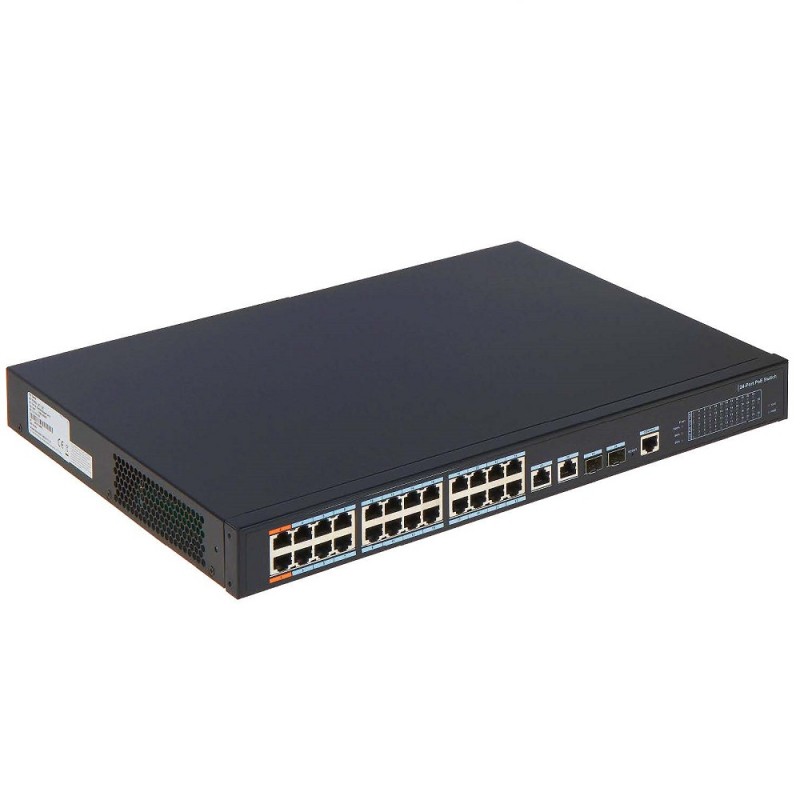

POE-SW24P-2G-240 24 PORT POE SWITCH
Click to enlarge

POE-SW24P-2G-240 24 PORT POE SWITCH

SKU: POE-SW24P-2G-240

24 PORT POE SWITCH

Add to wishlist
Add to compare
12 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • Layer 2 management PoE switch
  • Supports PoE, PoE+, and Hi-PoE (use with PFT1300 PoE Extender)
  • 240 W PoE Budget
  • 250 m (820 ft) PoE Transmission
  • PoE management, PoE Setting/Event Statistics/Green PoE
  • Search and upgrade via Configuration Tool
  • High lightning protection design
  • Non-blocking video transmission

Download

Product Manual

No related firmware found.
Additional information
Ethernet Ports

Two (2) 10/100/1000 Base-T (Combo Port) Two (2) 1000 Base-X (Combo Port) 24 x 10/100 Base-T Ports (PoE Power Supply)

PoE Protocol

PoE (IEEE802.3af)

,

PoE+ (IEEE802.3at)

,

Hi-PoE

Switching Capacity

8.8 Gbps

Power

100 to 240 VAC

Lightning Protection

Common Mode: 4 KV Differential Mode: 2 V

Dimensions (W x D x H)

440.0 mm x 300.0 mm x 44.0 mm (17.32 in. x 11.81 in. x 1.73 in.)

Weight

3.51 kg (7.74 lb)

Safety Certifications

EN 60950-1:2006+A11:2009+A1:2010+A12:2001+A2:2013 UL 60950-1 + CAN/CSA C22.2 No. 60950-1-07

Electromagnetic Compatibility (EMC)

FCC CFR 47 Part 15 subpart B EN 50130-4:2011+A1:2014, EN 55024:2010+A1:2015, EN 55032:2015, EN 6100-3-2:2014, EN 61000-3-3:2013

PoE Budget

240 W

Long Distance Mode

Power and Data Transmission Distance up to 250 m (820.21 ft)

Network Management

Web (HTTP and HTTPS Protocols), SNMP V1/V2C/V3

PoE Power Consumption

Ports 1 and 2: Hi-PoE (60 W)

,

PoE+

,

PoE Maximum per Port: ≤ 30 W

Total Power Consumption

≤ 240 W
