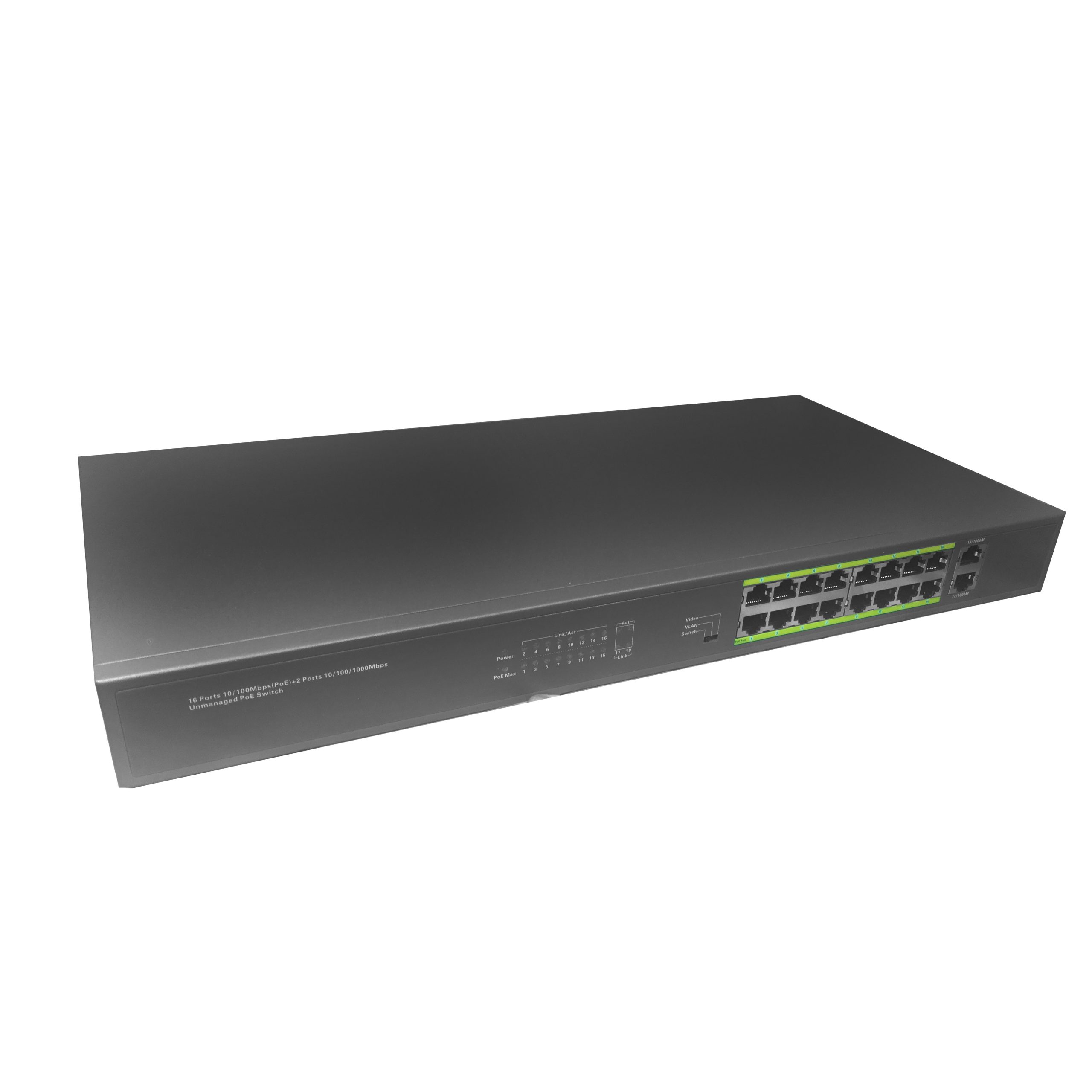

POE-SW16P-2G-150 16 Ports PoE switch with 2 Gigabit Uplink

Name: POE-SW16P-2G-150 16 Ports PoE switch with 2 Gigabit Uplink
SKU: POE-SW16P-2G-150

SKU: POE-SW16P-2G-150

16 Ports PoE switch with 2 Gigabit Uplink

Auto detect powered device(PD)

Safe and reliable power to most of PoE end device

Vian supported

Max 30W for each PoE port

2 Gigabit Uplink with Big buffer

19 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

This 16 ports PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable.
POE-SW16P-2G-150 series can be used for any 8 ports 10/1 00Mbps link with gigabit Uplink with your services.
In addition, the PoE switch automatically determines PoE requirements, speed, duplex. Easy to operate and reliable. It supports each port Max 30W, with Vian features.
This PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access points, IP phones, office access control systems, and other PD devices and offers a line of high-quality products that provide a total solution for Ethernet application in different environments.

Product Manual

No related firmware found.

Additional information

PoE Port Count	16 ports
PoE power	Wiring: Data & power provided over pairs 1/2(+) and 3/6(-). Cable: UPT cat. 5 or higher
Processing types	Store-and-forward Half-duplex back pressure and IEEE 802. 3x full-duplex flow control
Buffer memory	5.36M
MAC Address	4k
Backplane Bandwidth	7.2Gbps
PoE Budget	150W
Network latency	Less than 20us for 64-byte frames in Store-and forward mode
Power Input	AC110–260V
Casing	Metal case
Dimension	282x178x44mm (LxWxH)
Weight	1.4KG
Installation	Desktop
