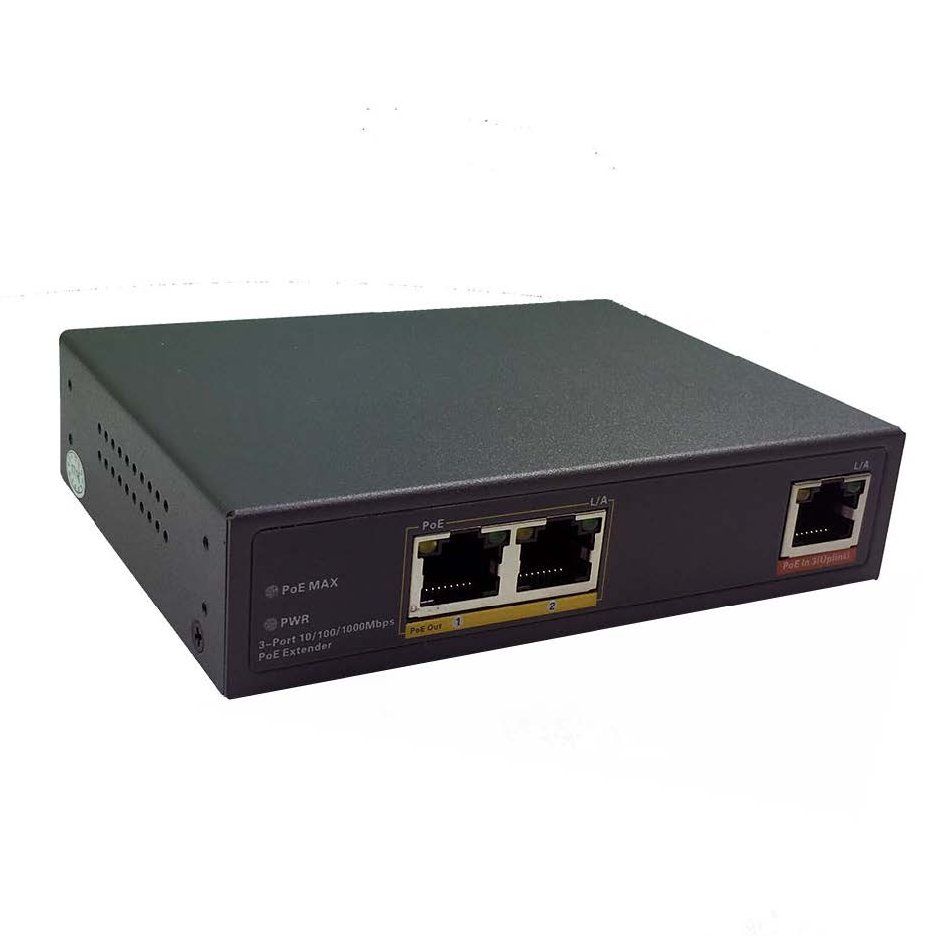

POE-SP102G 2-PORT 10/100/1000M POE SPLITTER REPEATER

Name: POE-SP102G 2-PORT 10/100/1000M POE SPLITTER REPEATER
SKU: POE-SP102G

SKU: POE-SP102G

2-PORT 10/100/1000M POE SPLITTER REPEATER

60W Max POE input; 30W Max POE output

LED Indicator; Store and Forward

IEEE802.3 standards

0.6Gbps bandwidth; 0.45Mbps packet forwarding rate

10Gbps bandwidth; 7.44Mbps packet forwarding rate

10 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

This 2-port10/100/1000M Desktop PoE repeater Ethernet switch provides an easier installation
way for PoE devices, such as IP cameras, wireless AP, VoIP. It supports 2 10/100/1000Mbps
PSE (Power Source Equipment) ports and 1 10/100/1000Mbps PD (Power Devices) ports.
There is no need to use the power adaptor, as this PoE switch can work through receiving power
other PoE switch or equipment by PD port, and the PSE ports can supply the power to the other
PD devices like PoE IP cameras, wireless AP, VoIP. The max transmission distance is 100
meters with Cat5 cables.
Plug & play design make the installation quite easy, users do not need any configuration, which
make this PoE switch a very good choice for IP cameras, wireless AP, VoIP users.

Product Manual

No related firmware found.

Additional information

PoE Port Count	2 ports
LED Indicator	PWR/PoE MAX, PoE, Link/Act
Processing Types	Store and Forward
Transmission Mode	IEEE802.3X full-duplex and Backpressure half-duplex
Bandwidth	6Gbps
Packet Forwarding Rate	4.46Mpps
MAC Address	2K
Power Input	POE Input
Cables	UTP cat.5 or abover
size	118mm(L)85mm(W)28mm(H)
