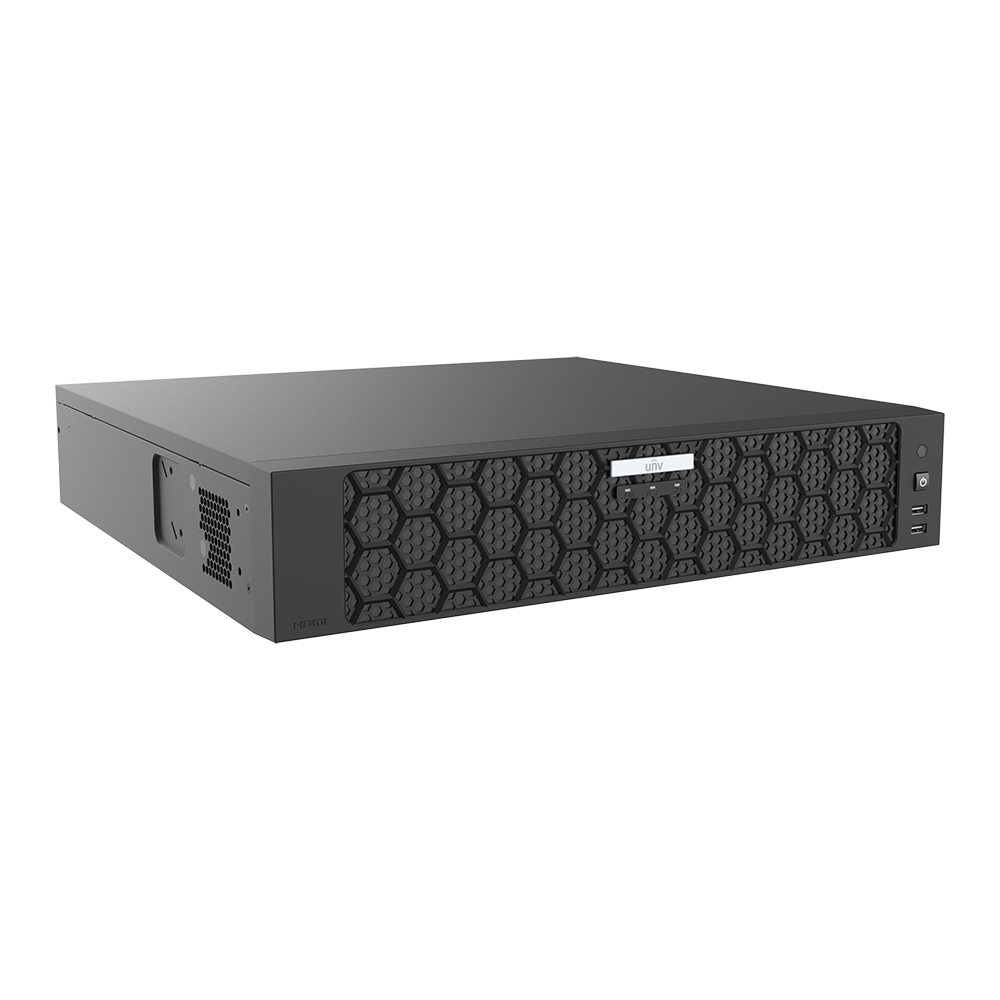

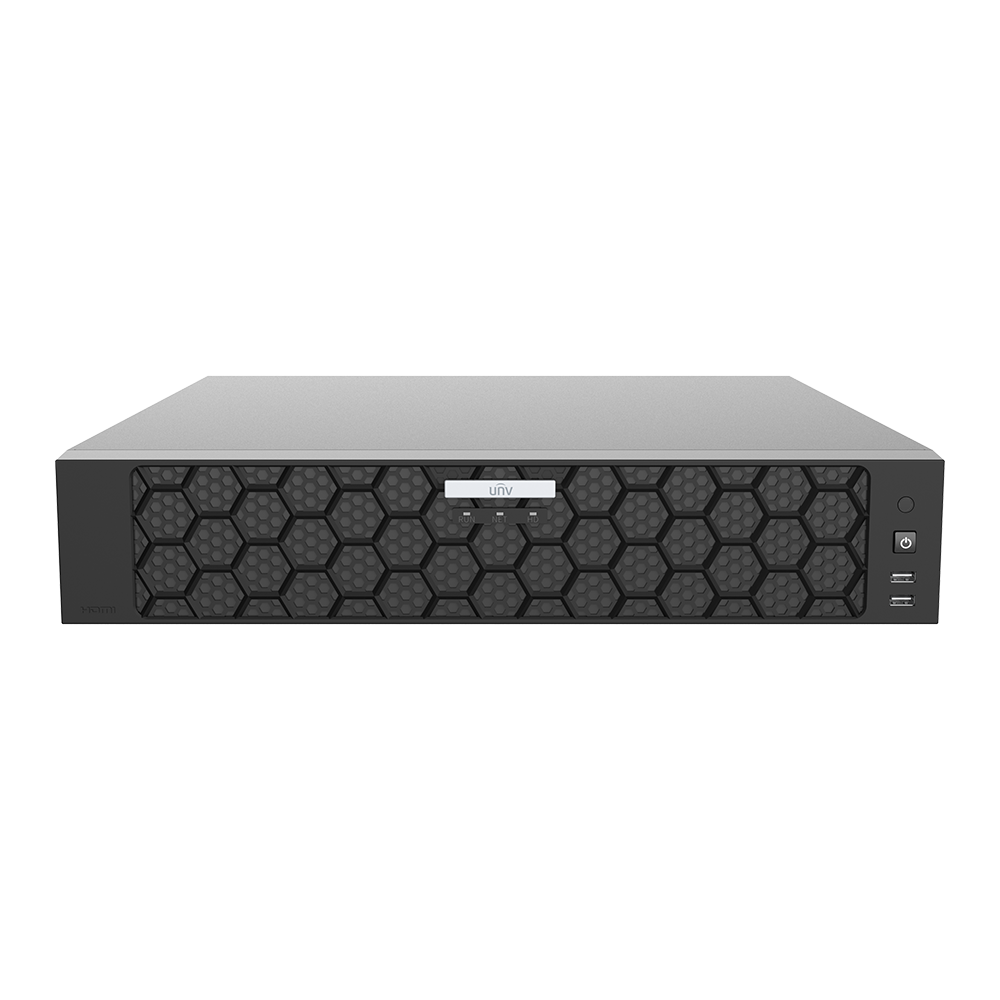

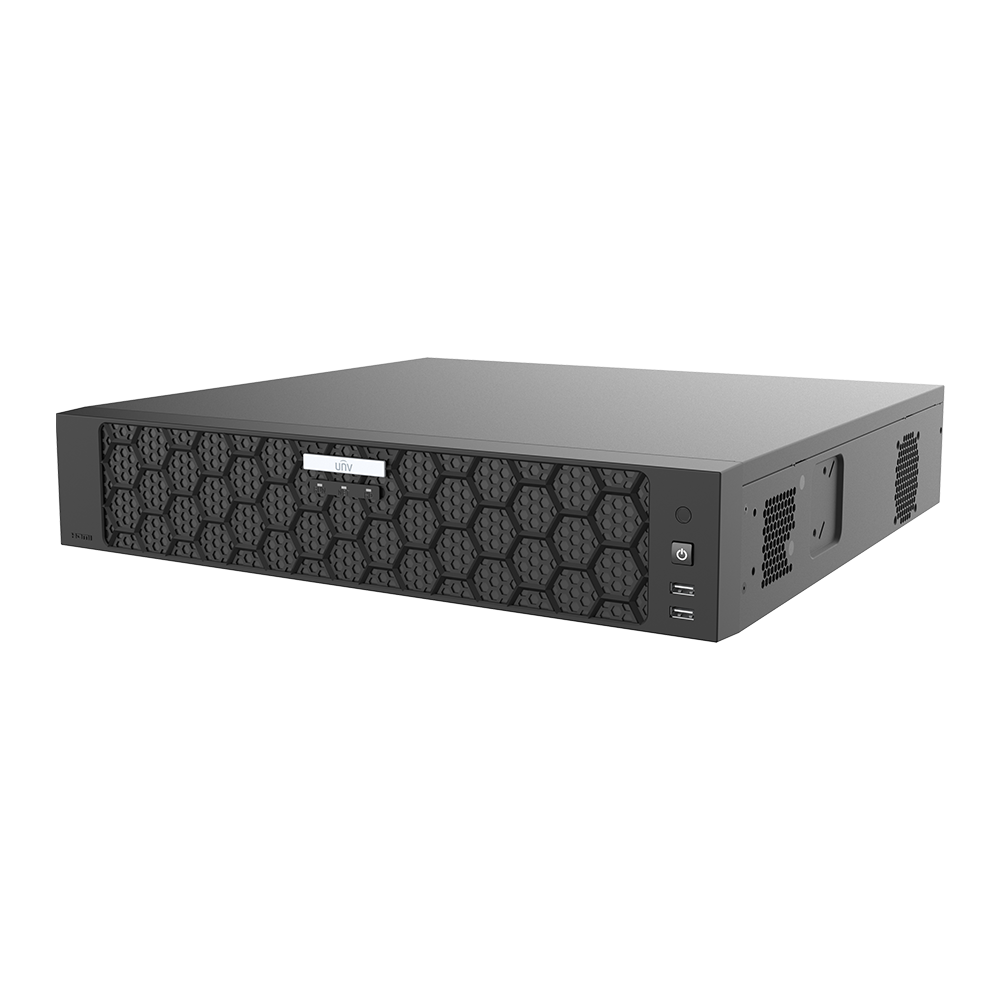

NVR508-32B 8 HDDs 32-ch 2U Network Video Recorder

Name: NVR508-32B 8 HDDs 32-ch 2U Network Video Recorder
Brand: UNV
SKU: NVR508-32B

SKU: NVR508-32B

8 HDDs 32-ch 2U Network Video Recorder

17 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Support Ultra 265/H.265/H.264 video formats
16/32/64-channel input
VGA and HDMI independent output (NVR508-64B simultaneous output by default , independent output configurable)
Up to 16 Megapixels resolution recording
Support N+1 Hot spare
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Product Manual

No related firmware found.

Additional information

Channels	32 Channel
HDD Support	8 HDD
Built-in PoE Ports	N/A
Decoding Format	Ultra 265 , H.265 , H.264
Decoding Capability	Ultra 265/H.265: 2 x 16MP@30 , 2 x 12MP@30 , 4 x 4K@30 , 6 x 5MP@30 , 8 x 4MP@30 , 10 x 3MP@30 , 16 x 1080P@30 , 32 x 960P@25 H.264: 2 x 16MP(4800*2688)@30 , 2 x 12MP@30 , 2 x 4K@30 , 4 x 5MP@30 , 6 x 4MP@30 , 8 x 3MP@30 , 14 x 1080P@30 , 28 x 960P@25 , 30 x 720P@30 , 32 x D1
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width , For VGA/HDMI independent output , the VGA live video is output by default. To output the highest resolution video from the HDMI port , please clear the VGA video on the preview page.
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	160 Mbps
Remote Users	128
Recording Resolution	16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 2 × USB2.0 , Rear panel: 1 × USB3.0
Power Supply	AC 100 to 240 V
RS485	1
RS232	N/A
Power Switch	Support
Power Consumption (without HDD)	≤ 25W
Weight (without HDD)	≤ 5.5Kg (12.13lb)
Dimensions	442mm × 426mm × 89mm (17.4"×16.8"×3.5")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
Case	2U
