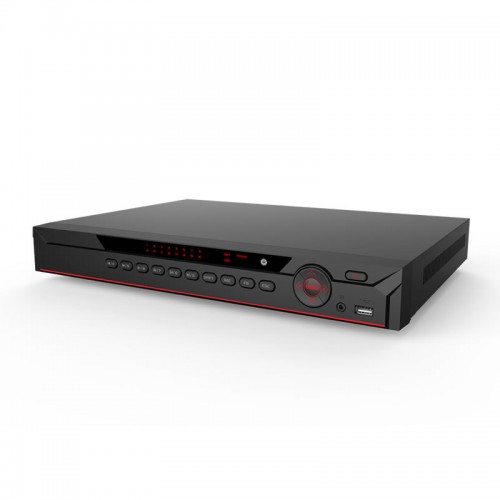

NVR422HP6-16-4K 16 CHANNEL 1U 16POE 4K&H.265 LITE NETWORK VIDEO RECORDER

SKU: NVR422HP6-16-4K

16 CHANNEL 1U 16POE 4K&H.265 LITE NETWORK VIDEO RECORDER

10 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Product Manual

Title	Description	Download
NVR4XX	NVR421HP4-4-4K/ NVR422H-16-4K/ NVR422HP8-8-4K/ NVR422HP6-16-4K/ NVR424H-32-4K/ NVR424HP6-16-4K/ NVR424HP6-32-4K	NVR4XXX-4KS2.201126

Additional information

Main Processor	Quad-core embedded processor
Operating System	Embedded LINUX
IP Camera Input	16 Channel
Two-way Talk	1 Channel Input , 1 Channel Output , RCA
Decoding Capacity	2ch@4K 30fps, 8ch@1080P 30fps
Multi-screen Display	16ch: 1/4/8/9/16
OSD	Camera title, Time, Camera lock, Motion detection, Recording
Interface Network	1 RJ-45 Port (10/100/1000Mbps)
Ethernet Port	1 Independent 1000Mbps Ethernet Port
Built-in PoE Ports	16
Compression	H.265/ H.264
Resolution	8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
Record Rate	200Mbps
Bit Rate	16Kbps ~ 20Mbps Per Channel
USB	2 ports(1 USB2.0, 1 USB3.0)
RS232	1 Channel
Playback	1/4/9/16
Power	100 to 240 VAC
Power Consumption	NVR: < 13.2W(without HDD) PoE: Max 25.5w for single port, 130w in total
Dimensions	1U, 375mm×327.5mm×53mm (14.8" x 12.9" x2.1")
Net Weight	2.6kg (5.7 lb) (without HDD)
Gross Weight	4kg(8.8 lb)(without HDD)
CE	EN55032, EN55024, EN50130-4, EN60950-1
FCC	Part 15 Subpart B, ANSI C63.4-2014
Case	1U
