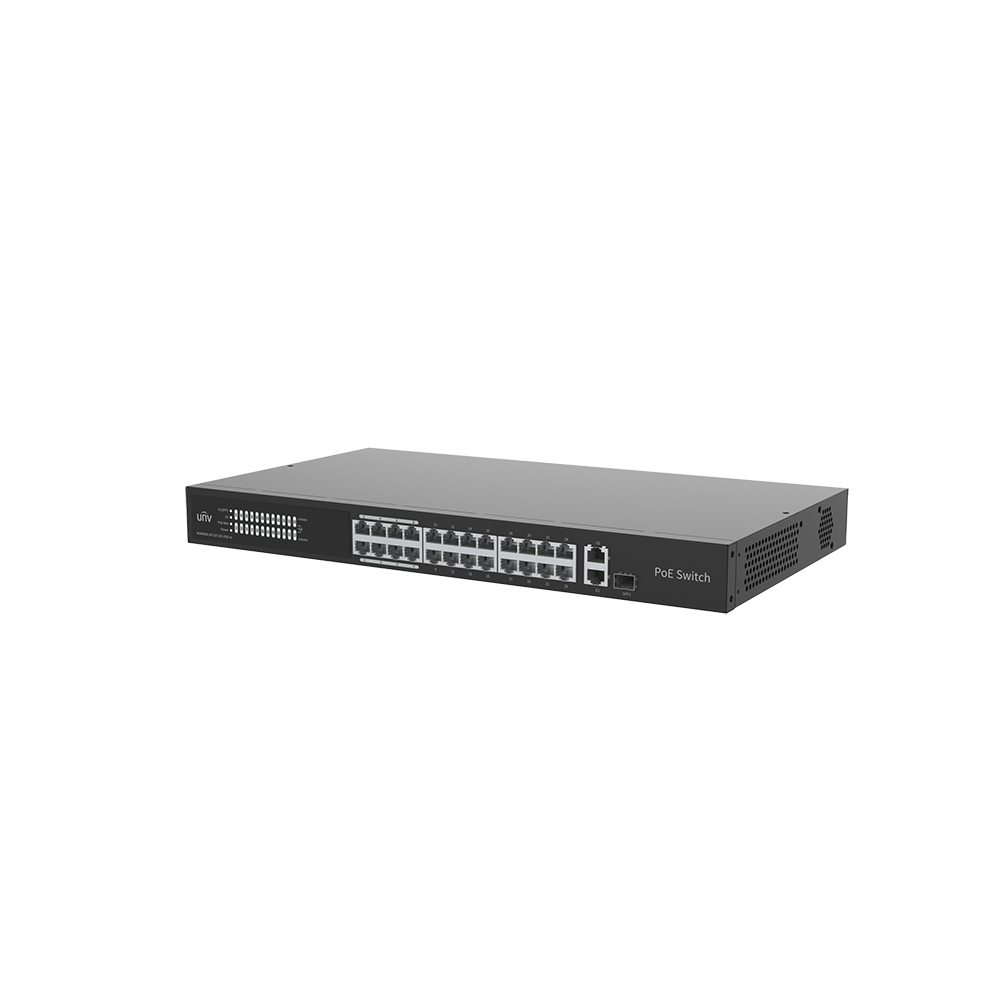

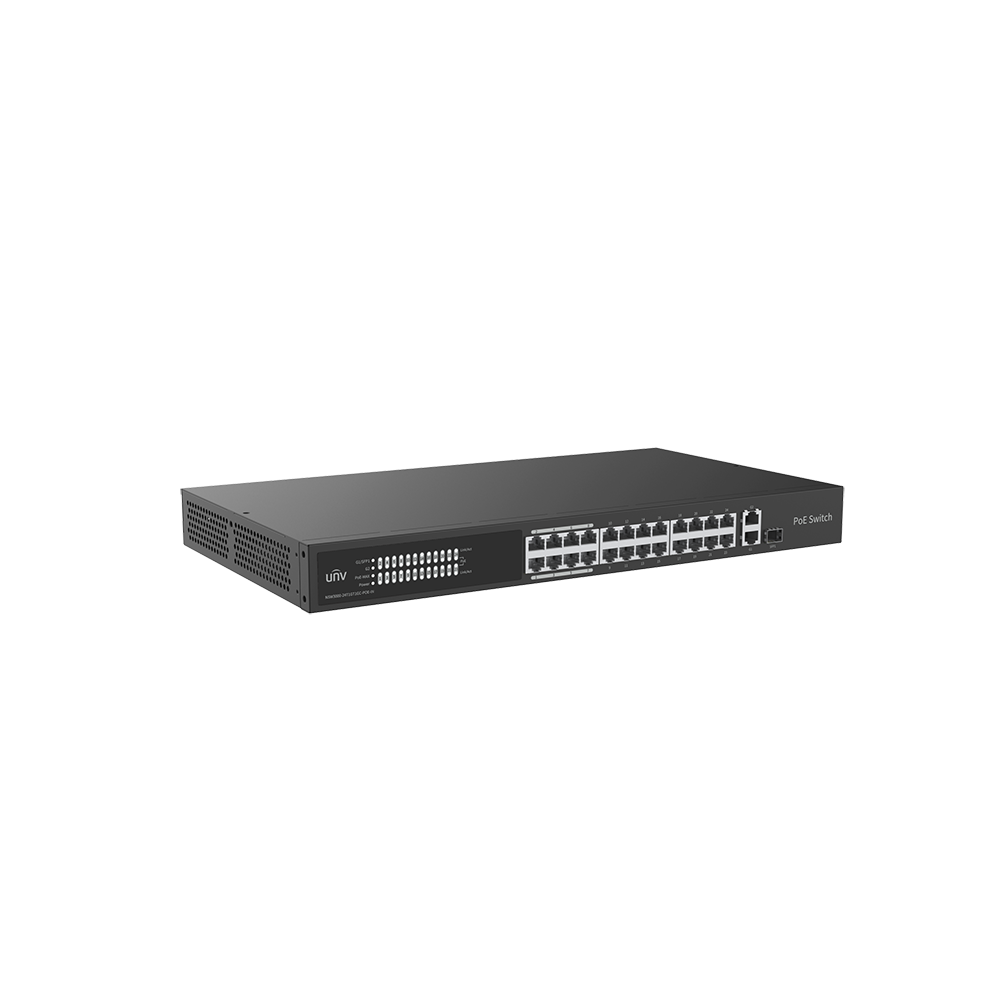

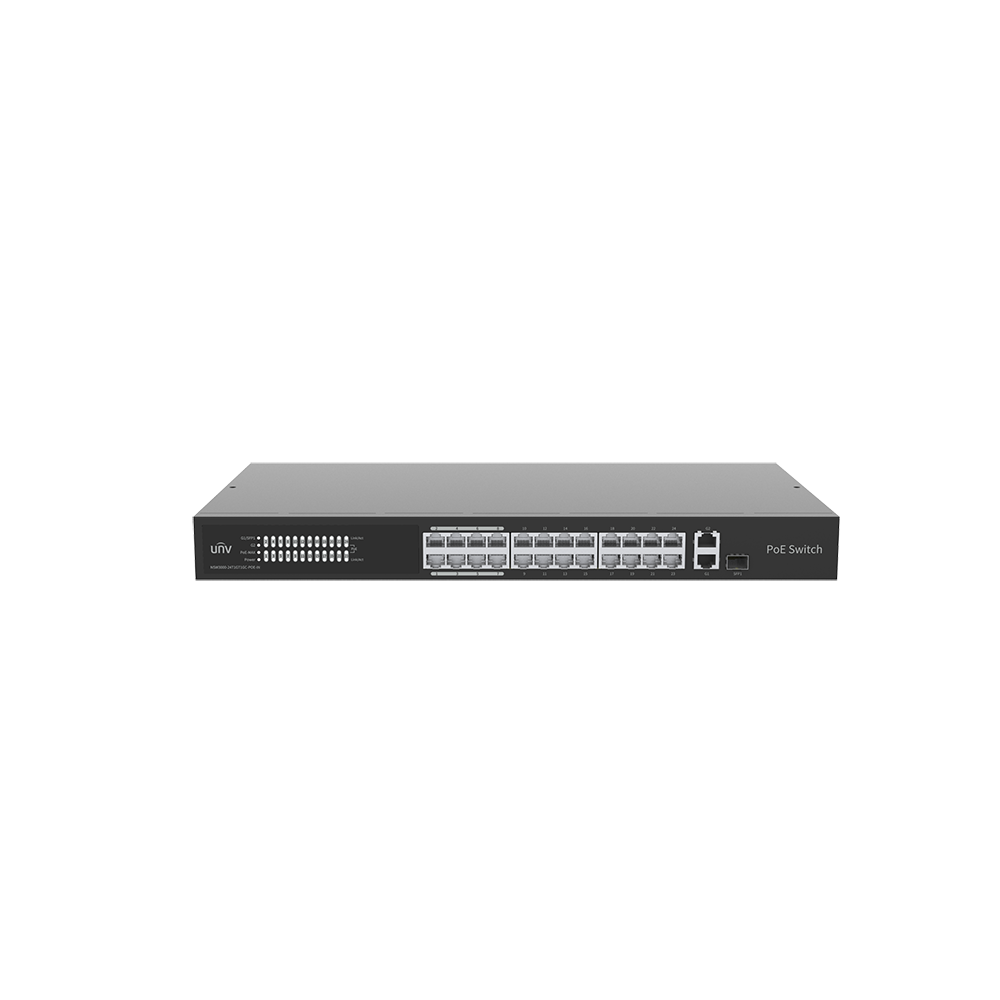

NSW3000-24T1GT1GC-POE-IN UNV Ethernet 24 Port 370W Cloud Managed Ethernet PoE Switch

SKU: NSW3000-24T1GT1GC-POE-IN

UNV Ethernet 24 Port 370W Cloud Managed Ethernet PoE Switch

18 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • Supports unified configuration, management, and search on the software, convenient for rapid operation and maintenance of multiple devices; supports automatically discovering the connected video devices and generating a network topology on the software.
  • Supports Web login, and device configuration and management on the Web interface; supports visiting the cloud by scanning the QR code, and allows to view the device status in real time on the app, and remotely restart the PoE power supply.
  • Supports PoE power supply and allows to view the power; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
  • Supports the extend mode for up to 250m communication range and 10Mbps full-duplex port rate.
  • Allows to report port abnormal alarms to the software for realtime monitoring.
  • Supports port priority. The packets received by the priority port will be forwarded first and the priority port will be powered first when the PoE power supply is full.
  • All metal casing, secure and reliable.

Download

Product Manual

No related firmware found.
Additional information
Ports Type

24 x 10/100Mbps POE port (RJ45) + 1 x Gigabit port (RJ45) + 1 x Gigabit Combo

Switching capacity

8.8 Gbps

Packet Buffer

4 M bit

MAC

16K

Forwarding performance

6.55Mpps

Prior Ports

1 to 8

Standards

IEEE802.3

,

IEEE802.3u

,

IEEE802.3z

,

IEEE802.3ab

,

IEEE802.3x

,

IEEE802.3af

,

IEEE802.3at

,

IEEE802.3az

Power Supply

AC: 100 to 240V

,

50/60Hz

PoE Standard

IEEE 802.3af

,

IEEE 802.3 at

PoE Mode

ModeA (1236)

,

ModeB (4578)

Max.PoE Power

Maximum total power: 370W Maximum PoE power for single port: 30W

Max.Power

385W

Cooling Fans

1

Dimensions (W×D×H)

440mm x 244.8mm x 44mm

Operating Temperature

0°C to 40°C (32°F to 104°F)

Operating Humidity

5% to 90% RH

,

noncondensing

Weight

2.9kg
