NR710-32

Please Log in For Pricing

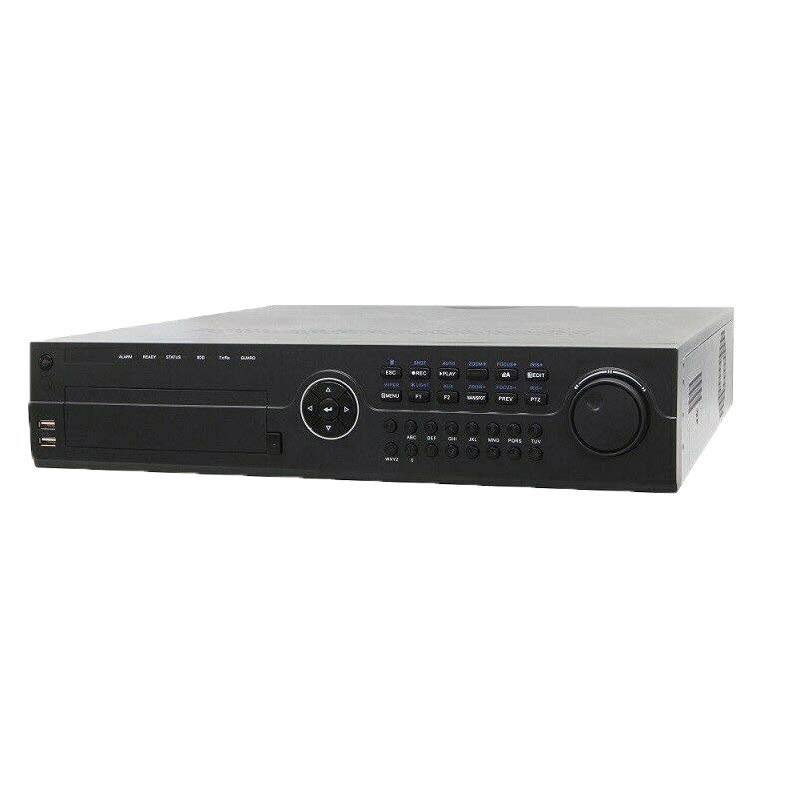

32 Channel 320M 2U 4K Super Network Video Recorder

Features

Description

  • 32 Channel
  • No HDD included
  • 2U Chassis
  • 2x HDMI, 2x VGA
  • Third-party network cameras supported
  • Up to 12 Megapixels resolution recording
  • Support 2-ch HDMI, 2-ch VGA, HMDI1 at up to 4K(3840×2160) resolution
  • Up to 32 IP cameras can be connected with 320M incoming bandwidth
  • Up to 8 SATA interfaces
  • Up to 48 TB HDD Storage
  • Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable
  • Support various VCA detection alarm and VCA search
  • Support H.265/H.264/MPEG4 video formats
Specifications
Decoding
Synchronous Playback 16-ch
Live View / Playback Resolution 6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 8-ch@720P,6-ch@1080P
Decoding format H.265/H.264/MPEG4
Disk array
Array type RAID0, RAID1, RAID5, RAID10
Number of arrays 4
External Interface
Serial Interface 1 RS-485 (half-duplex), 1 RS-232
USB Interface 1 × USB 2.0 and 1 × USB 3.0
Network interface (video recorder) 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Alarm in/out 16/4
Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ)
General
Power Supply DC12V, PoE (802.3af)
Dimensions Φ70mm× 66mm× 155mm
Weight 0.42Kg
Consumption (without hard disks) ≤ 10W
Chassis 380 chassis
Power ≤80 W
Working temperature (video recorder) -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working humidity (video recorder) 10 % ~ 90 %
Hard disk
SATA 2 SATA interface for 2 HDDs
Capacity Up to 4TB for each disk
eSATA (optional) 1 eSATA interface
Network(NVR)
Remote Connections 128
Incoming bandwidth 50Mbps
Outgoing bandwidth 80Mbps
Video/Audio input
IP Video Input 8-ch
Video/Audio output
Recording resolution 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio output(video recorder) 1-ch, RCA (Linear, 1kΩ)
HDMI output resolution 1-ch, resolution:1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
VGA output resolution 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
