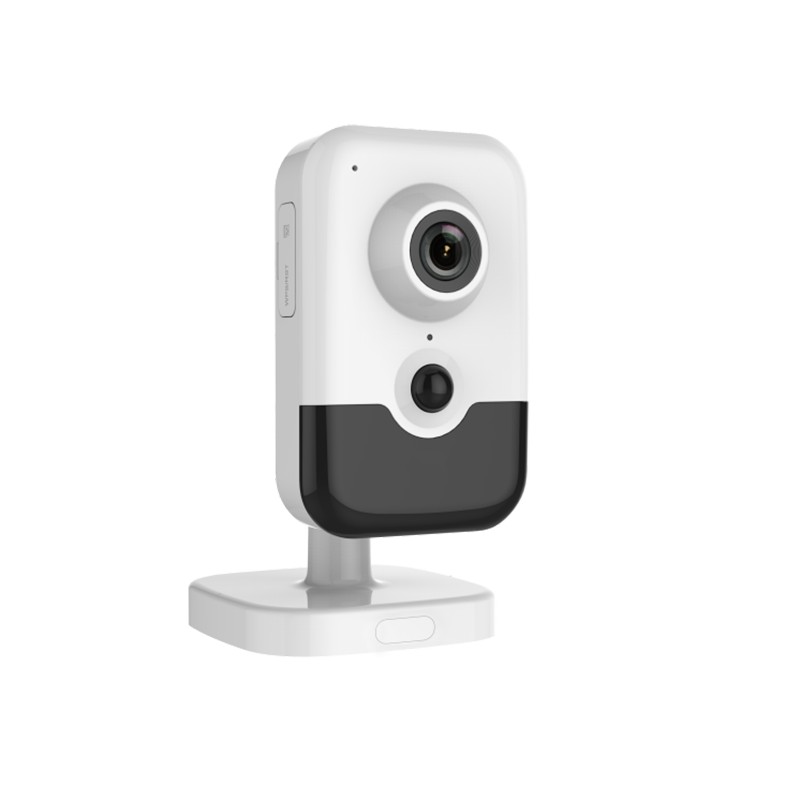

NC326-CU 6 MP IR Fixed Cube Network Camera
Click to enlarge

NC326-CU 6 MP IR Fixed Cube Network Camera

SKU: NC326-CU

6 MP IR Fixed Cube Network Camera

Add to wishlist
Add to compare
20 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 3072 x 2048@20fps
  • IR: up to 10 m
  • PIR: 10 m
  • H.265+, H.265, H.264+, H.264
  • 120dB WDR
  • Built-in MicroSD/SDHC/SDXC slot, up to 128G
  • Built-in Microphone and Speaker, supports two-way audio
  • Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0,AGC ON), 0 lux with IR

Download

Product Manual

No related firmware found.
Additional information
Camera Resolutions

Camera Style

Lens Type

Image Sensor

1/2.9" Progressive Scan CMOS

Minimum Illumination

Color: 0.01 Lux@(F1.2

,

AGC ON)

,

0.028 lux@(F2.0

,

AGC ON)

,

0 lux with IR

Shutter Speed

1/3 s to 1/100000 s

3‐Axis Adjustment

Pan: 0° to 360°

,

tilt: 0° to 90°

,

rotate: 0° to 360°

Focal length

2.8mm

Lens Mount

M12

IR Range

Up to 10 m

Wavelength

850nm

Video Compression

Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264

Video Bit Rate

256 Kbps to 16 Mbps

Audio

Power

12VDC±25%

,

PoE(802.3af

,

class3)

Power Consumption and Current

12 VDC, 0.5A, max. 6W, Φ 5.5 mm coaxial plug power PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W

Camera Material

Plastic

Package Dimension

102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")

With Package Weight

Camera: Approx.128g(0.3lb)
