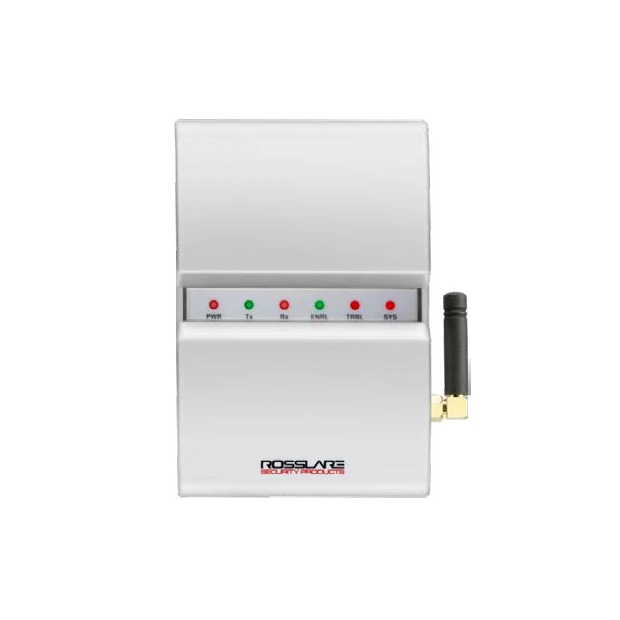

MD-W11GR WIRELESS KIT W/24 V POWER SUPPLY

SKU: MD-W11GR

Call for price

Wireless Access Control Door Interface

Add to wishlist

Add to compare

11 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

MAIN FEATURES

Maximum range of 70 meters (230 ft) indoors and up to 300 meters (985 ft) outdoors with an external fixed antenna, depending on RF related environmental conditions
Overall response time of 500 ms when used with Rosslare’s AC-225 controller and readers. Response time depends on RF link quality, the number of doors used, and the controller and reader’s response time.
Built-in charger for up to 7 Ah backup battery on the remote unit
Compatible with all of Rosslare’s readers and with many third-party standard Wiegand readers
Separate sets of terminals for door and controller connections
Case and wall tamper protection. Tamper events from either Near or Far sides are reported using a tamper output on the Near unit

PROFESSIONAL GRADE FEATURES

Transfers proximity card information as well as LED control, reader tamper, lock relay commands, and REX and Door Monitor events between the coupled units
The Near unit is powered using the controller’s power supply. The Far unit is powered by a local wall transformer. A built-in charger provides a power backup option
Protected housing with space for Rosslare’s BT- 04, 12 VDC 800 mAh, Sealed Lead-Acid battery. Suitable for Indoor use
Available in HR-869 MHz and GR-433 MHz bands

Download

Product Manual

MD-W11-Datasheet

No related firmware found.

Additional information

Operating Voltage Range	Far unit: 12–24 VAC, 15–24 VDC Near unit: 13.8 VDC from controller's power supply/wall adapter
Input Current, Max	Standby: 70 mA Maximum: 160 mA
Battery Charger	12 V Sealed Lead-Acid, up to 7 Ah (far unit only)
Maximum Range	Indoors: 70 m (230 ft), Outdoors: 300 m (985 ft) Range depends on RF related environmental conditions
Response Time	Up to 500 ms with Rosslare’s access controllers and readers Response time depends on RF link quality, number of doors used, and controller and reader response time
Output Relays	Far unit: One 5 A Form-C relay Near unit: Two 1 A Form-C relays
Output Types	Dry contact and open collector
Communications	Bi-directional RF, narrow band. Fast anti-collision rolling code protocol with data protection. Available in HR-869 MHz and GR 433 MHz bands, with four selectable channels
Data Transfer	Card and PIN, lock commands, REX, door monitor, LED control and reader tamper
Supervisory & Alerts	Full supervision over the remote unit Alert outputs at the Near unit for supervision failure, system tamper, reader tamper, low battery, and power failure
Supported Card transmission formats	Wiegand 26-, 32- ,34- , and 40-Bit, 26-Bit with Facility code, 32-Bit Reverse
Supported PIN code formats	Single key Wiegand 6-Bit (Rosslare format with parity), Single key Wiegand 8-Bit, 4 keys binary Wiegand 26-Bit, 1 to 5 keys, Wiegand 26-Bit, 6 keys BCD and parity bits
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Operating environment	Indoor use
Dimensions	13 x 8.7 x 3.2 cm (5.1 x 3.42 x 1.26 in.)
Weight	155 g (5.5 oz)
SYSTEM COMPONENTS	Rosslare’s Access Control Panels Rosslare’s 26-Bit readers
PRODUCT WARRANTY	2-year Limited Product Warranty
