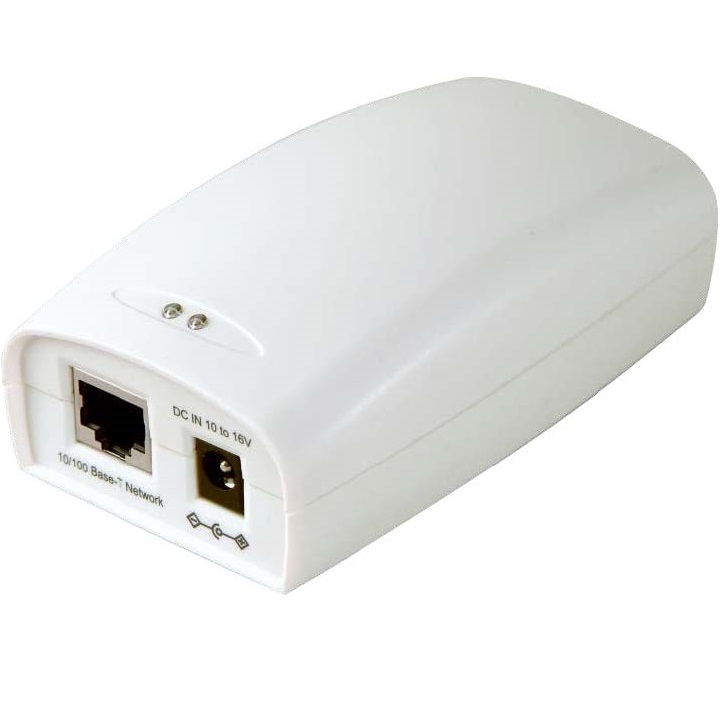

MD-N32 RS-232 to TCP/IP Gateway for Access Control Panels
Click to enlarge

MD-N32 RS-232 to TCP/IP Gateway for Access Control Panels

ROSSLARE
SKU: MD-N32

Call for price

RS-232 to TCP/IP Gateway for Access Control Panels

Add to wishlist
Add to compare
11 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

MAIN FEATURES

  • Universal RS-232 to TCP/IP gateway for general use
  • Supports DHCP dynamic IP addressing
  • +12 VDC jack power input connector
  • RS-232 speed from 1200 bps to 230.4 Kbps
  • Bi-directional conversion of RS-232 to TCP/IP
  • Powered by external 12 V wall adapter type power supply

PROFESSIONAL GRADE FEATURES

  • Enables Ethernet networking for AC-115 and AC-215, AC-225, or AC-425 panels
  • Configurable using dedicated software utility or directly using AxTraxNG software, AYC-W6500 as well as intrusion alarm panels AuraSys and HomeLogiX.

Download

Product Manual

No related firmware found.
Additional information
Input Power

12 VDC from power adapter

Power Consumption

Typical: 70 mA Maximum: 100 mA

LED

Green indicates network status Red indicates power supply

Hardware Protocols

TCP, UDP, IP, ARP, ICMP, Ethernet MAC

Network Interface

10/100 Base-T Ethernet (Auto-Detection) RJ-45 jack for LAN connection

Serial Port

D9 male connector RS-23

Data

1,4,6,7,8,9 –NC 2 – Rx 3 – Tx 5 – GND signal

MCU

8-bit MCU and 32K FLASH

Serial Line Format

8-N-1, 8-O-1, 8-E-1, 7-O-1, 7-E-1

Serial Flow Control

None, XON/XOFF

Transmission Speed

1200 bps ~ 230.4 Kbps

Operating Environment

Indoor use

Dimension

110 x 63 x 39 mm (4.3 x 2.5 x 1.5 in.)

Weight

92 g (3.25 oz.)

SYSTEM COMPONENTS

The MD-N32 is compatible With Rosslare's controllers AC-215, AC115, Fingerprint Reader AYC-W6500, as well as intrusion alarm panels AuraSys and HomeLogiX.

PRODUCT WARRANTY

2-Year Limited Product Warranty
