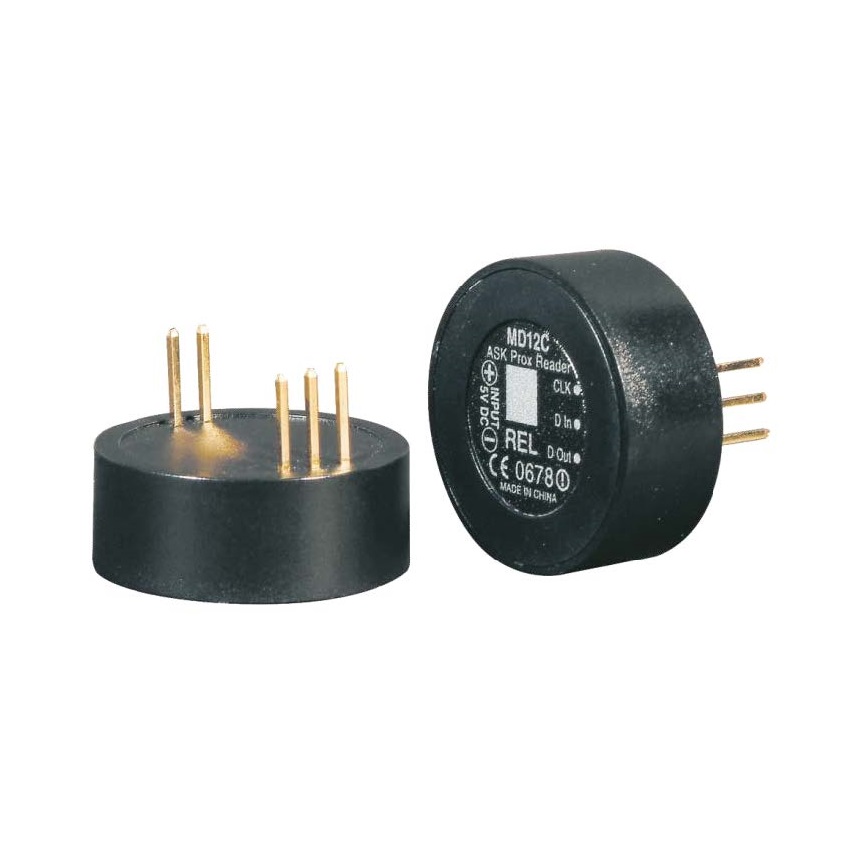

MD-12C/W OEM Proximity Reader Module with Wiegand & Clock/Data Output
Click to enlarge

MD-12C/W OEM Proximity Reader Module with Wiegand & Clock/Data Output

ROSSLARE
SKU: MD-12C/W

Call for price

OEM Proximity Reader Module with Wiegand & Clock/Data Output

Add to wishlist
Add to compare
18 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • Tiny footprint – 22 mm (0.43 in.) in diameter
  • Small height – 9.5 mm (0.37 in.)
  • Wiegand 26-Bit protocol (MD-12W)
  • Clock & Data output Rosslare format (MD-12C)
  • Direct mounting on PCB

Download

Product Manual

No related firmware found.
Additional information
Operating Voltage Range

4.5 to 5 VDC (from a linear type power supply)

Standby Input Current

36 mA

Operating Temperature

-31ºC to 63ºC (-25ºF to 145ºF)

Operating Humidity

0% to 95% (non-condensing)

Formats

MD-12C: Clock & Data MD-12W : Wiegand 26-Bit

Dimensions

Radius: 11 mm (0.43 in.); depth 9.5 mm (0.37 in.)

Weight

5 g (0.18 oz)

SYSTEM COMPONENT

The MD-12C/W is compatible with Rosslare’s MD-08 Wiegand 26-Bit to RS-232 converter and proximity cards.

PRODUCT WARRAN

5-Year Limited Product Warranty
