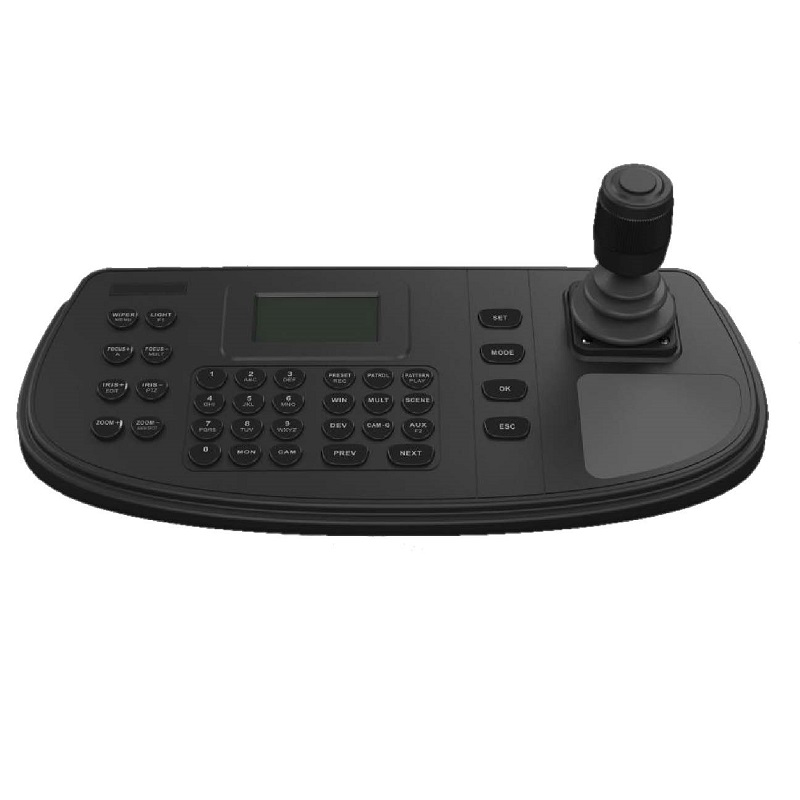

KB-1200KI Keyboard & Joystick Control

SKU: KB-1200KI

Keyboard & Joystick Control

15 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

128 x 64 screen
4-axis joystick
Connectable to the Multi-functional Video Center (MVC), Matrix Access Gateway (MAG), Video Wall Controller, Decoder, etc.; and shortcut operation of camera/camera groups switch on video wall
Connectable to dome and realize PTZ control and picture capture by joystick operation
Connectable to DVR via network or serial port, and operation of front panel buttons
16 user accounts management: 1 admin and 15 operators
System upgrade and import/export of configuration files by USB-flash disk
Captured pictures (FAT32) can be stored in U-flash disk
Network access and configuration by Web browser support; and up to 1000 devices can be managed in the keyboard operation mode

Product Manual

No related firmware found.

Additional information

LCD screen	128 x 64 pixel screen
Joystick	4-axis joystick
Control mode	Network , RS-232 , RS-422 , RS-485
Interface Network	1 RJ45 10M/100M self-adaptive Ethernet Interface
Serial interface	1 RS-232, 1 RS-422, 1 RS-485
USB interface	1 × USB 2.0
Power	DC 12V
Consumption	≤4.5 W
Working temperature	-10 to +55° C (14 to 131° F)
Working humidity	10% to 90%
Dimension	435 × 193 × 110 mm (17.1 × 7.6 × 4.3 inch)
Weight	≤ 1 kg (2.2 lb)
