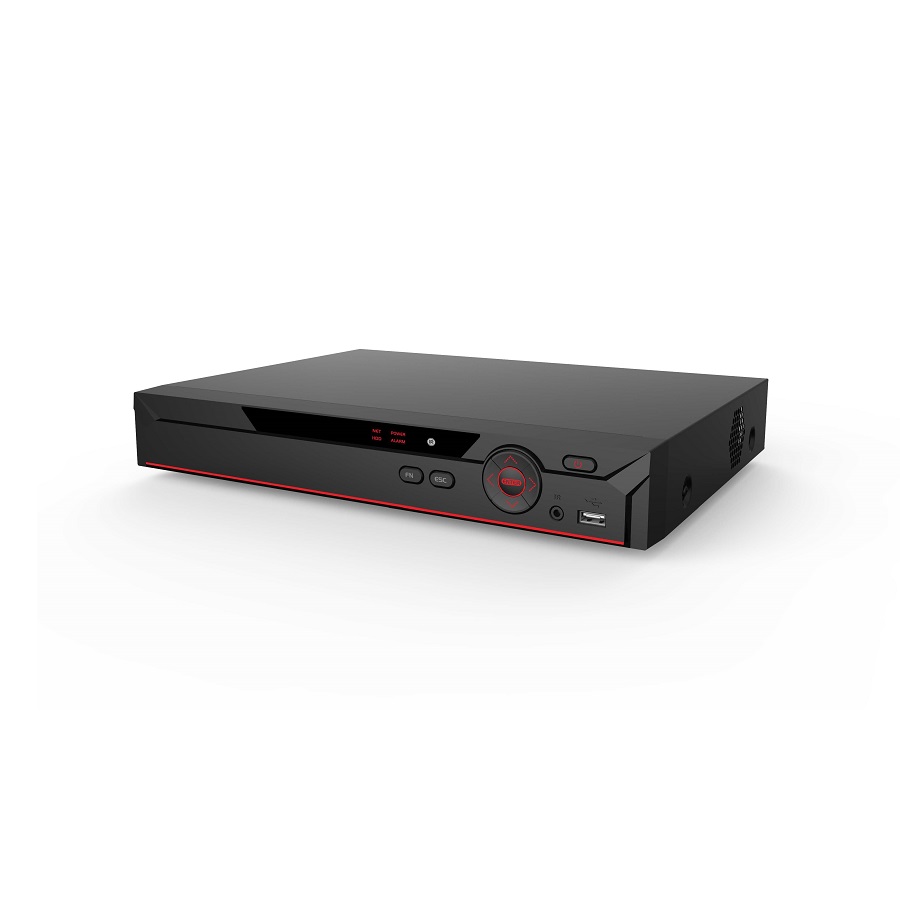

iXVR521H-16 16 Channel Penta-brid 1080P Mini 1U Digital Video Recorder

SKU: iXVR521H-16

16 Channel Penta-brid 1080P Mini 1U Digital Video Recorder

11 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

H.265+/H.265 dual-stream video compression
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 24 channels IP camera inputs, each channel up to 6MP; Max 96 Mbps Incoming Bandwidth
Perimeter Protection and SMD Plus

Product Manual

Title	Description	Download
iXVR521-16	iXVR521-16	XVR521-16_200918

Additional information

Channels	16 Channel
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Analog Camera Input	16 Channel , BNC
HDD Support	1 HDD
HDCVI Camera	5MP , 4MP , 1080P@25/30fps , 720P@50/60fps , 720P@25/30fps
AHD Camera	5MP , 4MP , 1080P@25/30 , 720P@25/30fps
IP Camera Input	16+8 Channel, each channel up to 6MP
Compression	H.265+/H.265/H.264+/H.264
Bit Rate	32Kbps ~ 6144Kbps Per Channel
Record Mode	Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Audio Bit Rate	64Kbps Per Channel
Resolution	HDMI:16CH: 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Playback	16CH: 1/4/9/16
Internal HDD	1 SATA Port, up to 10TB capacity
USB/RS485	USB: 16CH:1 USB 2.0 , 1 USB 3.0 RS485: 1 Port, for PTZ Control
Power	DC 12V
Power Consumption (without HDD)	16CH: ＜15W
Case	1U
Dimensions	Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")
Net Weight (without HDD)	16CH: 1.3kg (2.9 lb)
Gross Weight	16CH: 2kg (4.4 lb)
Installation	Desktop installation
Certifications	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
