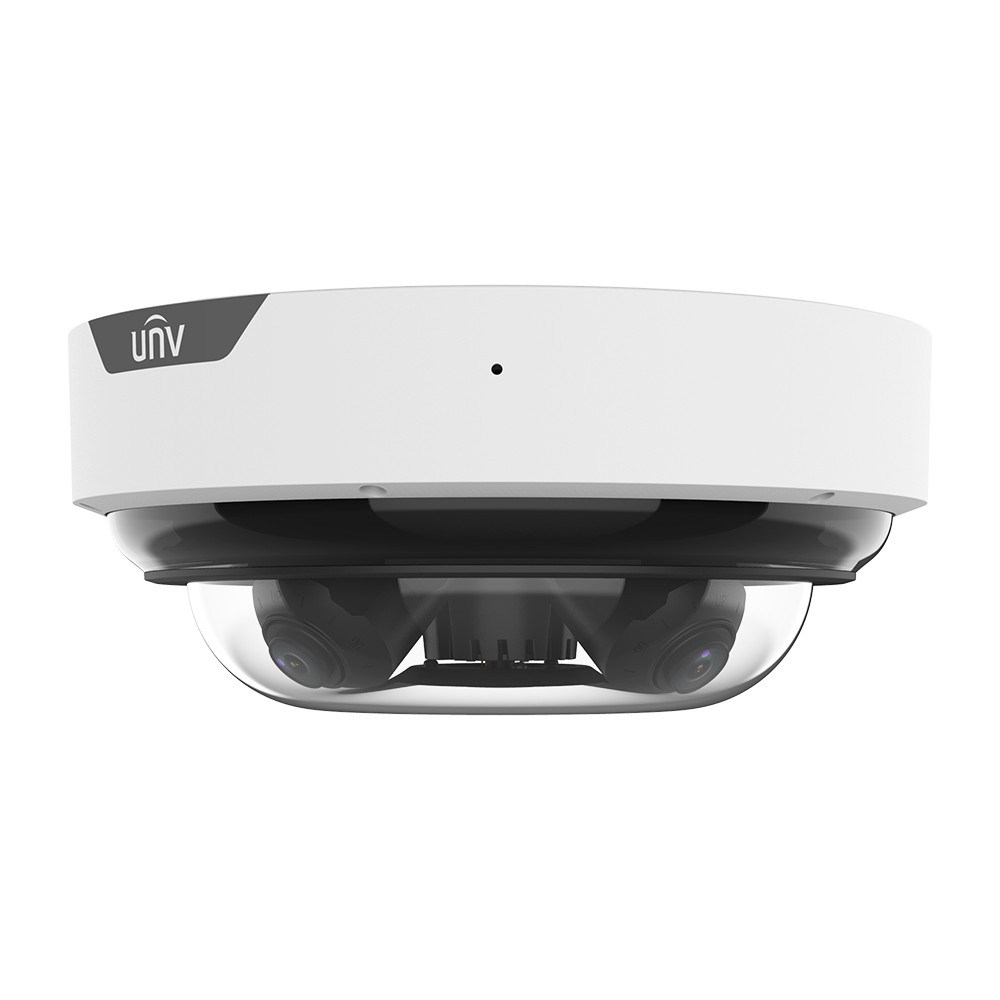

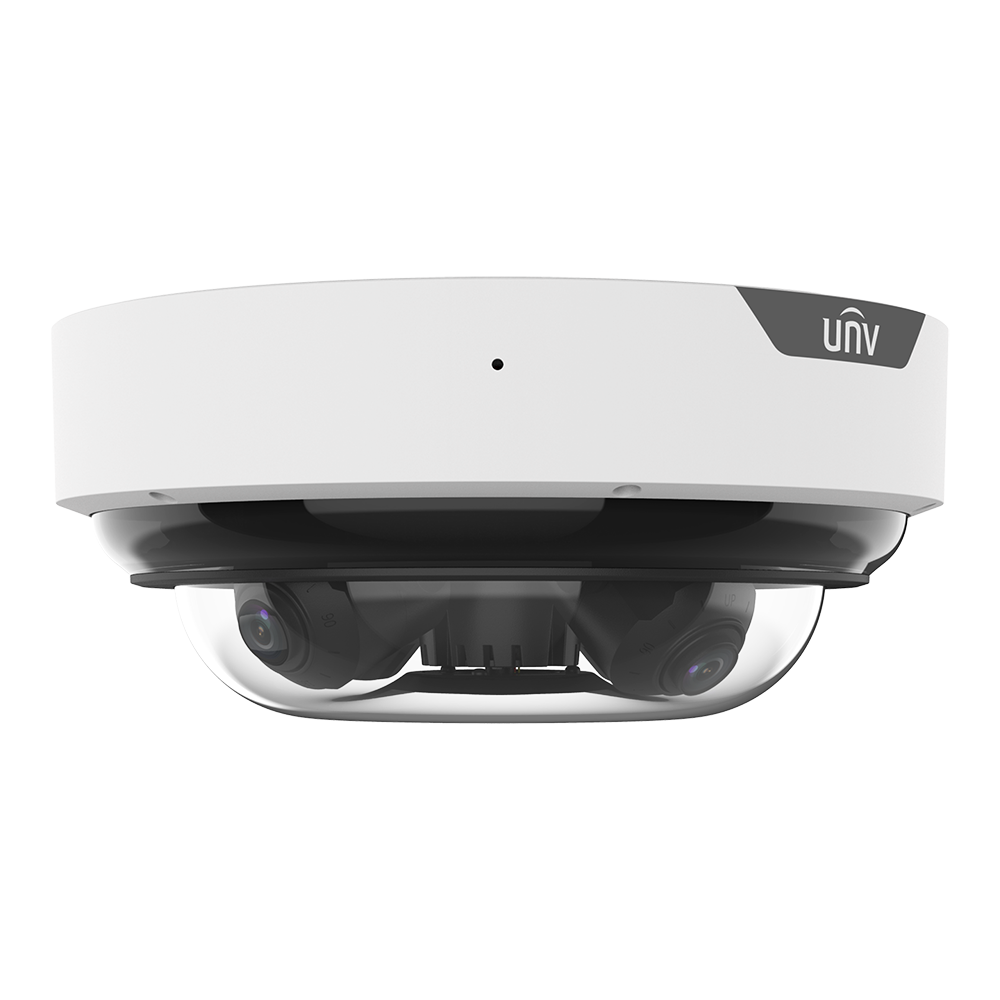

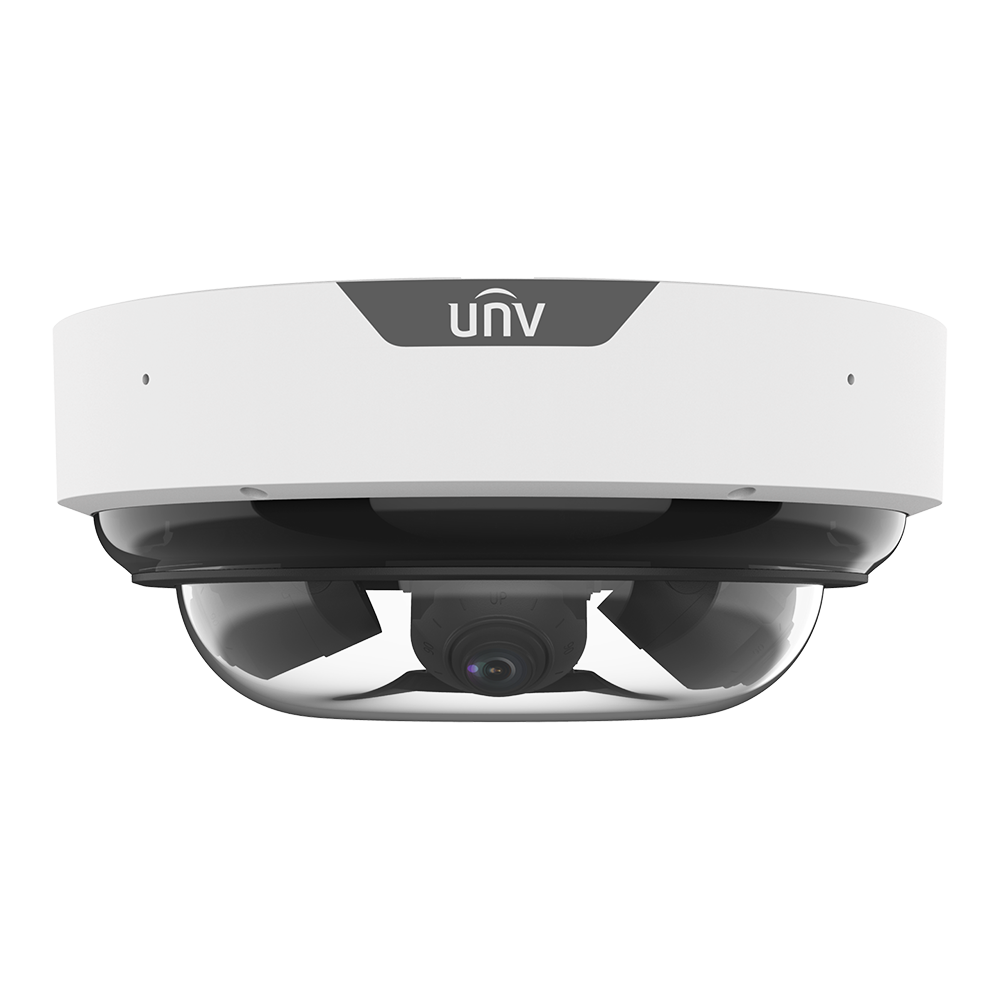

IPC8645EA-ADZKM-I1 20MP Super Startlight IR 4-Directional Panoramic Dome Network Camera

Name: IPC8645EA-ADZKM-I1 20MP Super Startlight IR 4-Directional Panoramic Dome Network Camera
Brand: UNV
SKU: IPC8645EA-ADZKM-I1

SKU: IPC8645EA-ADZKM-I1

20MP Super Startlight IR 4-Directional Panoramic Dome Network Camera

10 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

One IP with four channels
Supports multiple intelligent functions, different functions of each channel can be enabled at the same time to satisfy various analysis requirements
Pan, tilt, rotation angle of each lens can be adjusted independently, suitable for more complicated scenes
4 channel video output, 2880 × 1620@30 fps in the main stream of each channel, provides high definition image Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, supports false alarm filtering, realizes accurate detection based on specific targets
People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
Light hunter technology ensures ultra-high image quality in low illumination environments
130 dB true WDR technology ensures clear image in strong backlight scene
IP67 ingress and IK10 protection

Product Manual

No related firmware found.

Additional information

Lens Size	2.7 ~ 13.5mm
WDR	130 dB
Protection	IP67
Camera Resolutions	4*5 MP(20 MP)
Sensor	1/2.7" CMOS
Min. Illumination	Color: 0.002 Lux (F1.2 , AGC ON) , 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
IR On/Off Control	Auto/Manual
Adjustment Angle	Pan: 0° to 360° , Tilt: 0° to 65° , Rotate: 0° to 355°
S/N	>56 dB
Iris	F1.2 * 4
Illumination Distance (IR)	50 m (164.0 ft)
Video Compression	Ultra 265 , H.265 , H.264 , MJPEG
Video Bit Rate	128 Kbps ~ 16 Mbps * 4Channel
H.264 Code Profile	Baseline profile , Main profile , High profile
Edge Storage	MicroSD , up to 512 GB
Network Storage	ANR , NAS (NFS)
Audio	Built-in Mic
Interface Network	1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet
Power	DC 24 V±25% , AC 24 V±25% , PoE (IEEE 802.3bt)
Power Consumption	Max. 31 W
Power Interface	Wires with cold-pressed terminal
Dimensions	Ø318 mm × 136.6 mm (Ø 12.52" × 5.38") (Ø × H)
Weight	4.77 kg (10.52 lb）
Surge Protection	6 KV
Camera Style	Dome
