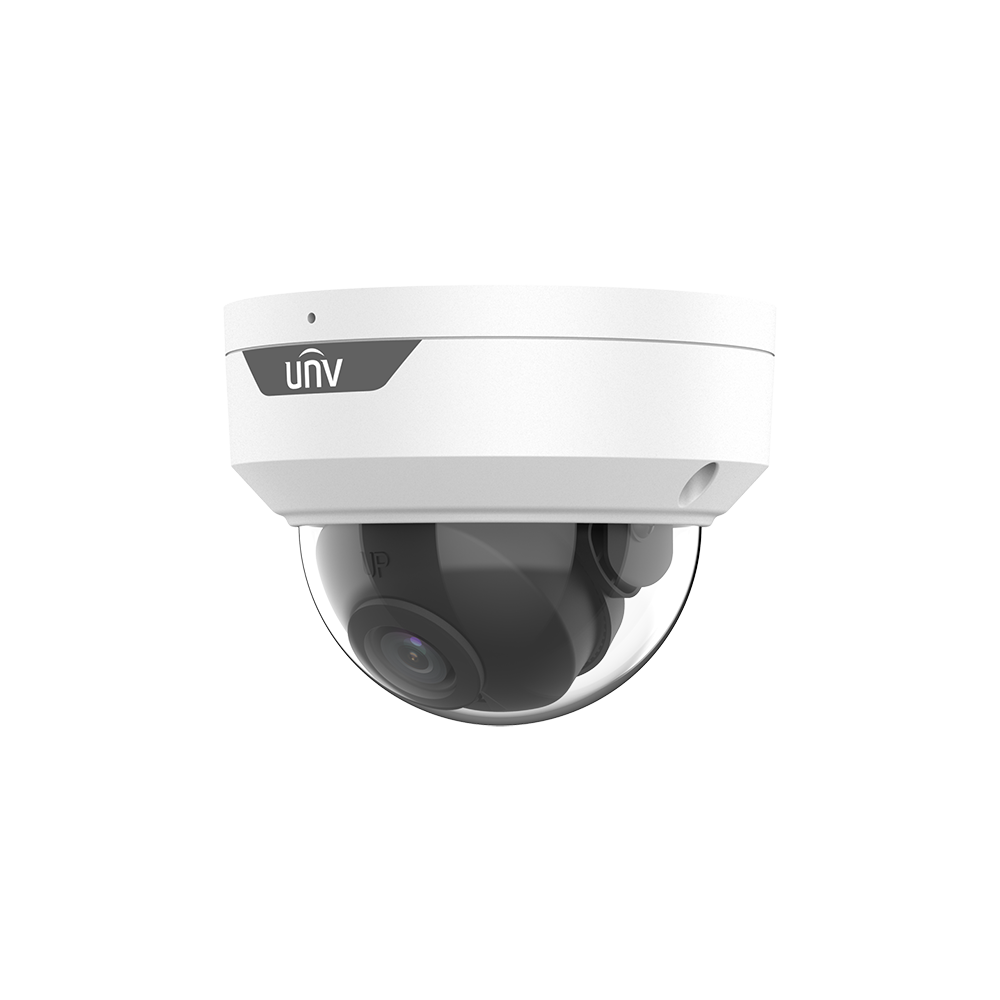

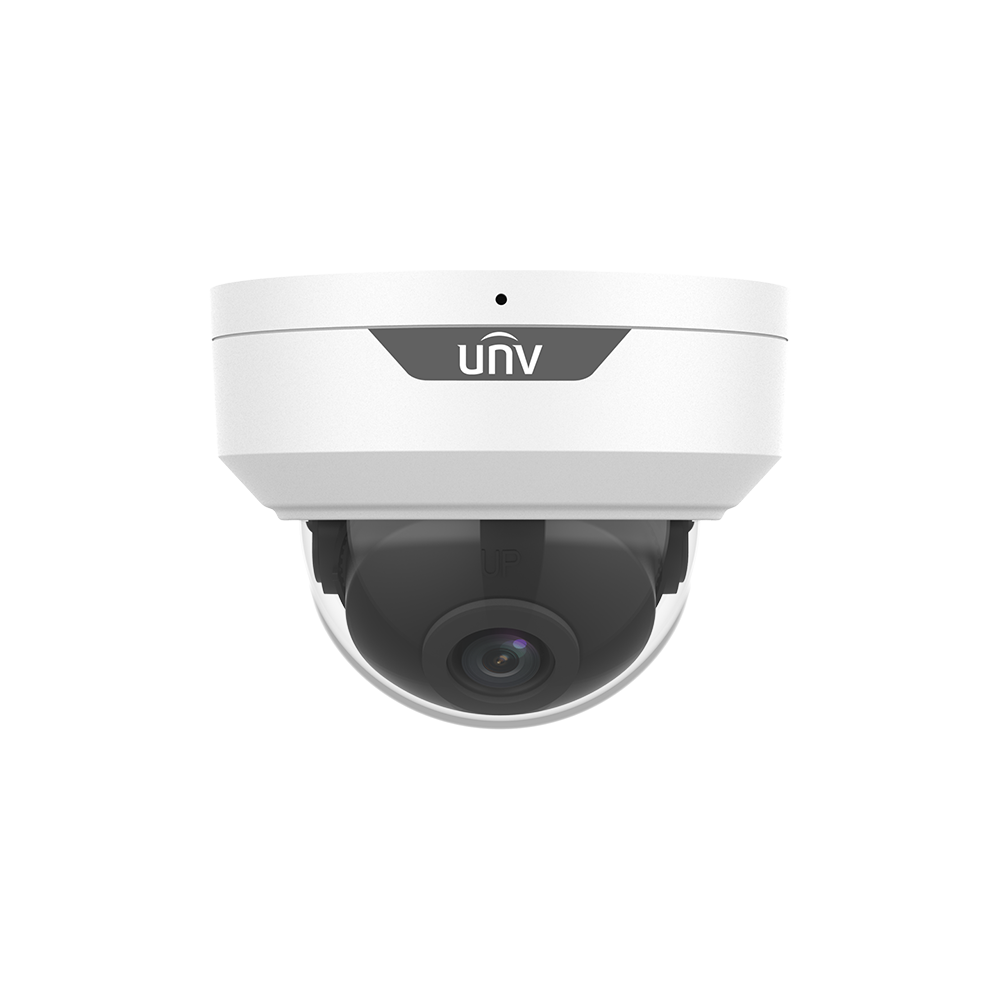

IPC328SB-ADF28K-I0 8MP LightHunter Fixed IR Dome Network Camera

Name: IPC328SB-ADF28K-I0 8MP LightHunter Fixed IR Dome Network Camera
Brand: UNV
SKU: IPC328SB-ADF28K-I0

SKU: IPC328SB-ADF28K-I0

8MP LightHunter Fixed IR Dome Network Camera

18 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

High quality image with 8 MP, 1/2.7″ CMOS sensor
8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
Intelligent face detection
Intelligent people flow counting and crowd density monitoring
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Alarm I/O: 1/1, audio I/O: 1/1
Built-in mic
Smart IR, up to 30 m (98.4 ft) IR distance
MicroSD, up to 512 GB
IK10 vandal resistant and IP67 protection

Product Manual

No related firmware found.

Additional information

Sensor	1/2.7" CMOS
Camera Resolutions	8 MP
Lens Size	2.8mm
Lens Type	Fixed Lens
WDR	120 dB
Camera Style	Dome
Min. Illumination	Color: 0.003 Lux (F1.6 , AGC ON) , 0 Lux with light
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual , 1 ~ 1/100000s
Adjustment Angle	Pan: 3° to 360° , Tilt: 0° to 68° , Rotate: 3° to 360°
S/N	>52 dB
Iris	F1.6
Illumination Distance (IR)	30 m (98.5 ft)
Video Compression	Ultra 265 , H.265 , H.264 , MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
Digital Noise Reduction	2D/3D DNR
Edge Storage	MicroSD , up to 512 GB
Network Storage	ANR , NAS (NFS)
Interface Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Audio	Built-in Mic
Power	DC 12 V±25% , PoE (IEEE 802.3af)
Power Consumption	Max. 6.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø109 mm × 83 mm (Ø4.3" × 3.3") (Ø × H)
Weight	0.43 kg (0.99 lb)
Material	Metal
Protection	IK10 , IP67
Surge Protection	4 KV
