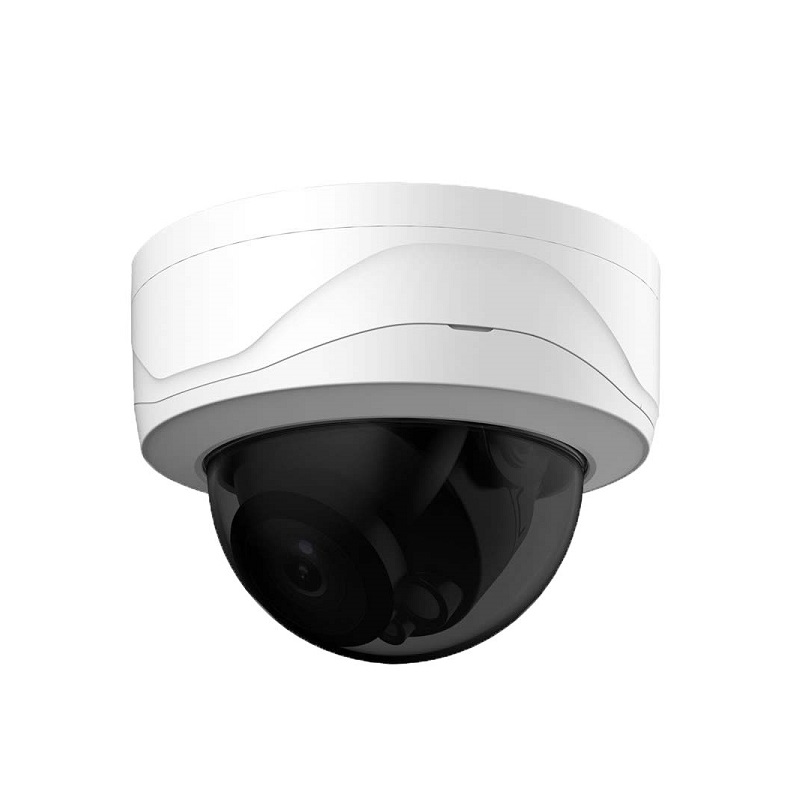

IPC-VD284R-IR-ZAS-S 8MP IR Vari-focal Dome WizSense Network Camera

Name: IPC-VD284R-IR-ZAS-S 8MP IR Vari-focal Dome WizSense Network Camera
SKU: IPC-VD284R-IR-ZAS-S

SKU: IPC-VD284R-IR-ZAS-S

8MP IR Vari-focal Dome WizSense Network Camera

20 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

8-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image
Outputs max. 8 MP (3840 x 2160) @20 fps, and supports 2688 x 1520 (2688 x 1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, and the max. illumination distance is 40 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out (Only ZAS supports); audio: 1 in, 1 out (Only ZAS supports); supports max. 256 G Micro SD card; built in MIC
12 VDC/PoE power supply, easy for installation
IP67, IK10 protection
SMD Plus

Product Manual

No related firmware found.

Additional information

Camera Resolutions	8 MP
Image Sensor	1/2.7" CMOS
Camera Style	Dome
Max. Resolution	3840 × 2160
ROM/RAM	128 MB/256 MB
Minimum Illumination	0.008 lux@F1.5 (Color , 30 IRE) 0.0008 lux@F1.5 (B/W , 30 IRE) 0 lux (Illuminator on)
Illumination Distance	40 m (131.23 ft) (IR)
Lens Type	Varifocal Lens
Lens Mount	Φ14
Max. Aperture	F1.5
Video Bit Rate	H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps
WDR	120 dB
Digital Noise Reduction	3D DNR
Image Rotation	0° /90° /180° /270° (Support 90° /270° with 2688 × 1520 resolution and lower)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
Storage	FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Audio	Built-in Mic
Power	12 VDC/PoE (802.3af)
Product Dimensions	93.4 mm × Φ122 mm (3.68" × Φ4.80")
Gross Weight	-ZS: 0.66 kg (1.46 lb) -ZAS: 0.67 kg (1.48 lb)
