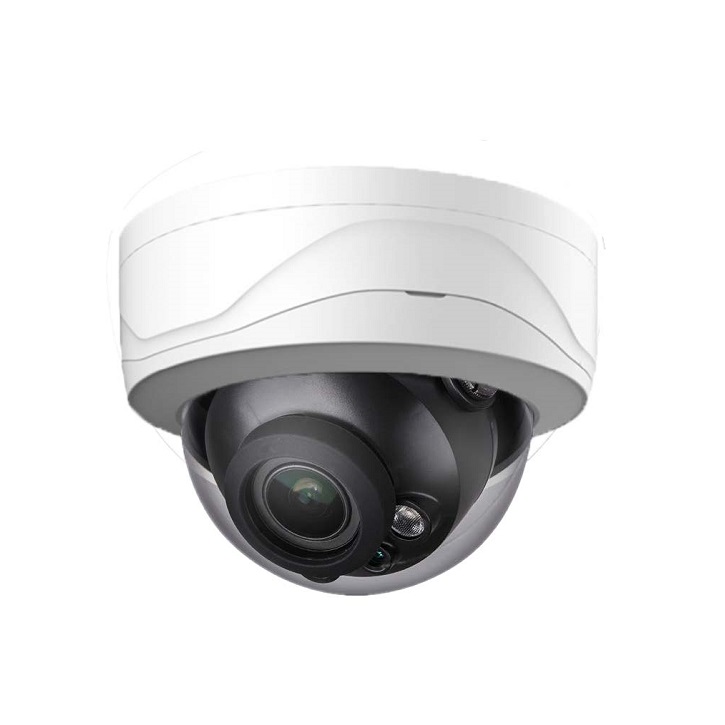

IPC-VD254R-IR-ZS 5MP IR Vari-focal Dome WizSense Network Camera

Name: IPC-VD254R-IR-ZS 5MP IR Vari-focal Dome WizSense Network Camera
SKU: IPC-VD254R-IR-ZS

SKU: IPC-VD254R-IR-ZS

5MP IR Vari-focal Dome WizSense Network Camera

11 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
Outputs max. 5 MP (2960 x 1668) @20 fps, and supports 2688 x 1520 (2688 x 1520) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, and the max. illumination distance is 40 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only ZAS supports); audio: 1 in, 1 out (Only ZAS supports); supports max. 256 G Micro SD card; built in MIC.
12 VDC/PoE power supply, easy for installation.
IP67, IK10 protection.

Product Manual

No related firmware found.

Additional information

Camera Resolutions	5 MP
Camera Style	Dome
Image Sensor	1/2.7" CMOS
Max. Resolution	2960 × 1668
ROM/RAM	128 MB/256 MB
Minimum Illumination	0.007 lux@F1.5 (Color , 30 IRE) 0.0007 lux@F1.5 (B/W , 30 IRE) 0 lux (Illuminator on)
Illumination Distance	40 m (131.23 ft) (IR)
Video Bit Rate	H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps
WDR	120 dB
Digital Noise Reduction	3D DNR
Lens Type	Varifocal Lens
Lens Mount	Φ14
Max. Aperture	F1.5
Field of View	H: 113°–31°; V: 58°–18°; D: 138°–36°
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Storage	FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Power	12 VDC/PoE (802.3af)
Protection	IK10 , IP67
Casing Material	Metal
Product Dimensions	93.4 mm × Φ122 mm (3.68" × Φ4.80")
Net Weight	-ZS: 0.50 kg (1.10 lb) -ZAS: 0.51 kg (1.12 lb)
Audio	Built-in Mic
