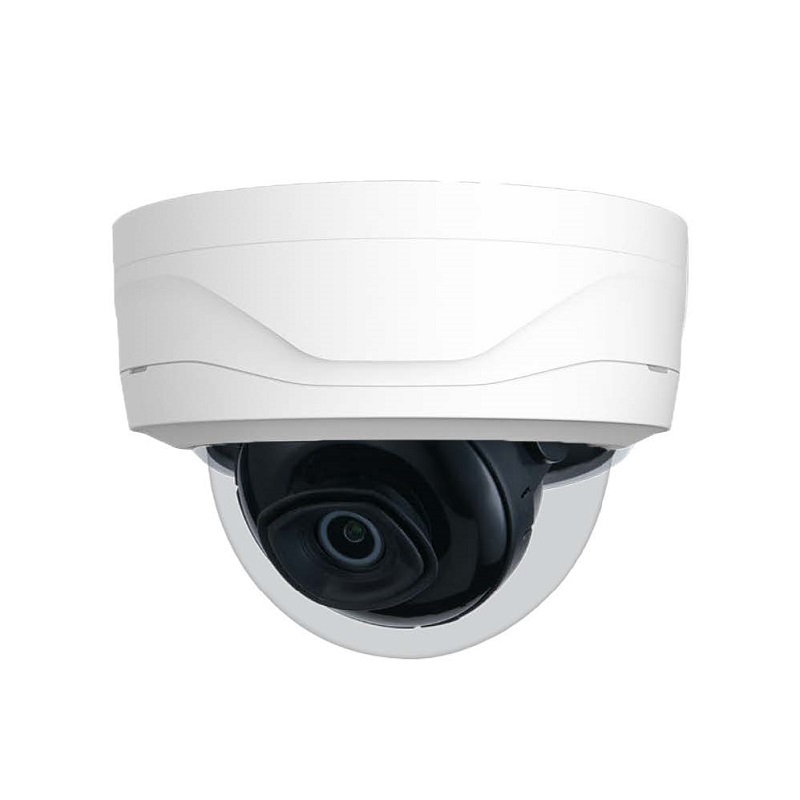

IPC-MD284E-IR-S 8MP IR Fixed-focal Dome WizSense Network Camera

Name: IPC-MD284E-IR-S 8MP IR Fixed-focal Dome WizSense Network Camera
SKU: IPC-MD284E-IR-S 2.8

SKU: IPC-MD284E-IR-S 2.8

8MP IR Fixed-focal Dome WizSense Network Camera

11 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

8-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 x 2160) @20 fps, and supports 2688 x 1520 @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, and the max. illumination distance is 30 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Supports max. 256 G Micro SD card; built-in MIC.
12 VDC/PoE power supply, easy for installation.
IP67, IK10 protection.

Product Manual

No related firmware found.

Additional information

Image Sensor	1/2.7" Progressive Scan CMOS
ROM/ RAM	128 MB/256 MB
Max. Resolution	3840 × 2160
Scanning System	Progressive
Lens Type	Fixed Lens
Shutter Speed	1/3 s to 1/100 , 000 s , Auto/Manual
Minimum Illumination	0.009 lux@F 2.0 (Color, 30 IRE) ; 0.0009 lux@F2.0 (B/W, 30 IRE) ; 0 lux (Illuminator on)
Illumination Distance	Illumination Distance
Pan/Tilt/Rotation Range	Pan: 0°–355° ; Tilt: 0°–65° ; Rotation: 0°–355°
Video Bit Rate	H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps
WDR	120 dB
Digital Noise Reduction	3D DNR
Camera Resolutions	8 MP
Lens Mount	M12
Camera Style	Dome
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F2.0
Field of View	2.8 mm: H: 106°; V: 56°; D: 125° 3.6 mm: H: 88°; V: 46°; D: 104°
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Audio	Built-in Mic
Storage	FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Power	12 VDC/PoE (802.3af)
Protection	IK10 , IP67
Casing Material	Metal
Product Dimensions	81.0 mm × Φ109.9 mm (3.19" × Φ4.33")
