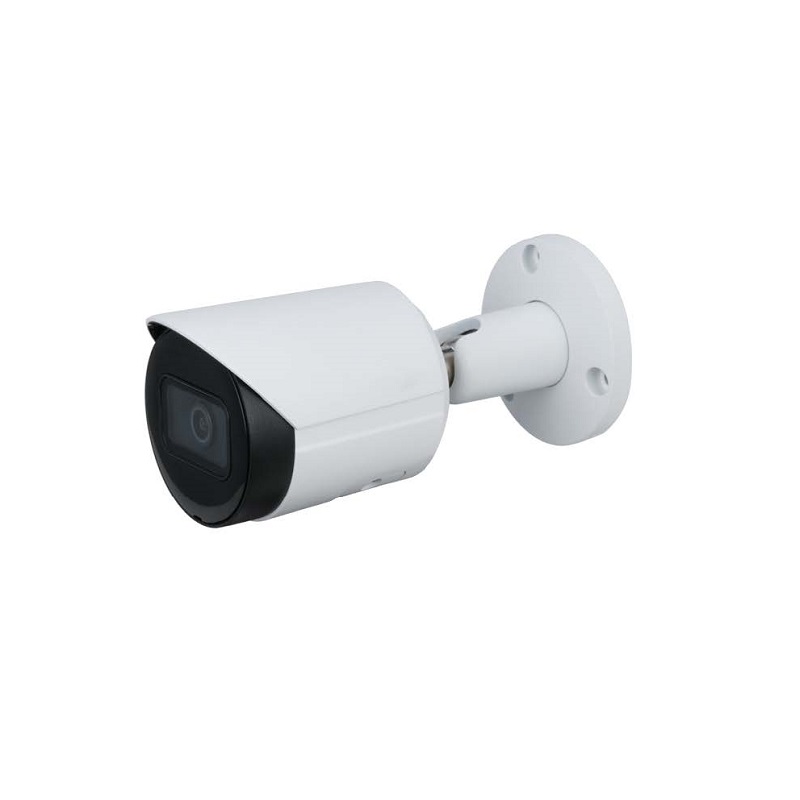

IPC-MB284S-IR-S 8MP Lite IR Fixed-focal Bullet Network Camera

Name: IPC-MB284S-IR-S 8MP Lite IR Fixed-focal Bullet Network Camera
SKU: IPC-MB284S-IR-S 2.8

SKU: IPC-MB284S-IR-S 2.8

8MP Lite IR Fixed-focal Bullet Network Camera

14 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

8MP, 1/2.7″ CMOS image sensor, low luminance, high image definition
Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access,voltage detection
Supports max. 256 GB Micro SD card
12V DC/PoE power support
IP67 protection

Product Manual

No related firmware found.

Additional information

Image Sensor	1/2.7” 8Megapixel progressive CMOS
Camera Resolutions	8 MP
Camera Style	Bullet
Lens Type	Fixed Lens
Effective Pixels	3840 (H) × 2160 (V)
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100 , 000 s
Min. Illumination	0.009 Lux@F2.0
IR Distance	30 m (98.43 ft)
Focal Length	2.8 mm
Video Compression	H.265; H.264; H.264B; MJPEG
Video Bit Rate	H.264: 32 Kbps–8192 Kbps H.265: 12 Kbps–8192 Kbps
Network	RJ-45 (10/100 Base-T)
Edge Storage	Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Power Supply	12V DC/PoE (802.3af)
Power Consumption	< 5.5W
Protection	IP67
Casing	Metal
Dimensions	166.2 mm × Φ70 mm (6.54" × Φ2.76")
Net Weight	0.48 kg (1.1 lb)
Gross Weight	0.57 kg (1.3 lb)
