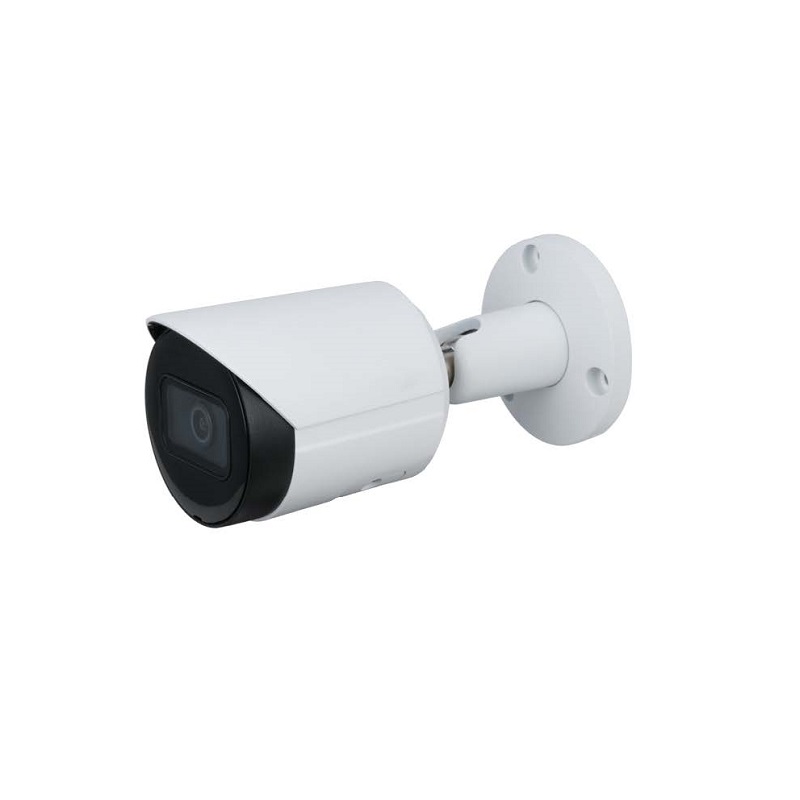

IPC-MB284S-IR 8MP LITE IR FIXED-FOCAL BULLET NETWORK CAMERA

Name: IPC-MB284S-IR 8MP LITE IR FIXED-FOCAL BULLET NETWORK CAMERA
SKU: IPC-MB284S-IR 2.8MM

SKU: IPC-MB284S-IR 2.8MM

8MP LITE IR FIXED-FOCAL BULLET NETWORK CAMERA

18 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

8MP, 1/2.7″ CMOS image sensor, low luminance, high image definition
Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access,voltage detection
Supports max. 256 GB Micro SD card
12V DC/PoE power support
IP67 protection

Product Manual

No related firmware found.

Additional information

Camera Resolutions	8 MP
Camera Style	Bullet
Image Sensor	1/2.7" Progressive Scan CMOS
Effective Pixels	3840(H)×2160(V)
ROM/ RAM	128 MB/256 MB
Scanning System	Progressive
Shutter Speed	1/3 s to 1/100 , 000 s , Auto/Manual
Minimum Illumination	0.009 Lux@F2.0
IR Distance	30 m
Pan/Tilt/Rotation Range	Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotate: 0° ~ 360°
Video Bit Rate	H.264: 32 Kbps–8192 Kbps; H.265: 12 Kbps–8192 Kbps
Digital Noise Reduction	3D DNR
Image Rotation	0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)
Lens Mount	M12
Focal Length	2.8 mm
Max. Aperture	F2.0
Field of View	2.8 mm: Pan 105° × Tilt 56° × Diagonal 125°
Edge Storage	Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Power	12V DC/PoE (802.3af)
Power Consumption	< 5.5W
Protection Grade	IP67
Casing	Metal
Dimensions	166.2 mm × Φ70 mm (6.54" × Φ2.76")
Gross Weight	0.57 kg (1.3 lb)
