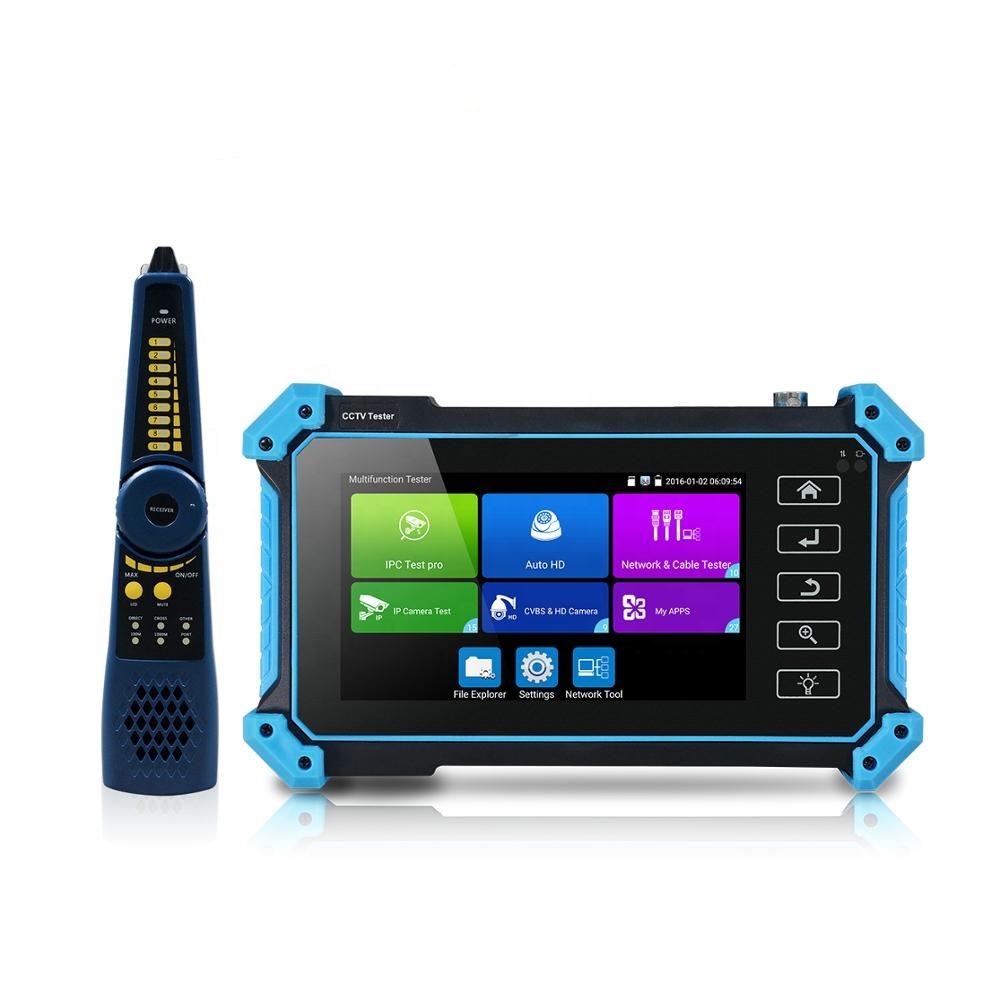

HDMT5500-T 5 inch 4K H.265 All-In-One IP TVI CVI AHD EX-SDI CVBS Camera Tester

SKU: HDMT5500-T

5 inch 4K H.265 All-In-One IP TVI CVI AHD EX-SDI CVBS Camera Tester

11 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 5 inch IPS touch screen, 1920 x 1080 resolutions
  • 8MP CVI/ TVI/ AHD camera test
  • 8MP EX-SDI, HD-SDI, 3G-SDI test*
  • H.265/H.264, 4K video display via mainstream
  • VGA input, support 1920 x 1200P 60FPS*
  • HDMI Input, support 4K 30FPS*
  • DC12V 3A, 48V PoE power output
  • Rapid ONVIF, Create the test report and modify IP address, etc
  • Auto HD, auto recognize HD coax camera type and resolution
  • RJ45 TDR cable test, cable quality test
  • UTP cable test, detect the near-end, mid-end and far-end fault point of the network cable crystal head

Download

Product Manual

No related firmware found.
Additional information
LCD Display

New 5 inch IPS touch screen

,

1920×1080 resolution

Power output

12V/3A power: Output DC12V/3A power out

,

supply temporarily power for the camera PoE power output :48V PoE power output

,

max power 25.5W

Tester Play

screen projection:Tester

,

mobile phone and PC display at the same time (For android version mobile phone)

Network test

Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi

Built in WIFI, speeds 150M, display wireless camera image

Audio test

1 channel audio signal input, test whether sound normal

Power management

Display DC 12V input & output voltage and power in real time

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

External power supply

DC 12V 1A

Battery

Built-in 7.4V Li-ion battery, 3350mAh

Rechargeable

After charging 3-4 hours, normal working time 5 hours

Auto off

1-30 (mins)

Working Humidity

30%-90%

Dimensions

183mm x 110mm x 36.5mm /0.32kg
