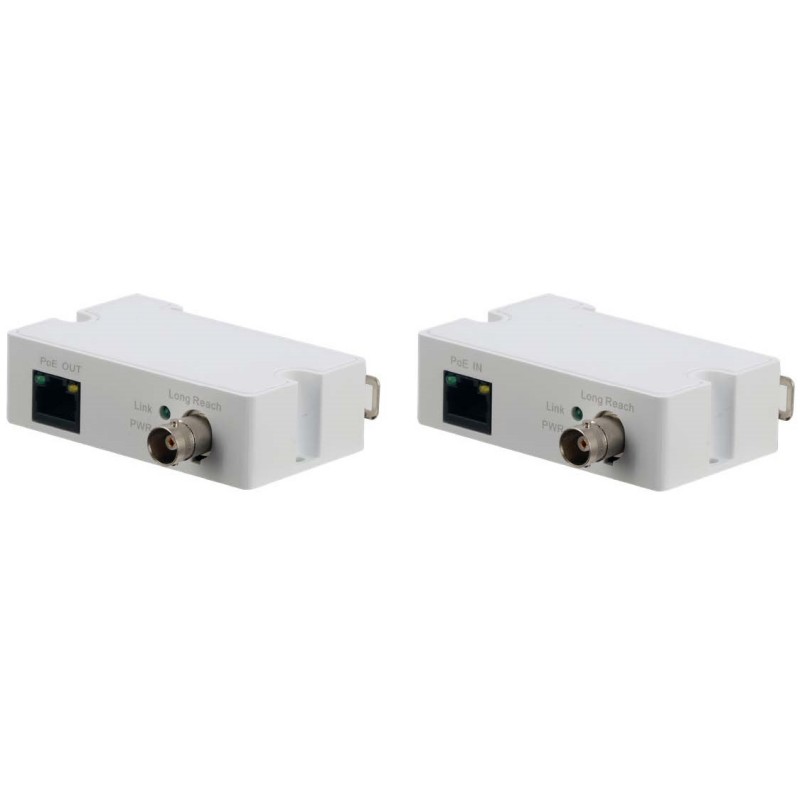

EOC-102TX/EOC-102RX POE OVER COAXIAL CABLE TRANSMISSION AND RECEIVER CONVERTER

Name: EOC-102TX/EOC-102RX POE OVER COAXIAL CABLE TRANSMISSION AND RECEIVER CONVERTER
SKU: EOC-102TX/EOC-102RX

SKU: EOC-102TX/EOC-102RX

POE OVER COAXIAL CABLE TRANSMISSION AND RECEIVER CONVERTER

16 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Converts between CAT5E/CAT6 and Coaxial Cable Transmission
Extends EoC Long-distance Transmission to non ePoE-enabled Edge or Head-end Devices
Supports PoE Transmission, up to 1000 m (3280 ft)
Supports IEEE802.3af and IEEE802.3at Power Supply Standards
Supports the IEEE802.3 and IEEE802.3u Standards
Supports MDI/MDX Self-adaptation

Product Manual

No related firmware found.

Additional information

Functional Ports	One (1) RJ45 , 10/100 Mbps Base-TX One (1) BNC
Transmission Distance	100 Mbps: 400 m (1312 ft) 10 Mbps: 1000 m (3280 ft)
Transmission Bandwidth	RG59 Coaxial Cable: 400 m (1312 ft) at 100 Mbps , 1000 m (3280 ft) at 10 Mbps
PoE Protocol	IEEE802.3af (PoE) and IEEE802.3at (PoE+)
Network Standards	IEEE802.3, IEEE802.3u, IEEE802.3x
Lightning Protection	Common Mode: 4 KV Differential Mode: 2 KV
Dimensions (W x D x H)	79.0 mm x 52.0 mm x 23.0 mm (3.11 in. x 2.05 in. x 0.91 in.)
Weight	0.61 kg (1.34 lb)
