CPE3-P 5 GHz CPE with 13 dBi Built-in Antenna

Product Overview

The CPE3-P is a high-performance 5 GHz Wireless Bridge CPE engineered for stable, long-distance data transmission in outdoor environments. Featuring a built-in 13 dBi high-gain directional antenna, it supports point-to-point and point-to-multipoint deployments at distances of up to 3 km (1.86 miles). The device is designed for flexibility, offering three Ethernet ports and a unique PoE pass-through capability that allows it to power downstream devices. With an IP55 weatherproof rating and advanced TDMA support to prevent channel contention, the CPE3-P is a robust solution for extending network coverage, wireless video surveillance backhaul, and building-to-building connectivity.

Key Features

• High-Gain Directional Transmission: Integrated 13 dBi antenna with a 30° beamwidth ensures focused signal strength for stable links up to 3 km.
• High-Speed Wi-Fi 5 AC867: Delivers a maximum wireless data rate of 867 Mbps on the 5 GHz band, providing ample bandwidth for high-definition video and data-heavy applications.
• Intelligent TDMA Support: Utilizes Time Division Multiple Access (TDMA) to optimize point-to-multipoint communication, reducing latency and preventing “hidden node” collisions for up to 5 CPE clients.
• Flexible PoE Pass-Through: When powered via 24V Passive PoE or 802.3at, the device provides a 15.4W PoE budget to power external hardware like IP cameras directly from its LAN ports.

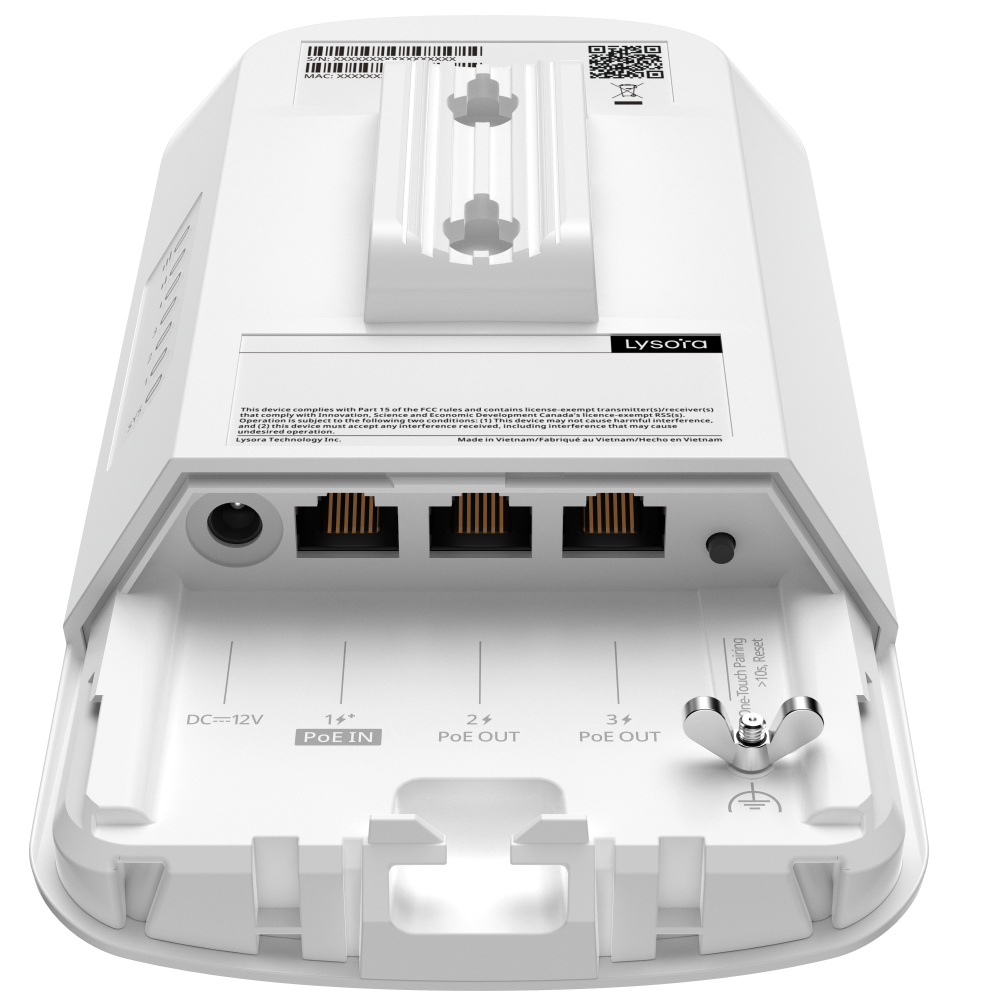

• Triple Ethernet Connectivity: Equipped with three 10/100 Mbps ports, allowing for multiple local wired connections at the installation site.
• Outdoor Industrial Design: IP55-rated weatherproof enclosure and ±4 kV surge protection ensure reliable operation in temperatures ranging from –30°C to +55°C.

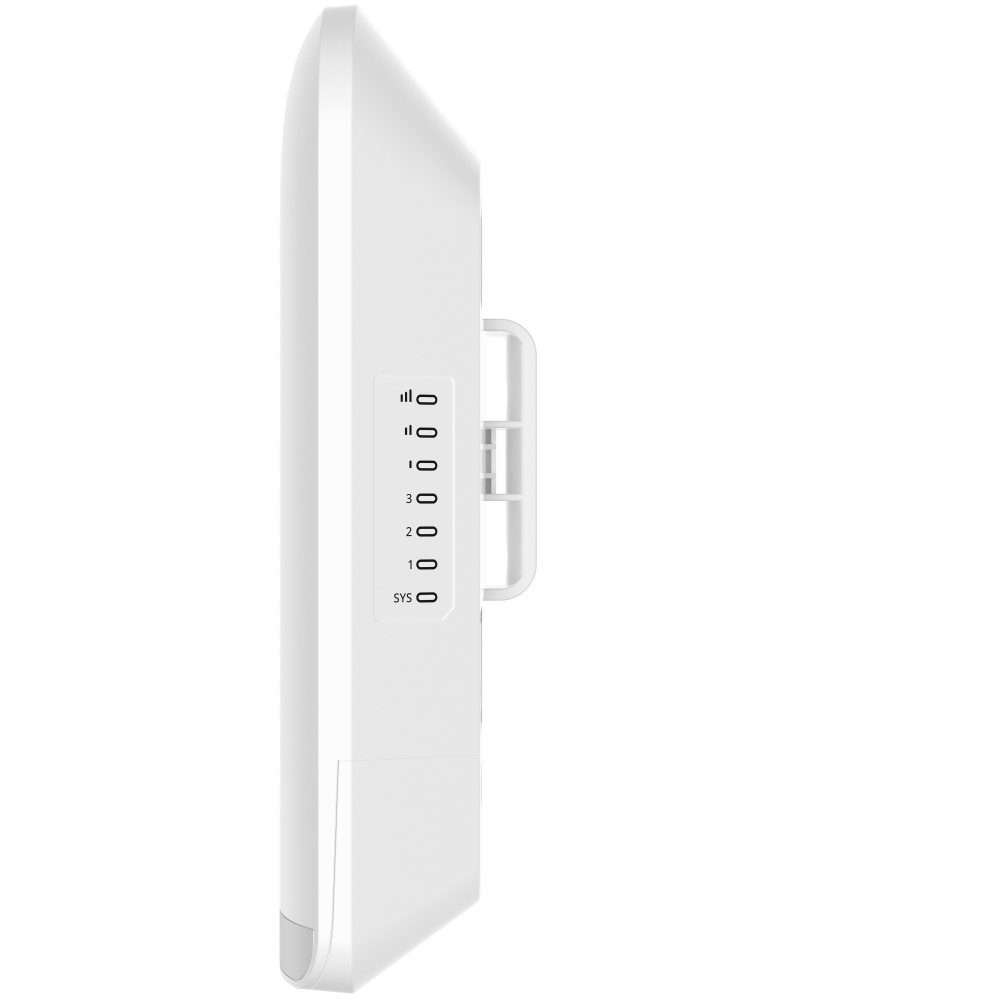

• Simplified Deployment: Features dedicated signal status LEDs for easy antenna alignment and supports remote management via Lysora Cloud or eWeb.
