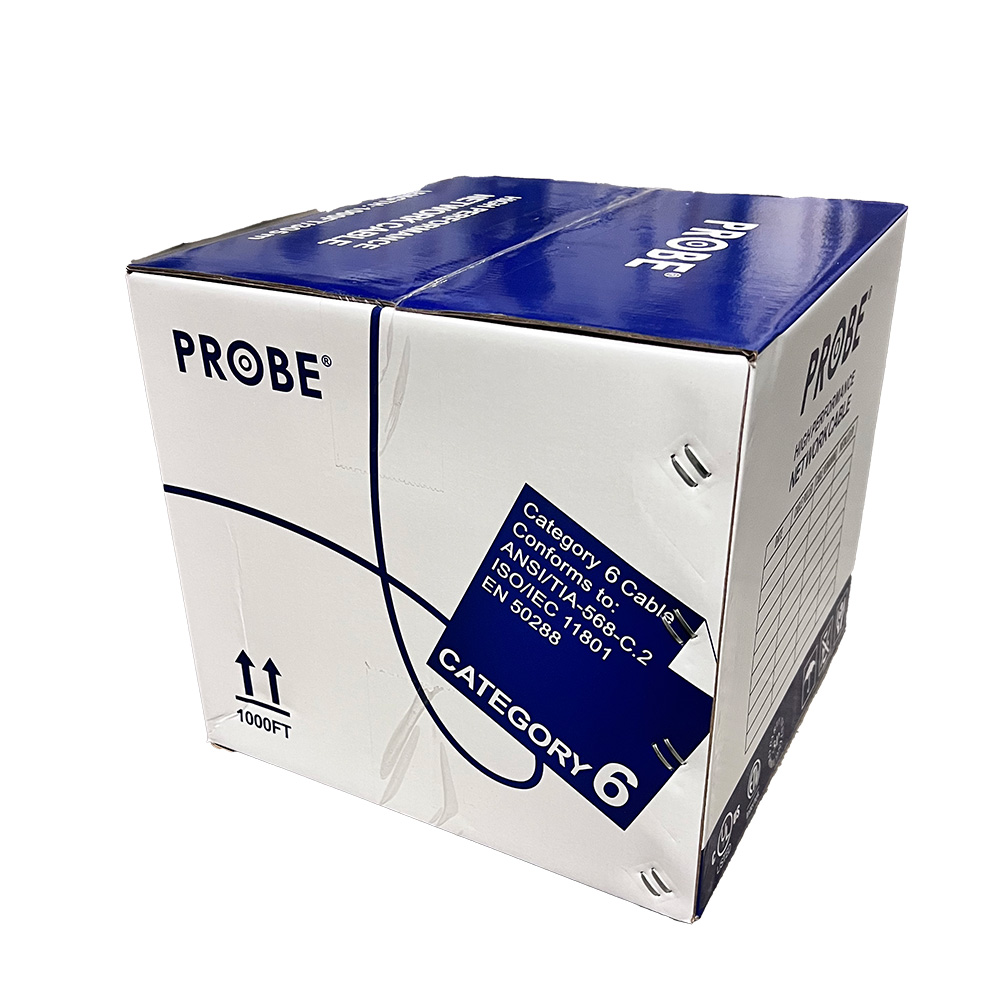

C6BC1000-OD-BK Outdoor Waterblock Cat6 550MHz 1000ft
Click to enlarge

C6BC1000-OD-BK Outdoor Waterblock Cat6 550MHz 1000ft

SKU: C6BC1000-OD-BK

Outdoor Waterblock Cat6 550MHz 1000ft

Add to wishlist
Add to compare
13 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

23 Awg Outdoor Cat 6

Download

Product Manual

No related firmware found.
Additional information
Category Type

Shielding Type

Unshielded (U/UTP)

Voltage /temperature

30V/75℃

Product specifications

1/0.52mm BC

,

PE Jacket

,

OUTDOOR，1-550Mhz

Conductor

1/0.52mm BC

Insulation material

HDPE

Insulation OD

0.94mm

Insulation color

blue、white(blue)、orange、white(orange)、green、white(green)、brown、white(brown)

Twisted pairs

blue&white(blue)、orange&white(orange)、green&white(green)、brown&white(brown)

Cable assemble

All of the wires stranded together，filler Cross skeleton，Mylar tape wrapping

Jacket material

PE，filler polypropylene ripcord

Jacket OD.

5.9±0.2mm

Test Voltage

1.5KV DC

Conductor resistance

93.8Ω/km Max.

Electrical characteristics

ANSI/TIA568C.2 CAT6 Channel Spec.

Characteristic Impedance

100±15Ω

Transmission frequency

1-550Mhz

Operating voltage

30V

No hazardous substance

RoHS Compliant Directive 2011/65/EU
