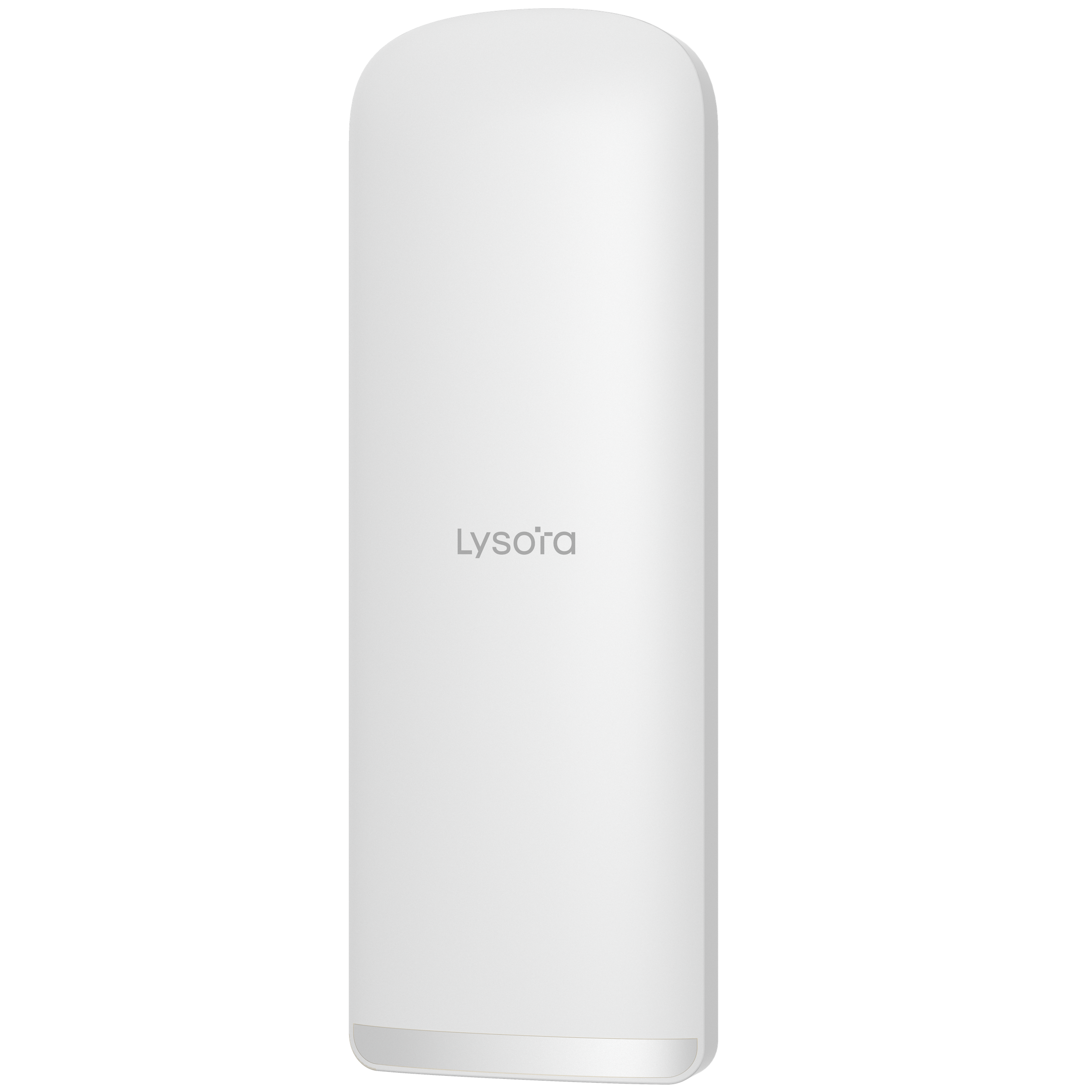

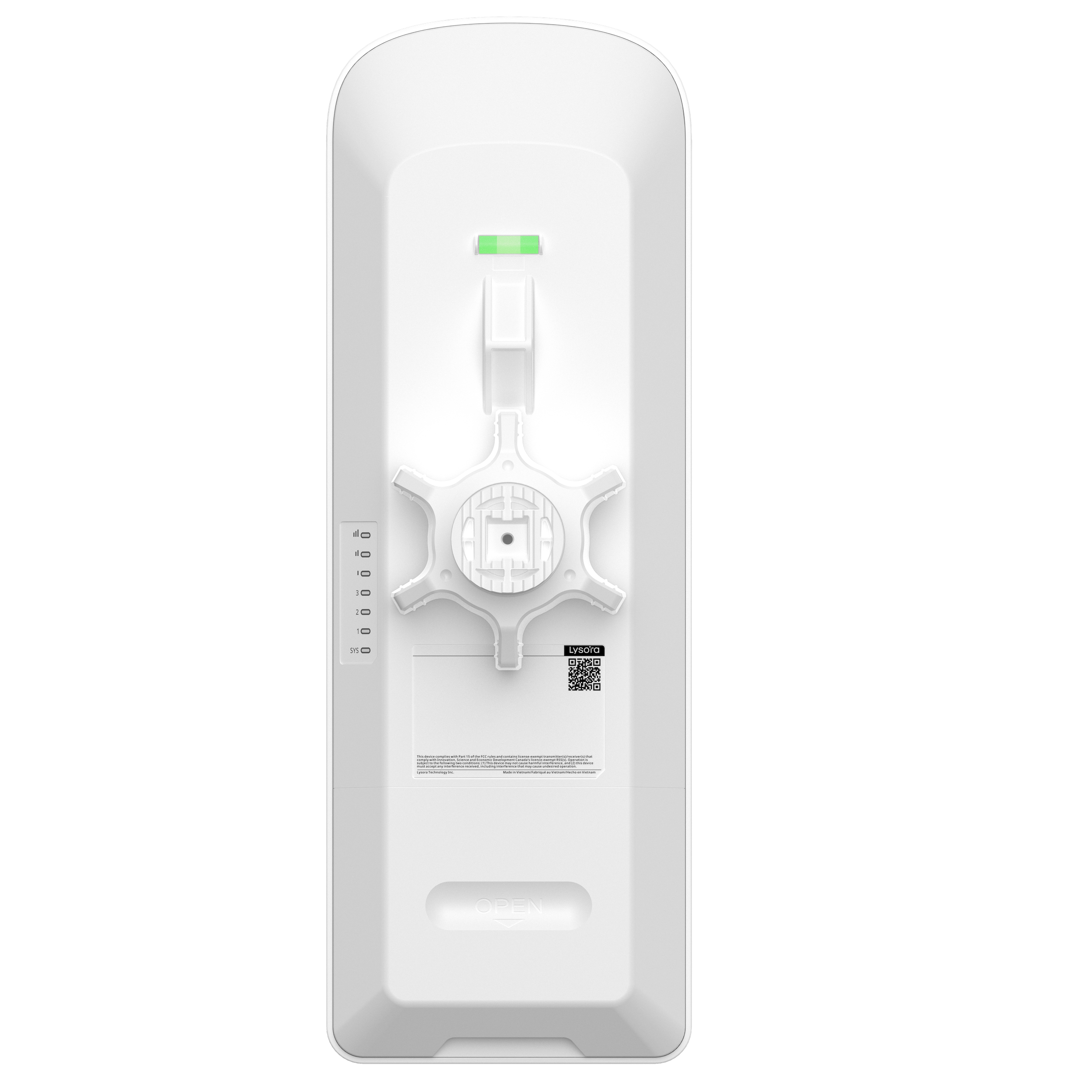

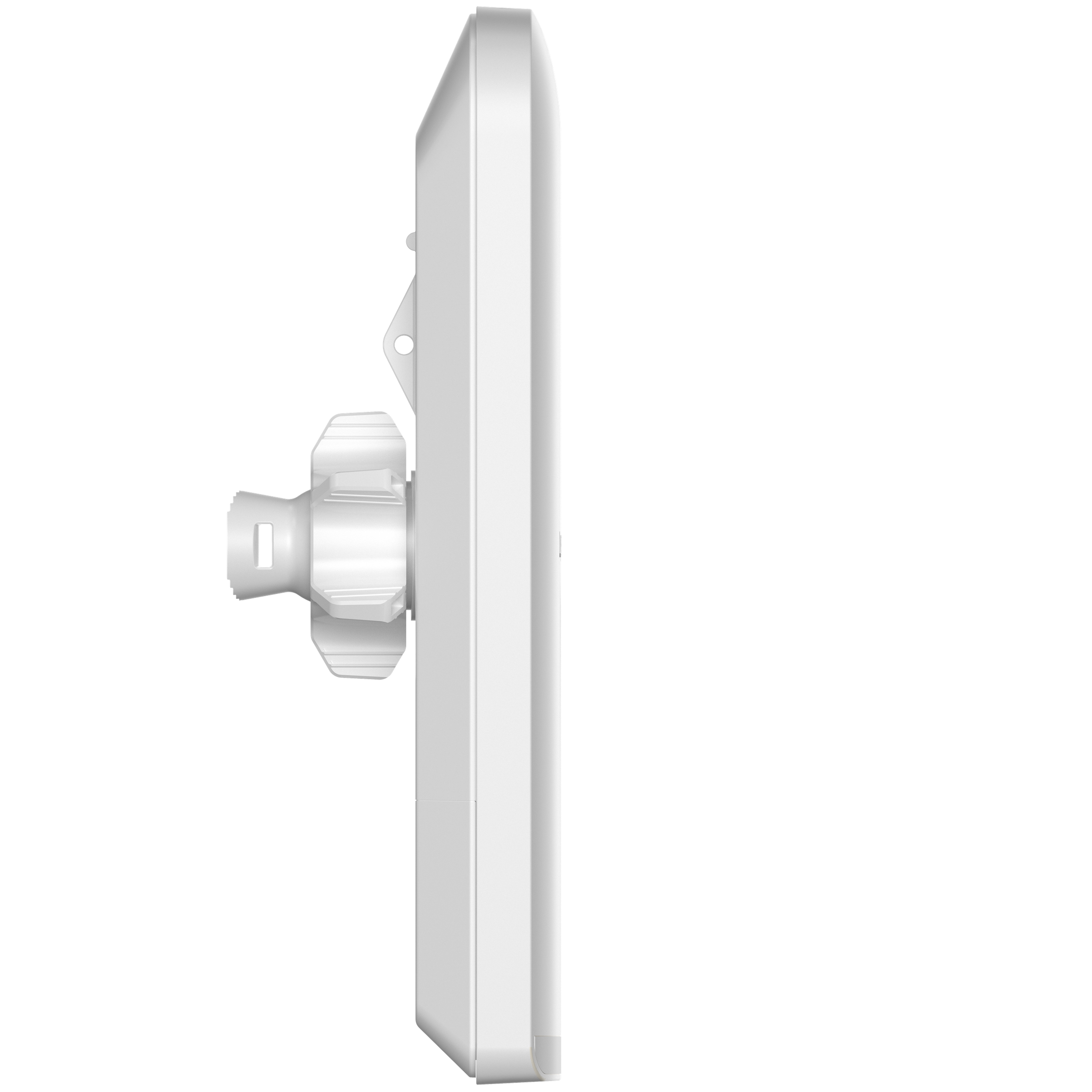

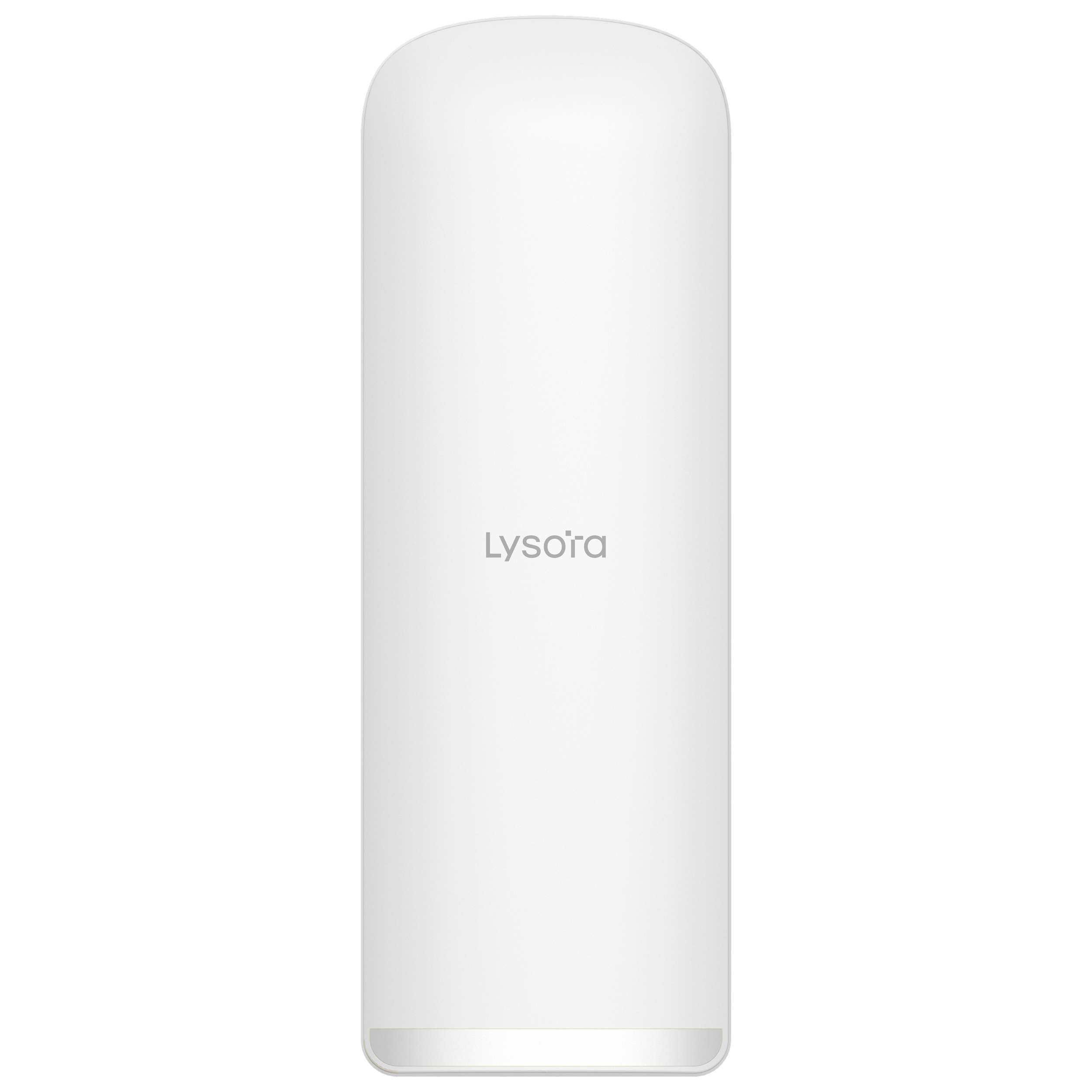

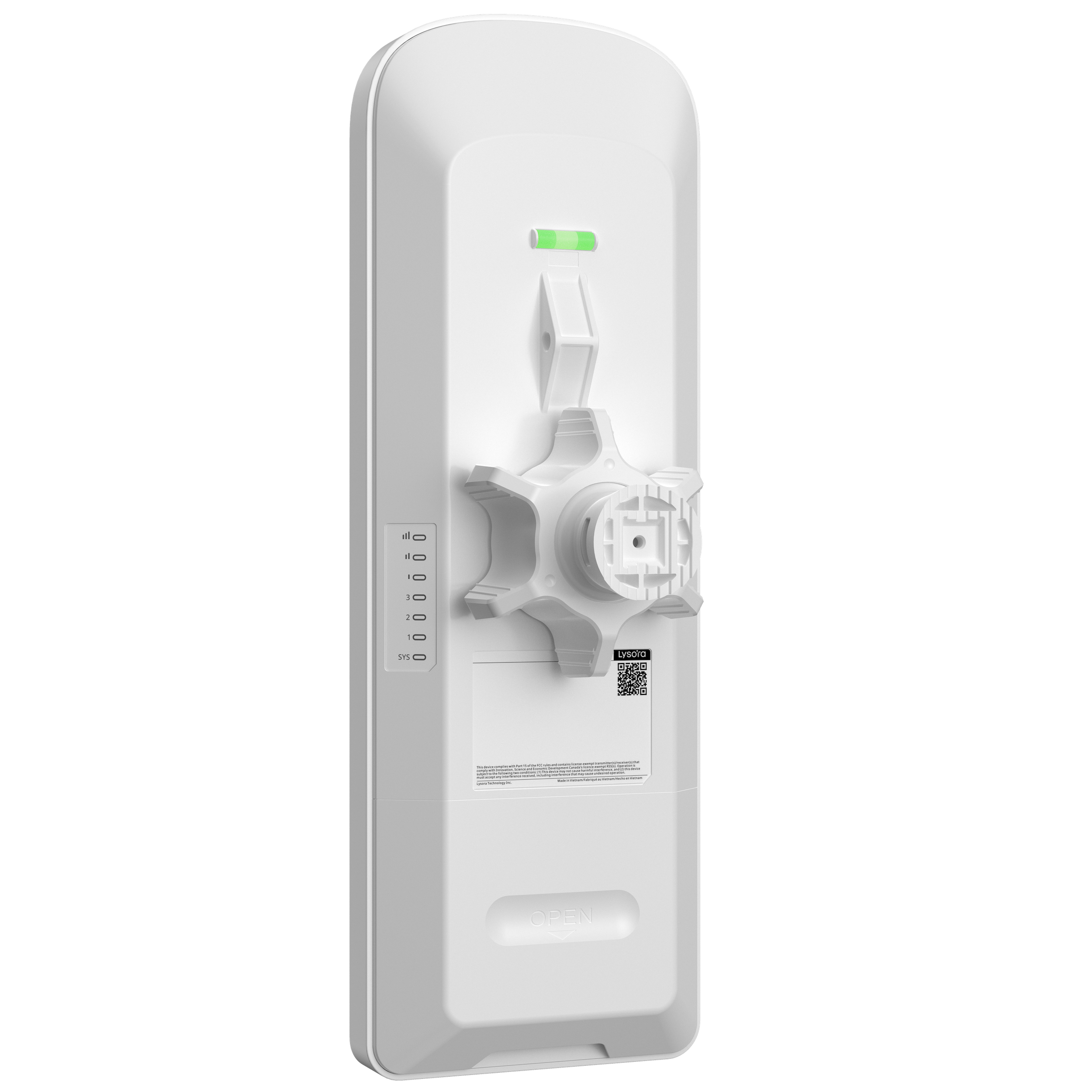

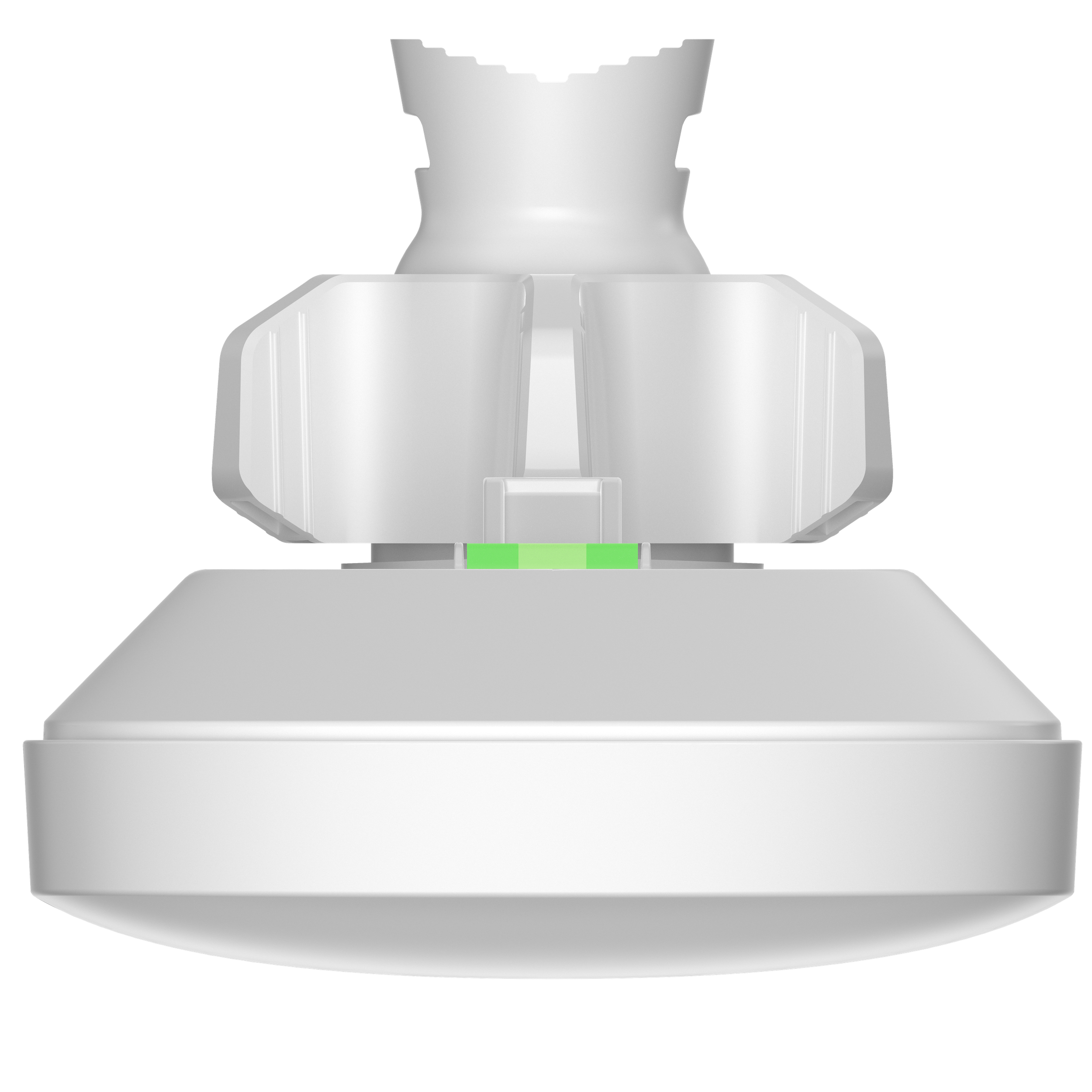

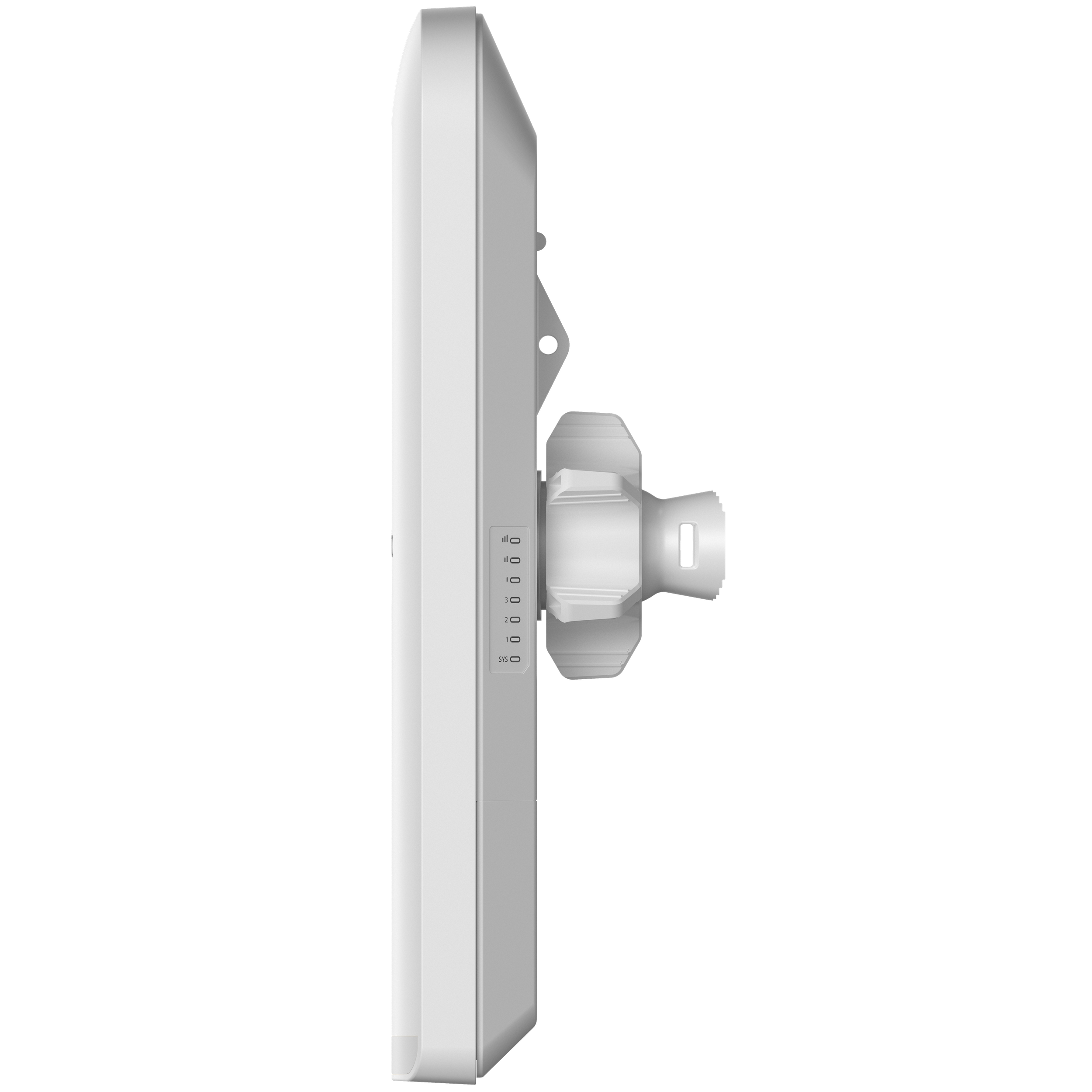

Base5i 5 GHz BaseStation with 15 dBi Built-in Antenna

Product Overview

The Base5i is a high-capacity 5 GHz Wireless Bridge Base Station designed for wide-angle, long-range outdoor connectivity. Featuring a built-in 15 dBi high-gain 120° sector antenna, it is specifically engineered to act as the central hub in point-to-multipoint (PTMP) deployments, covering distances of up to 5 km (3.11 miles). Powered by a dual-core 880 MHz processor and equipped with three Gigabit Ethernet ports, the Base5i ensures maximum data throughput of 867 Mbps for high-density applications. Its IP55-rated enclosure and advanced TDMA technology make it a robust and reliable choice for large-scale wireless surveillance backhaul and campus-wide network distribution.

Key Features

• 120° Wide-Angle Sector Coverage: The integrated 15 dBi high-gain antenna provides a broad 120° horizontal beamwidth, allowing a single base station to connect multiple CPE clients across a wide area.
• Long-Range 5 km Transmission: High-performance RF design enables stable, long-distance data links up to 5 km, ideal for spanning large industrial sites or rural communities.

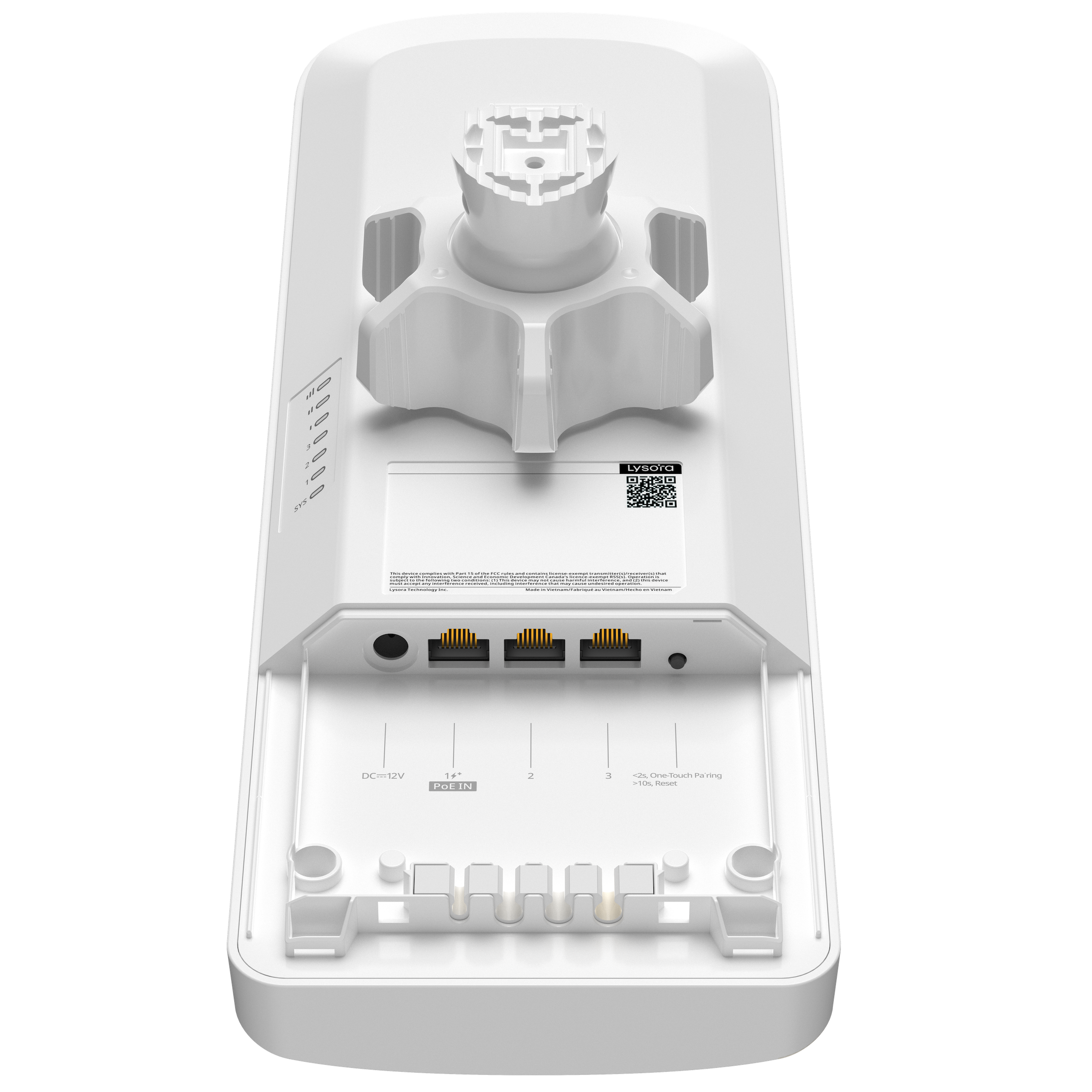

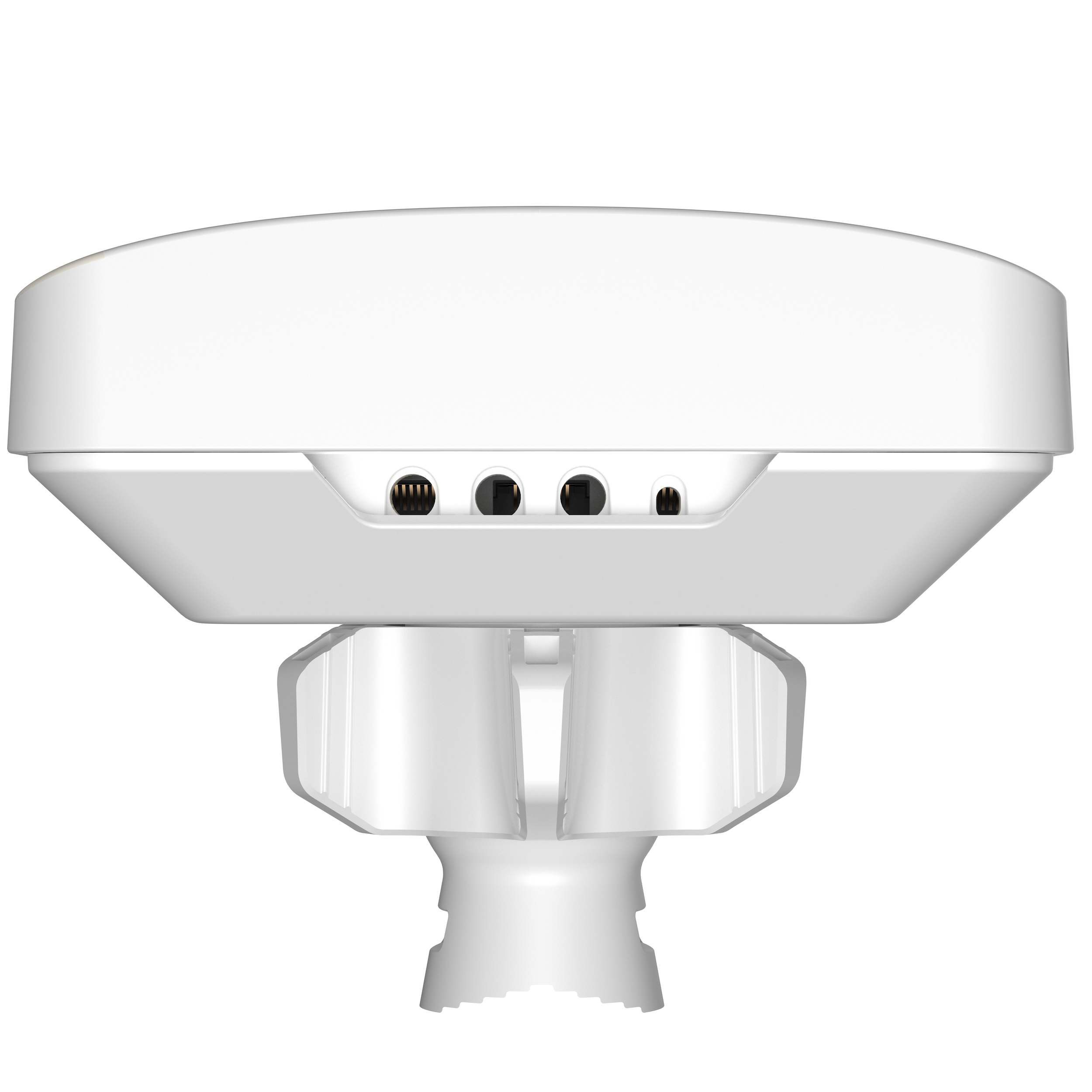

• High-Speed Gigabit Uplink: Equipped with three 10/100/1000BASE-T ports to eliminate wired bottlenecks and support multiple high-bandwidth devices at the base site.
• Efficient PTMP Coordination: Utilizes TDMA (Time Division Multiple Access) technology to manage communication with multiple clients, significantly reducing channel contention and improving network stability.
• Superior Processing Power: A dual-core 880 MHz CPU with 128 MB RAM ensures smooth handling of intensive data traffic and complex management tasks.
• Industrial Weatherproofing: IP55-rated protection and ±4 kV surge resistance allow for reliable operation in extreme temperatures ranging from –30°C to +65°C.
• Comprehensive Cloud Management: Supports unified networking and remote O&M through the Lysora Cloud App, alongside local Web and SSH management options.
