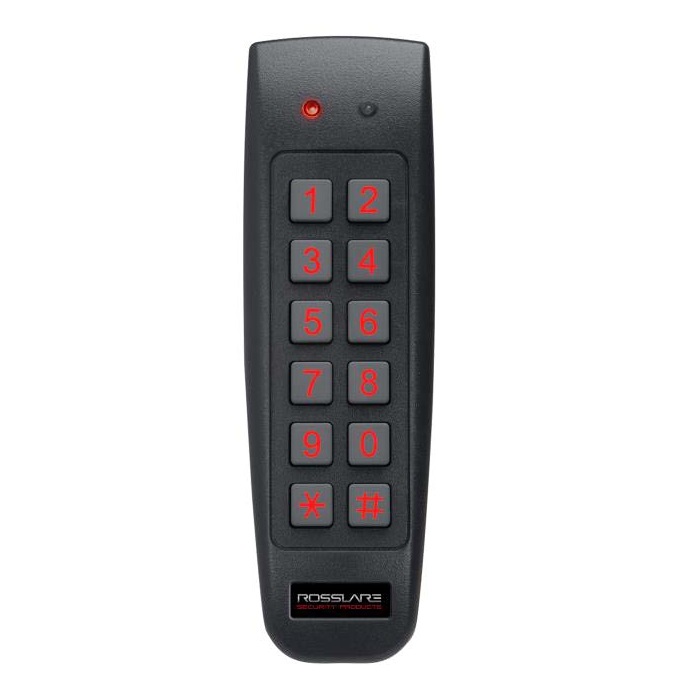

AYC-G54 PLASTIC MULL. PIN ONLY SECURED CTRL AND 26 BIT RDR BACKLIT

SKU: AYC-G54

PLASTIC MULL. PIN ONLY SECURED CTRL AND 26 BIT RDR BACKLIT

14 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Supports 4- to 8-Digit PIN credentials
Smooth, attractive design, with all-weather indoor and outdoor operation
Large, high-visibility RED backlit keypad
2 tri-colored LEDs and an integral sounder for programming and operation
User-friendly menu, based on keypad, LED and sounder indicators
Back and cover optical tamper detection and output
Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays

Product Manual

No related firmware found.

Additional information

Operating Voltage Range	Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies
Input Current	Standby: 75 mA at 12 VDC Maximum: 110 mA at 16 VDC
Tamper	Open collector, active low, 32 mA max sink current
Keypad	2×6 keypad for local programming and 4 to 8 digit PIN codes entry
Design	Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments.
Audio/Visual	Two tri-color LED indicators, built-in buzzer
LED Contro	Dry contact, N.O.
Facility Cod	Programmable
Capacity	500 users, single/dual PIN code e
User Leve	Normal, Secure, Master
Security Mode	Normal, Bypass, Secure
Output	Lock Strike output Auxiliary output (PS-x25T series)
Inputs	REX (Request to Exit) Auxiliary/Door Monitor with 10 programmable modes
Operating Environment	Weather-resistant, meets IP65, epoxy-potted, suitable for outdoor use
Dimensions (H x W x D)	137 x 44 x 21 mm (5.4 x 1.7 x 0.8 in.)
Weight	160 g (5.6 oz)
SYSTEM COMPONENT	AYC-G54 is compatible with standard access controllers in Reader mode. With Rosslare’s PS-x25T intelligent power supply series, it automatically converts into a 500-user secure controller.
PRODUCT WARRANTY	5-Year Limited Product Warranty
