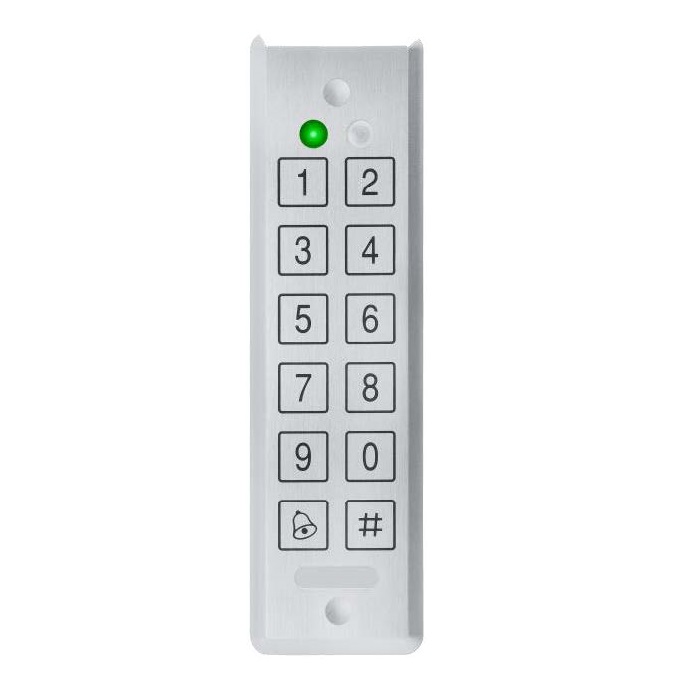

AYC-E55 PIEZO MULL. PIN ONLY SECURED CTRL AND 26 BIT RDR

SKU: AYC-E55

PIEZO MULL. PIN ONLY SECURED CTRL AND 26 BIT RDR

15 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Supports 4- to 8-digit PIN credentials
Smooth, attractive design, for all-weather indoor and outdoor operation
Large, highly visible piezoelectric keypad
2 tri-colored LEDs and an integral sounder for programming and operation
User-friendly menu system based on keypad, LED, and sounder indicators
Optical back tamper detection output
Default operation as a multi-format reader Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays

Product Manual

No related firmware found.

Additional information

Operating Voltage Range	Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies
Input Current	Standby: 15 mA @ 12 VDC, Maximum: 40 mA @ 16 VDC
Keypad	2×6 keys for local programming and 4- to 8-digit PIN codes entry
Tamper	Open collector, active low, 30 mA max sink current
Audio/Visual	Two tri-colored LED indicators, built-in buzzer
Design	Epoxy potted, fully-sealed in a rugged thin metal enclosure, highly strong construction and high sensitive piezoelectric keys. Suitable for extremely harsh environments
LED Control	Dry contact, N.O.
Facility Code	Programmable
PIN Code Formats	8 selectable formats, from 1- to 8-digit PIN codes
CONTROLLER MODE	Available with PS-x25T series intelligent power supplies only
Capacity	500 users, single/dual PIN code each
User Levels	Normal, Secure, and Master
Security Modes	Normal, Bypass, and Secure
Outputs	Lock Strike output, Auxiliary output (PS-x25T series)
Inputs	REX (Request to Exit) Auxiliary/Door Monitor with 10 programmable modes
Operating Environment	All weather, indoor and outdoor use, meets IP6
Operating Temperature	-30˚C to 65˚C (-22˚F to 150˚F)
Operating Humidity	0 to 95%
Dimension	155 x 44 x 6.5 mm (6.10 x 1.73 x 0.26 in.)
Weight	120 g (0.265 lbs)
SYSTEM COMPONENTS	AYC-E55 (Reader mode) is compatible with standard access controllers. With Rosslare’s PS-x25T intelligent power supplies series, it automatically converts into a 500-user secure controller.
PRODUCT WARRANTY	5-year Limited Product Warranty
