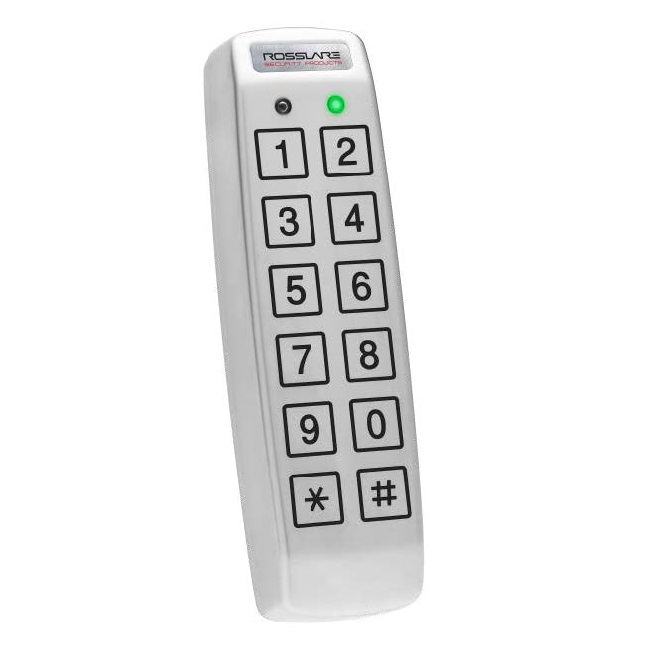

AY-S55 PROGRAM READER VANDAL/ PIEZO PIN ONLY MULLION
Click to enlarge

AY-S55 PROGRAM READER VANDAL/ PIEZO PIN ONLY MULLION

ROSSLARE
SKU: AY-S55

Call for price

PROGRAM READER VANDAL/ PIEZO PIN ONLY MULLION

Add to wishlist
Add to compare
19 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • Supports 4-digit to 8-digit PIN credentials
  • Smooth, attractive design, with all-weather indoor and outdoor operation
  • Large metallic piezoelectric keypad with highly sensitive keys
  • 2 tri-colored LEDs and an integral sounder for programming and operation
  • User-friendly menu system based on keypad, LED and sounder indicators
  • Back optical tamper detection output
  • Door bell feature (‘*’ key), when operated with Rosslare controllers

Download

Product Manual

No related firmware found.
Additional information
Operating Voltage Range

5–16 VDC, from a regulated power supply

Standby Input Current

30 mA

Maximum Input Current

120 mA

LED Control Input

Dry Contact, N.O.

Tamper Output

Open collector, active low, max. sink current 32 mA

Keypad

2×6 Keys for PIN codes entry and local programming Doorbell key ('*') function (with Rosslare controllers only)

Facility Code

Programmable

PIN Code Formats

8 selectable formats, from single-digit to 8-digit PIN codes, including: – Wiegand 6-Bit and 8-Bit, nibble and parity bit options, optional Rosslare format – 1–5 keys, fixed 4 keys and 6 keys BCD with Facility code, Wiegand 26-Bit – 2×6 matrix single key – 1 to 8 keys BCD, Clock & Data

Audio/Visual

Two tri-color LED indicators, Built-in sounder

Design

Epoxy-potted, fully-sealed in a rugged metal slim enclosure, high strength construction, high-sensitive piezoelectric metal keys, no moving parts. Highly suitable for extremely harsh environments.

Operating Environment Range

Suitable for outdoor use (meets IP65)

Operating Temperature Range

-31ºC to 63ºC (-25ºF to 145º F)

Operating Humidity

0% to 95% (non-condensing)

RFI Protection

> 10 V/m up to 1000 MHz

Dimensions (H x W x D)

150 x 42 x 27 mm (5.9 x 1.7 x 1.1 in.)

Weight

400 g (14.1 oz)

SYSTEM COMPONENTS

The AY-S55 is compatible with a variety of Rosslare's access controllers, as well as with many third party access control systems.

PRODUCT WARRANTY

5-Year Limited Product Warranty
