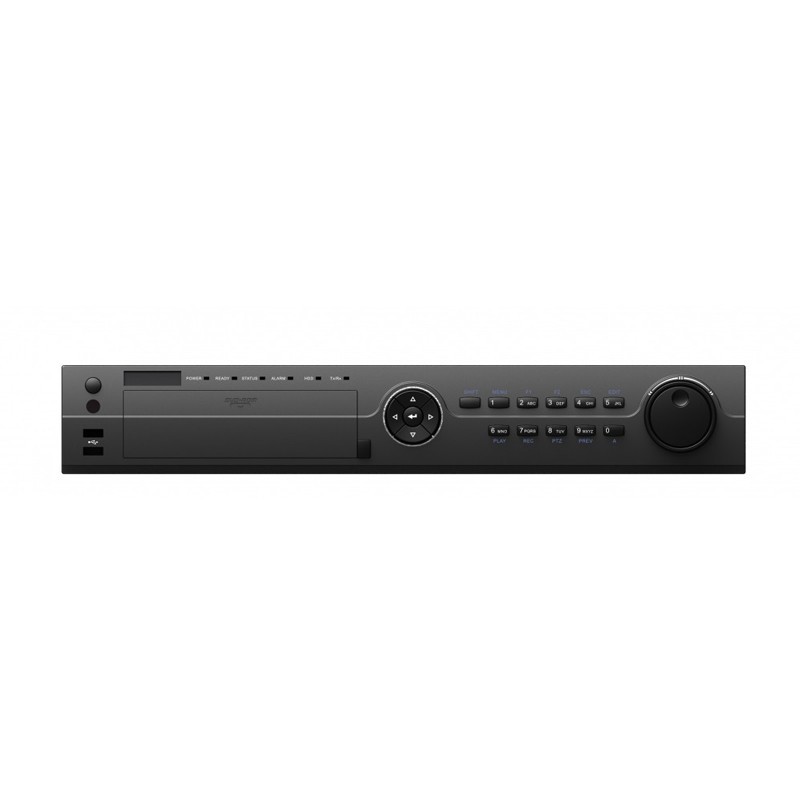

AR715-16 16 Channel Full 1080P 2U 8HDD TVI Tribrid DVR

SKU: AR715-16

16 Channel Full 1080P 2U 8HDD TVI Tribrid DVR

14 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

Appearance Design

  • Typical chassis design to guarantee the low noise and environmental protection of the device
  • Front slot of DVD-R/W for more convenient installation and maintenance

Video Input and Transmission

  • Connectable to HDTVI, AHD and analog cameras
  • Up to 18-ch 8 MP IP cameras input for AR-715-16
  • Long distance transmission over UTP and coaxial cable

Compression and Recording

  • One-key enable H.264+ compression improves encoding efficiency by up to 50% and reduces data storage costs
  • Full channel recording at up to 3 MP resolution
  • Supports POS triggered recording and POS information overlay

Video Output

  • Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K
    (3840 × 2160) resolution
  • Independent CVBS output improves compatibility at the most possibility and serves as the aux output or live view
    output only

Storage and Playback

  • Eight SATA interfaces (up to 6 TB capacity per HDD)
  • Hot-swappable HDD supporting RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme
  • 16-ch synchronous playback

Smart search for efficient playback

  • Supports playback by main stream, or sub-stream for IP cameras
  • Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

  • Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
  • Supports line crossing detection and intrusion detection of all channels
  • Supports people counting and heat map functions for 1-ch analog camera

VQD (Video Quality Diagnostics)

  • Unlock pattern for device login for the admin and clear-text password available
  • GUID file can be exported for password resetting and imported for finding the forgotten password
  • Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

  • Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management
  • 2 gigabit Ethernet network interfaces
  • Output bandwidth limit configurable

Download

Product Manual

Related Firmware

TitleDescriptionDownload
AR314 AR315 AR515 AR715AR314 AR315 AR515 AR715 V3.4.88K57_V3.4.88_180312
Additional information
Video compression

H.264+/H.264

Analog video input

16-ch BNC interface(1.0Vp-p

,

75Ω)

,

supporting coaxitron connection

Channels

HDTVI input

3 MP

,

1080p25

,

1080p30

,

720p25

,

720p30

,

720p50

,

720p60

AHD input

720p25

,

720p30

,

1080p25

,

1080p30

IP Video Input

2-ch (up to 18-ch) Up to 8 MP resolution H.265/H.264+/H.264

Case

Network bandwidth

260 Mbps

Video Bit Rate

32 Kbps to 10 Mbps

Audio bit rate

64 Kbps

Synchronous playback

16-ch

Remote connections

128

HDD Support

Capacity

Up to 6 TB capacity for each disk

Power

100 to 240 VAC

Consumption (without HDD)

≤65 W

Dimensions

445 × 470 × 90 mm (17.5 × 18.5 × 3.5 inch)

Weight (without HDD)

≤ 8 kg (17.6 lb)
