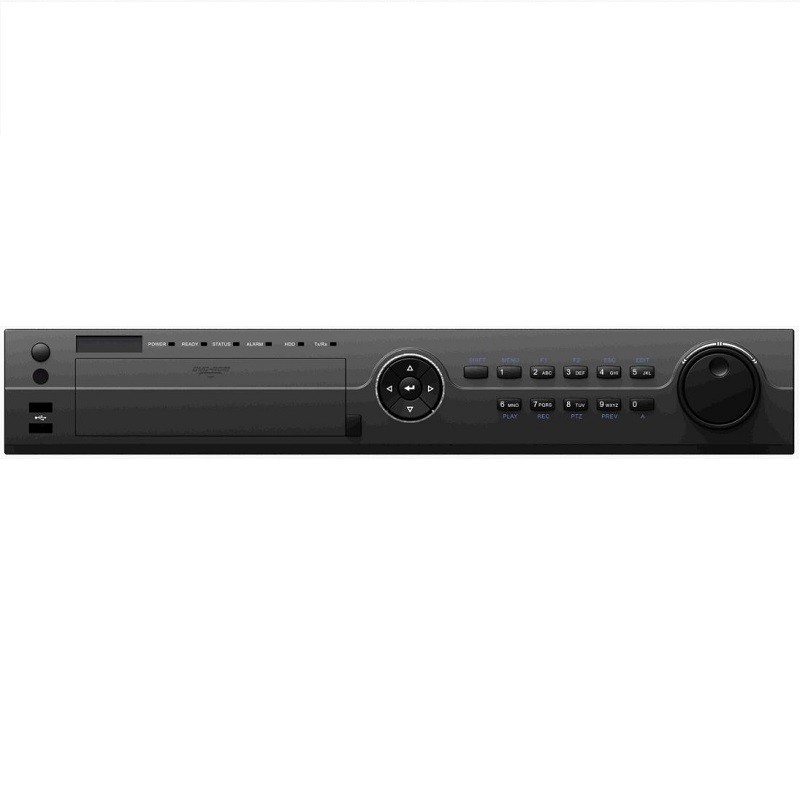

AR526-24 24 Channel 8MP H.265+ 4HDD Bay XDVR

SKU: AR526-24

24 Channel 8MP H.265+ 4HDD Bay XDVR

13 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

Appearance Design

  • Typical chassis design to guarantee the low noise and environmental protection of the device
  • Front slot for insertion of DVD-R/W with bracket to make it more convenient to install and maintain

Video Input and Transmission

  • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
  • Up to 8 MP IP cameras input
  • Long distance transmission over UTP and coaxial cable

Compression and Recording

  • H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
  • Connectable to H.265+/H.265/H.264+/H.264 IP cameras
  • H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
  • Full channel recording at up to 5 MP resolution
  • Supports POS triggered recording and POS information overlay

Video Output

  • Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 × 2160) resolution
  • Separate CVBS output

Storage and Playback

  • Four SATA interfaces (up to 8 TB capacity per HDD) and one eSATA interface
  • Hot-swappable HDD supporting RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme
  • 16-ch synchronous playback
  • Smart search for efficient playback
  • Supports playback by main stream, or sub-stream for IP cameras
  • Supports third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

  • Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
  • Supports line crossing detection and intrusion detection of all channels and sudden scene change detection of 2-ch

analog cameras

  • Supports people counting and heat map functions for 1-ch analog camera
  • VQD (Video Quality Diagnostics)
  • Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

  • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
  • Two RJ45 10M/100M/1000M Ethernet network interface
  • Output bandwidth limit configurable

Download

Product Manual

Related Firmware

TitleDescriptionDownload
AR526-16 AR524-24/32AR526-16AR524-24/32 V4.20.000V3.5.37AR_K52_V4.20.000_220825
AR726-32 AR526-24/32 ARA26-32V4.20.000 V3.5.50AR526_DZ_K51_ML_NEU_V4.20.000_220721
Additional information
Video compression

H.265+/H.265/H.264+/H.264

Channels

Analog video input

24-ch BNC interface(1.0Vp-p

,

75Ω)

,

supporting coaxitron connection

HDD Support

IP Video Input

16-ch

Audio input

4-ch

,

RCA (2.0 Vp-p

,

1 KΩ)

Encoding resolution

5 MP /4 MP/3 MP /1080p /720p /WD1 /4CIF /VGA /CIF

Video Bit Rate

32 Kbps to 10 Mbps

Audio bit rate

64 Kbps

Synchronous playback

16-ch

Remote connection

128

Capacity

Up to 10 TB capacity for each disk

Power

100 to 240 VAC

Consumption (without HDD)

≤ 74 W

Dimensions

440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)

Weight (without HDD)

≤ 7 kg (15.4 lb)
