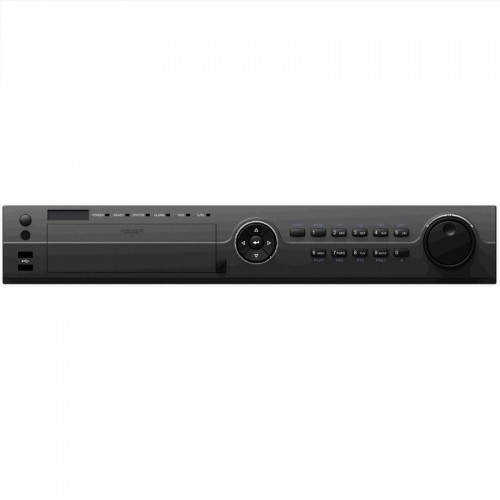

AR526-16 16 CHANNEL 5MP H.265+ 4HDD BAY XDVR

SKU: AR526-16

16 CHANNEL 5MP H.265+ 4HDD BAY XDVR

13 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Support Cloud storage (One Drive, Google Drive or Drop Box)
Up to 5 MP resolution for recording
HDMI output at up to 4K (3840 × 2160) resolution
Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
16-ch synchronous playback
Supports POS triggered recording and POS information overlay

Product Manual

Title	Description	Download
AR526-16 AR524-24/32	AR526-16AR524-24/32 V4.20.000V3.5.37	AR_K52_V4.20.000_220825

Additional information

Video compression	H.265+/H.265/H.264+/H.264
Analog video input	16-ch BNC interface(1.0Vp-p , 75Ω) , supporting coaxitron connection
HDTVI input	8 MP , 5 MP , 4 MP , 3 MP , 1080p25 , 1080p30 , 720p25 , 720p30 , 720p50 , 720p60
IP Video Input	16-ch
Network bandwidth	260 Mbps
Encoding resolution	5MP /4MP /3MP /1080p /720p /WD1 /4CIF /VGA /CIF
Video Bit Rate	32 Kbps to 10 Mbps
Audio output	2-ch,RCA(Linear,1KΩ)
Audio bit rate	64 Kbps
Stream type	Video,Video&Audio
Synchronous playback	16-ch
Channels	16 Channel
HDD Support	4 HDD
Capacity	Up to 10 TB capacity for each disk
Array type	RAID0, RAID1, RAID5, RAID6, RAID10
Serial interface	RS-232,RS-485(full-duplex),Keyboard
Power	100 to 240 VAC
Consumption (without HDD)	≤65 W
Dimension	445×390×70 mm(17.5×15.4×2.8 inch)
Weight (without HDD)	≤5 kg(11.0 lb)
