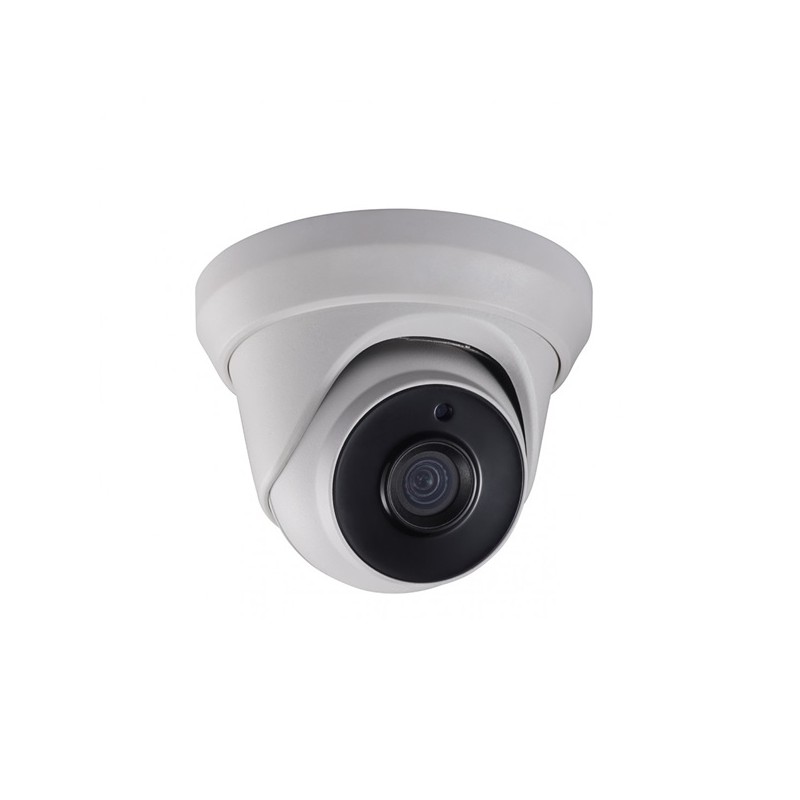

AC346-FD4 5 MP ULTRA-LOW LIGHT CAMERA
Click to enlarge

AC346-FD4 5 MP ULTRA-LOW LIGHT CAMERA

SKU: AC346-FD4-3.6mm

Call for price

5 MP ULTRA-LOW LIGHT CAMERA

Add to wishlist
Add to compare
13 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 5 MP high performance CMOS
  • 2560 x 1944 resolution
  • 3.6mm fixed lens
  • EXIR 2.0, smart IR, up to 60 m IR distance
  • OSD menu, 3D DNR, 130 dB true WDR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67
  • Up the coax (UTC-C)

Download

Product Manual

No related firmware found.
Additional information
Camera Resolutions

Lens Size

Signal System

PAL/NTSC

Resolution

2560(H)×1944(V)

Minimum Illumination

Color: 0.003 Lux@(F1.2

,

AGC ON)

,

0 Lux with IR

Shutter Speed

PAL:1/25 s to 1/50000 s NTSC: 1/30 s to 1/50,000 s

Horizontal Field of View

78° (3.6 mm)

Lens Mount

M12

Day/Night

IR cut filter

Angle Adjustment

Pan:0°to 360°;Tilt: 0°to 75°;Rotation:0°to 360°

Synchronization

Internal synchronization

Video Output

1 HD analog output

Power

DC12V ±25% *You are recommended to use one power adapter to supply the power for one camera.

Power Consumption

Max 5.8W

Protection

IP67

Material

Enclosure: Plastic Main body: Metal

IR Range

Up to 60 m

Dimension

Φ109.82 mm×91.03 mm(Φ4.32"×3.6")

Weight

Approx.310 g (0.68 lb.)
