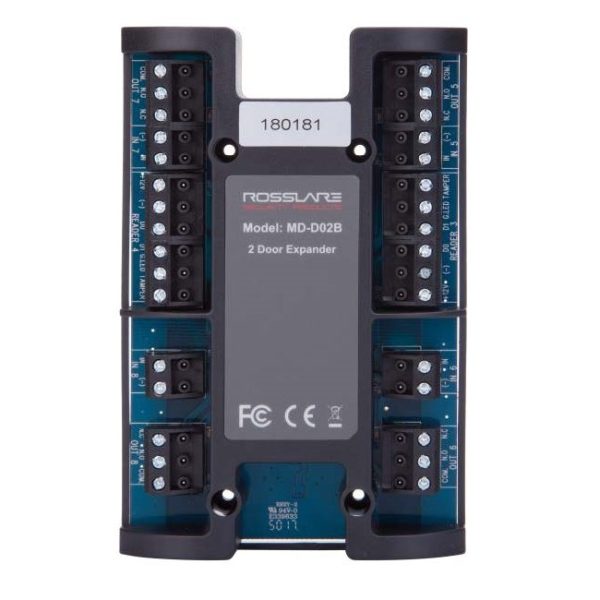

Input Voltage	12 VDC from host controller
Input Current (not including devices)	Standby: 30 mA Maximum: 135 mA
Number of Reader Ports	2
Number of Inputs	4
Output Relays	4 x 5 A with N.O., N.C. and COM contacts Form-C Relays
Inputs Voltage	5 VDC maximum voltage
Reader Output Voltage	12 VDC
Maximum Reader Current	300 mA
LED Control Output	Open collector, active low
Tamper Input	5 VDC maximum voltage
Supported Formats	Various, please refer to the AxTraxNG User Guide or the AxTraxPro User Guide
Power LED	Active when connected to a power source
Output LEDs	Four LEDs, each output LED is active when an output relay is activated and N.O. to COM contacts are shorted
Dimensions	100 x 75.9 x 32.5 mm (3.9 x 3.0 x 1.3 in.)
Weight	98.2 g (0.2 lb)
PRODUCT WARRANTY	2-year limited product warranty

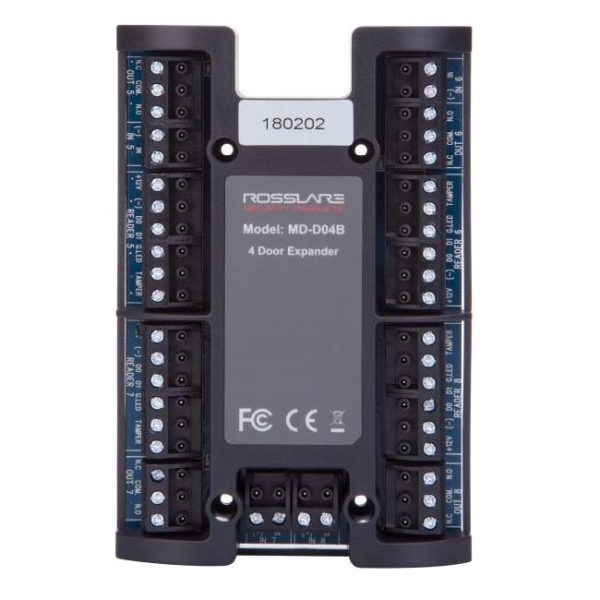

Input Voltage	12 VDC from host controller
Input Current (not including devices)	Standby: 30 mA Maximum: 135 mA
Number Reader Ports	4
Number of Inputs	4
Output Relays	4 x 5 A with N.O., N.C. and COM contacts Form-C Relays
Inputs Voltage	5 VDC maximum voltage
Reader Output Voltage	12 VDC
Maximum Reader Current	300 mA
LED Control Output	Open collector, active low
Tamper Output	5 VDC maximum voltage, optical anti-tamper sensor
Supported Formats	Various, please refer to AxTraxNG User Guide or the AxTraxPro User Guide
Power LED	Active when mounted correctly on the host controller (AC-425)
Output LEDs	Four LEDs; Each output LED is active when an output relay is activated and N.O. to COM contacts are shorted
Dimensions	115 x 75.9 x 32.5 mm (4.52 x 2.98 x 1.28 in.)
Weight	98.2 g (0.21 lb)
PRODUCT WARRANTY	2-year limited product warranty

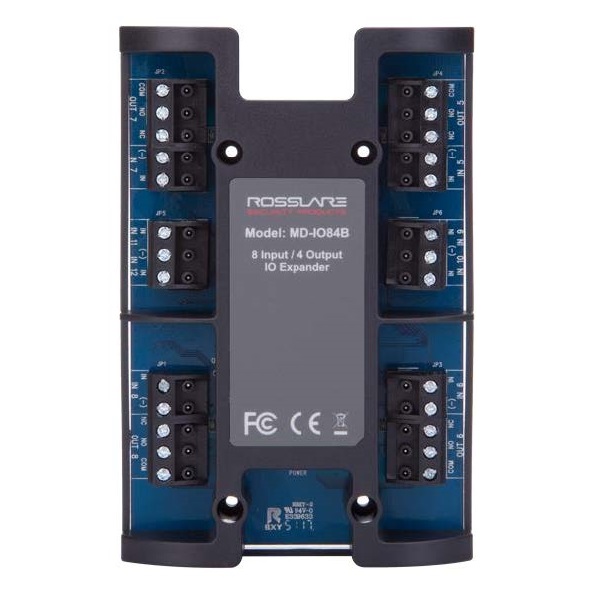

Input Voltage	12V DC
Input Current	Standby: 30mA / Maximum: 135 mA
Number of Inputs	8
Number of Outputs	4
Output Relays	5A Form C Relays , NO , NC and COM contacts and Form C Relays
Inputs Voltage	5V DC
Dimensions (L x W x H)	100mm L x 75.9mm W x 32.5 D (3.93in. x 2.98 in. x 1.28 in.)

Input Voltage	12 VDC
Input Current (not including devices)	Standby: 30 mA Maximum: 135 mA
Number of Outputs	4
Number of Inputs	8
Output Relays	5 A @ 30 VDC with N.O., N.C. and COM contacts Form-C Relays
Inputs Voltage	5 VDC maximum voltage
Input Type	Selectable: Normally Open, Normally Closed, Non-supervised (two states), supervised with one resistor (three states), supervised with two resistors (four states)
Power LED	Active when mounted correctly on the host controller
Output LEDs	Four LEDs; each output LED is active when an output relay is activated and N.O. to COM contacts are shorted
Dimensions	100 x 75.9 x 32.5 mm (3.93 x 2.98 x 1.28 in.)
Weight	98.2 g (0.21 lb)
PRODUCT WARRANTY	2-year Limited Product Warranty
