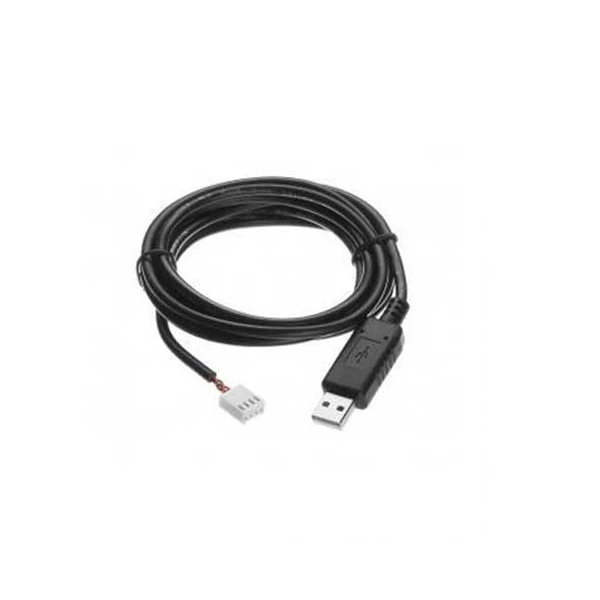

MD-14U RS-0485 TO USB CONVERTER CABLE
| In Line |
USB 2.0 standard (compatible USB 1.1) ,are in line with the EIA standard. |
|---|---|
| Operating Systems Compatible |
Windows 7 32- and 64-bit ,Windows Vista ,and Vista 64-bit ,Windows XP and XP 64-bit ,Server 2003 ,XP and Server 2008 ,Windows XP Embedded ,Windows CE 4.2 ,5.0 and 6.0 ,Mac OS-X |
| Input Power Supply |
USB powered |

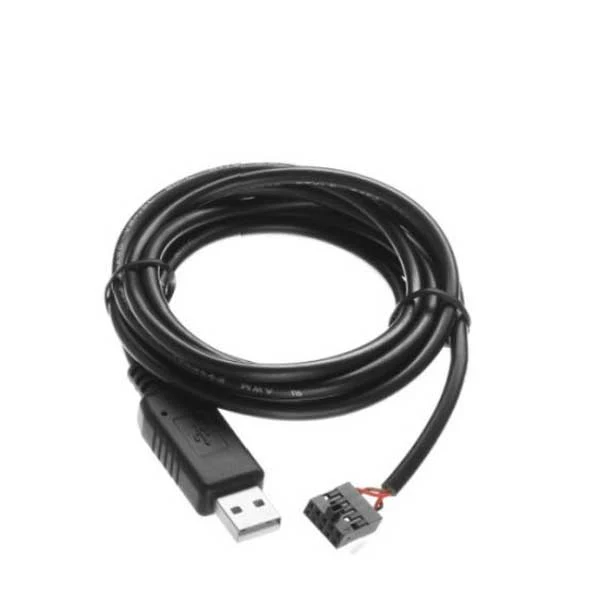

MD-62U RS-232 TO USB
| In Line |
USB 2.0 standard (compatible USB 1.1) ,are in line with the EIA standard. |
|---|---|
| Operating Systems Compatible |
Windows 7 32- and 64-bit ,Windows Vista ,and Vista 64-bit ,Windows XP and XP 64-bit ,Server 2003 ,XP and Server 2008 ,Windows XP Embedded ,Windows CE 4.2 ,5.0 and 6.0 ,Mac OS-X |
| Operating Temperature |
-35°C to 66°C |
| Input Power Supply |
USB powered |

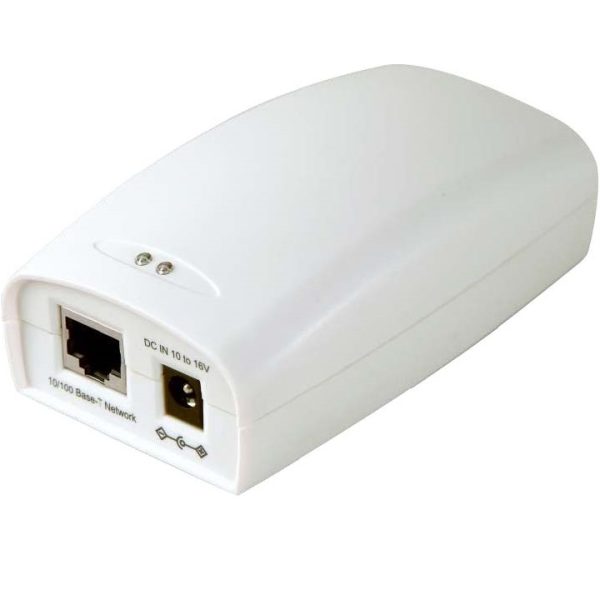

MD-N32 RS-232 to TCP/IP Gateway for Access Control Panels
| Input Power |
12 VDC from power adapter |
|---|---|
| Power Consumption |
Typical: 70 mA Maximum: 100 mA |
| LED |
Green indicates network status Red indicates power supply |
| Hardware Protocols |
TCP, UDP, IP, ARP, ICMP, Ethernet MAC |
| Network Interface |
10/100 Base-T Ethernet (Auto-Detection) RJ-45 jack for LAN connection |
| Serial Port |
D9 male connector RS-23 |
| Data |
1,4,6,7,8,9 –NC 2 – Rx 3 – Tx 5 – GND signal |
| MCU |
8-bit MCU and 32K FLASH |
| Serial Line Format |
8-N-1, 8-O-1, 8-E-1, 7-O-1, 7-E-1 |
| Serial Flow Control |
None, XON/XOFF |
| Transmission Speed |
1200 bps ~ 230.4 Kbps |
| Operating Environment |
Indoor use |
| Dimension |
110 x 63 x 39 mm (4.3 x 2.5 x 1.5 in.) |
| Weight |
92 g (3.25 oz.) |
| SYSTEM COMPONENTS |
The MD-N32 is compatible With Rosslare's controllers AC-215, AC115, Fingerprint Reader AYC-W6500, as well as intrusion alarm panels AuraSys and HomeLogiX. |
| PRODUCT WARRANTY |
2-Year Limited Product Warranty |

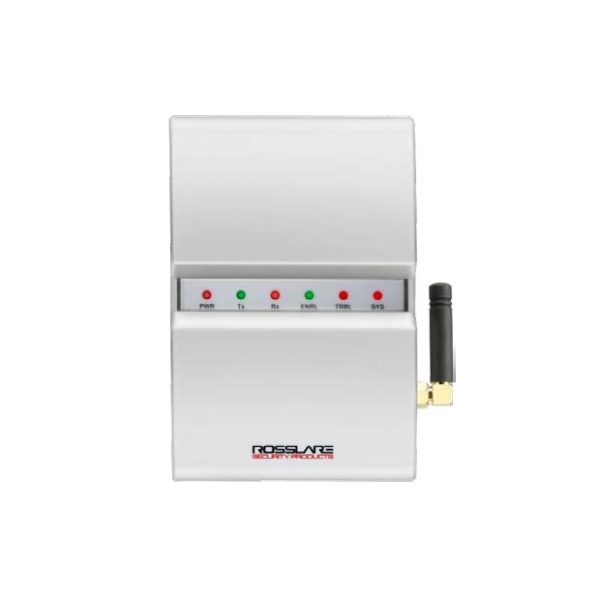

MD-W11GR WIRELESS KIT W/24 V POWER SUPPLY
| Operating Voltage Range |
Far unit: 12–24 VAC, 15–24 VDC Near unit: 13.8 VDC from controller's power supply/wall adapter |
|---|---|
| Input Current, Max |
Standby: 70 mA Maximum: 160 mA |
| Battery Charger |
12 V Sealed Lead-Acid, up to 7 Ah (far unit only) |
| Maximum Range |
Indoors: 70 m (230 ft), Outdoors: 300 m (985 ft) Range depends on RF related environmental conditions |
| Response Time |
Up to 500 ms with Rosslare’s access controllers and readers Response time depends on RF link quality, number of doors used, and controller and reader response time |
| Output Relays |
Far unit: One 5 A Form-C relay Near unit: Two 1 A Form-C relays |
| Output Types |
Dry contact and open collector |
| Communications |
Bi-directional RF, narrow band. Fast anti-collision rolling code protocol with data protection. Available in HR-869 MHz and GR 433 MHz bands, with four selectable channels |
| Data Transfer |
Card and PIN, lock commands, REX, door monitor, LED control and reader tamper |
| Supervisory & Alerts |
Full supervision over the remote unit Alert outputs at the Near unit for supervision failure, system tamper, reader tamper, low battery, and power failure |
| Supported Card transmission formats |
Wiegand 26-, 32- ,34- , and 40-Bit, 26-Bit with Facility code, 32-Bit Reverse |
| Supported PIN code formats |
Single key Wiegand 6-Bit (Rosslare format with parity), Single key Wiegand 8-Bit, 4 keys binary Wiegand 26-Bit, 1 to 5 keys, Wiegand 26-Bit, 6 keys BCD and parity bits |
| Operating Temperature |
-10°C to 50°C (14°F to 122°F) |
| Operating environment |
Indoor use |
| Dimensions |
13 x 8.7 x 3.2 cm (5.1 x 3.42 x 1.26 in.) |
| Weight |
155 g (5.5 oz) |
| SYSTEM COMPONENTS |
Rosslare’s Access Control Panels Rosslare’s 26-Bit readers |
| PRODUCT WARRANTY |
2-year Limited Product Warranty |
