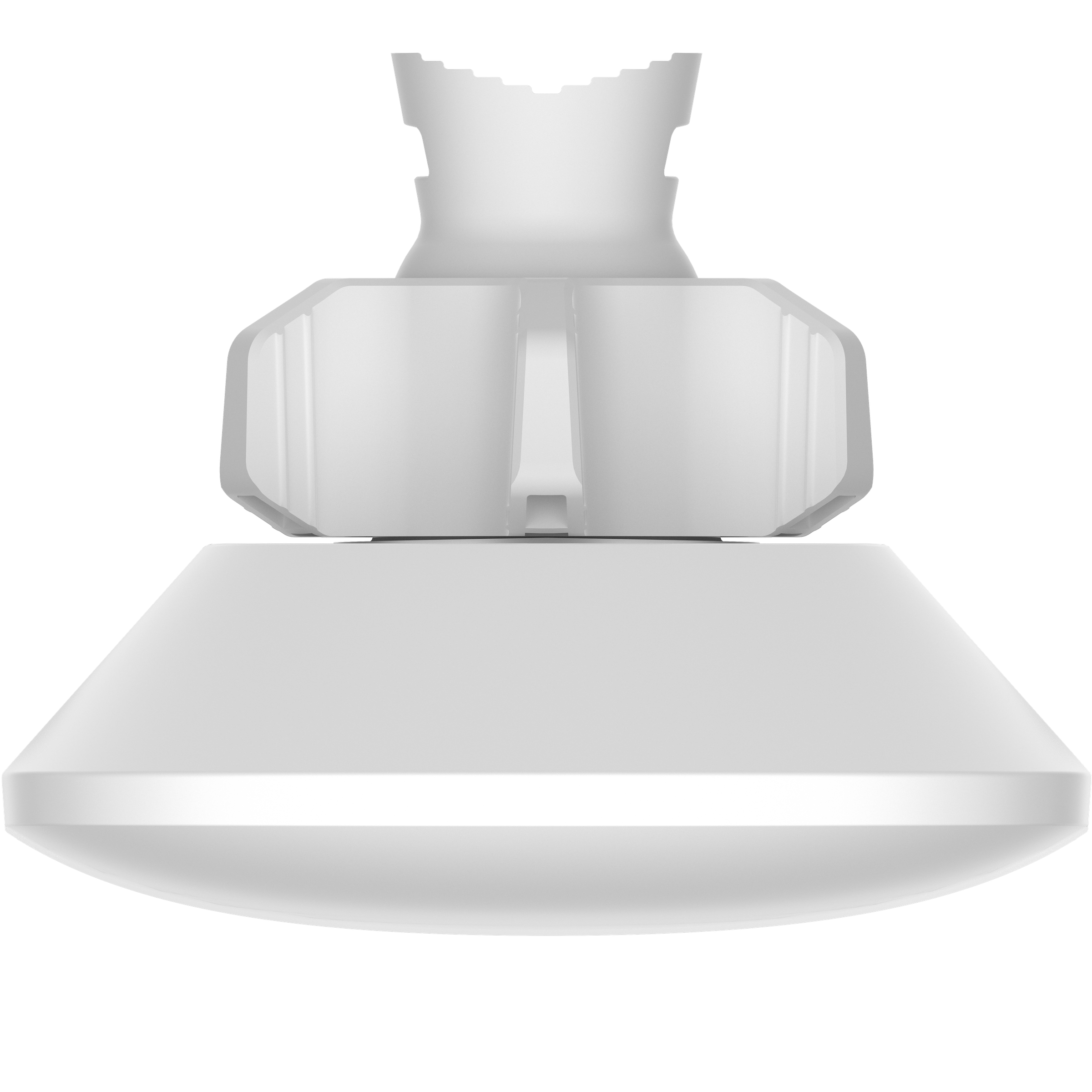

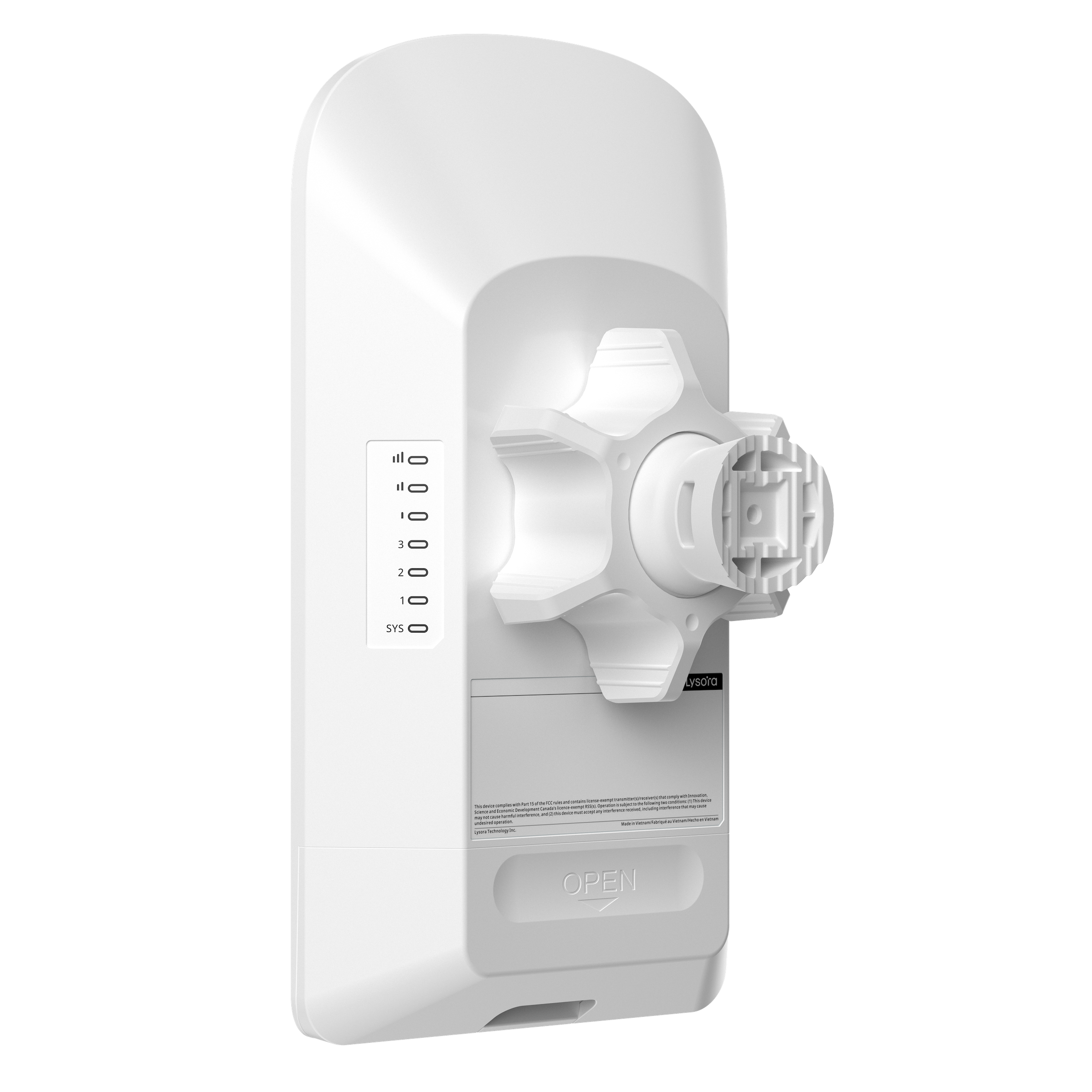

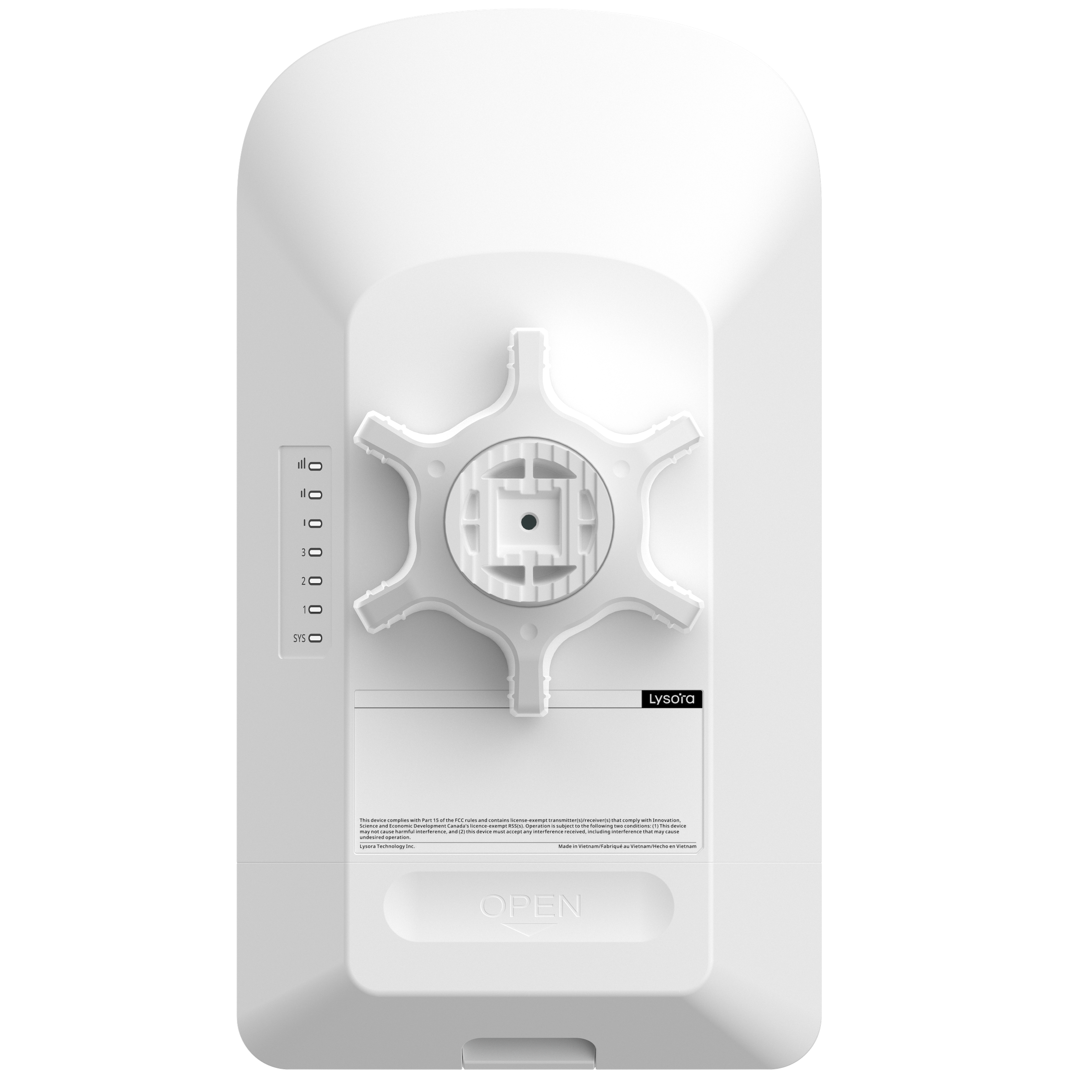

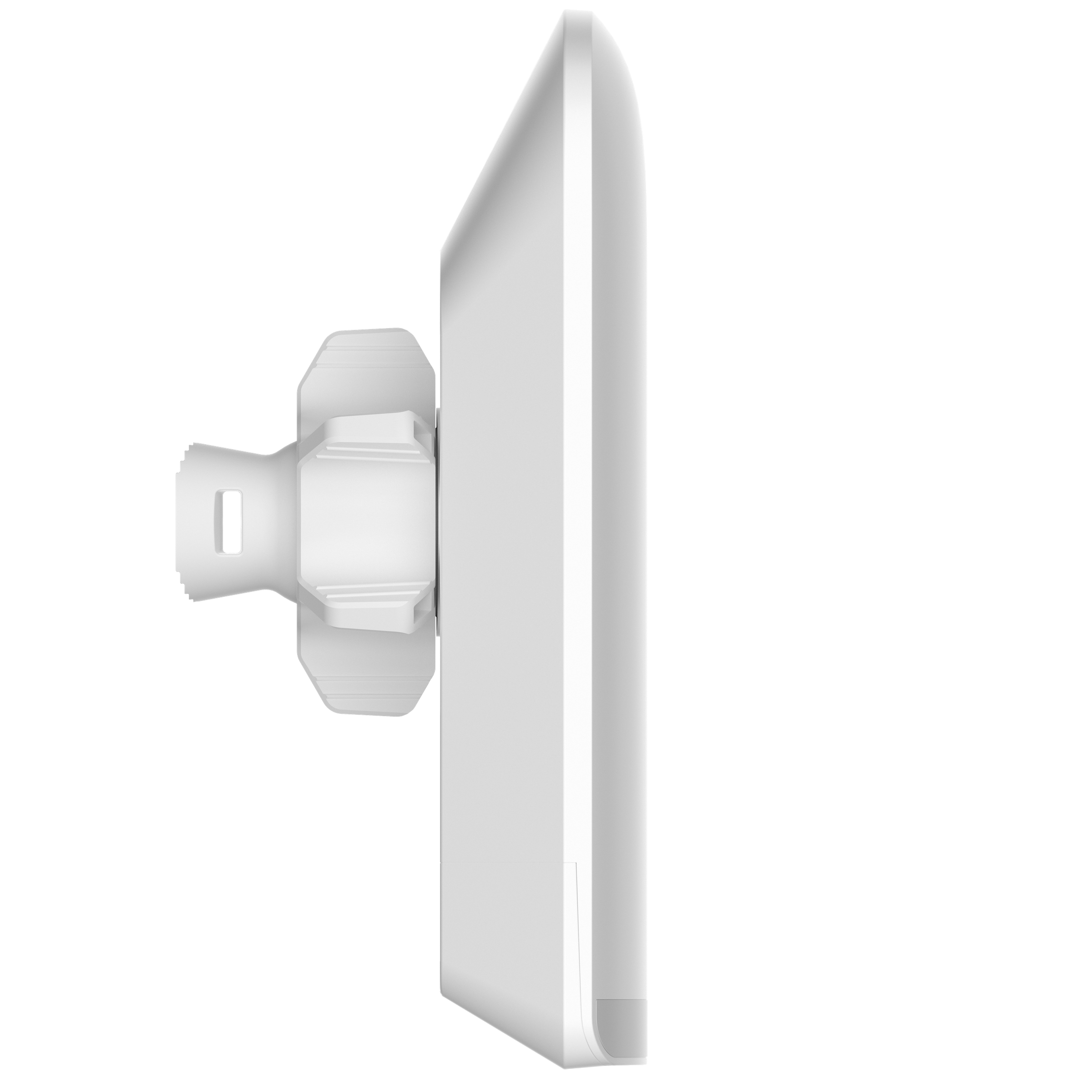

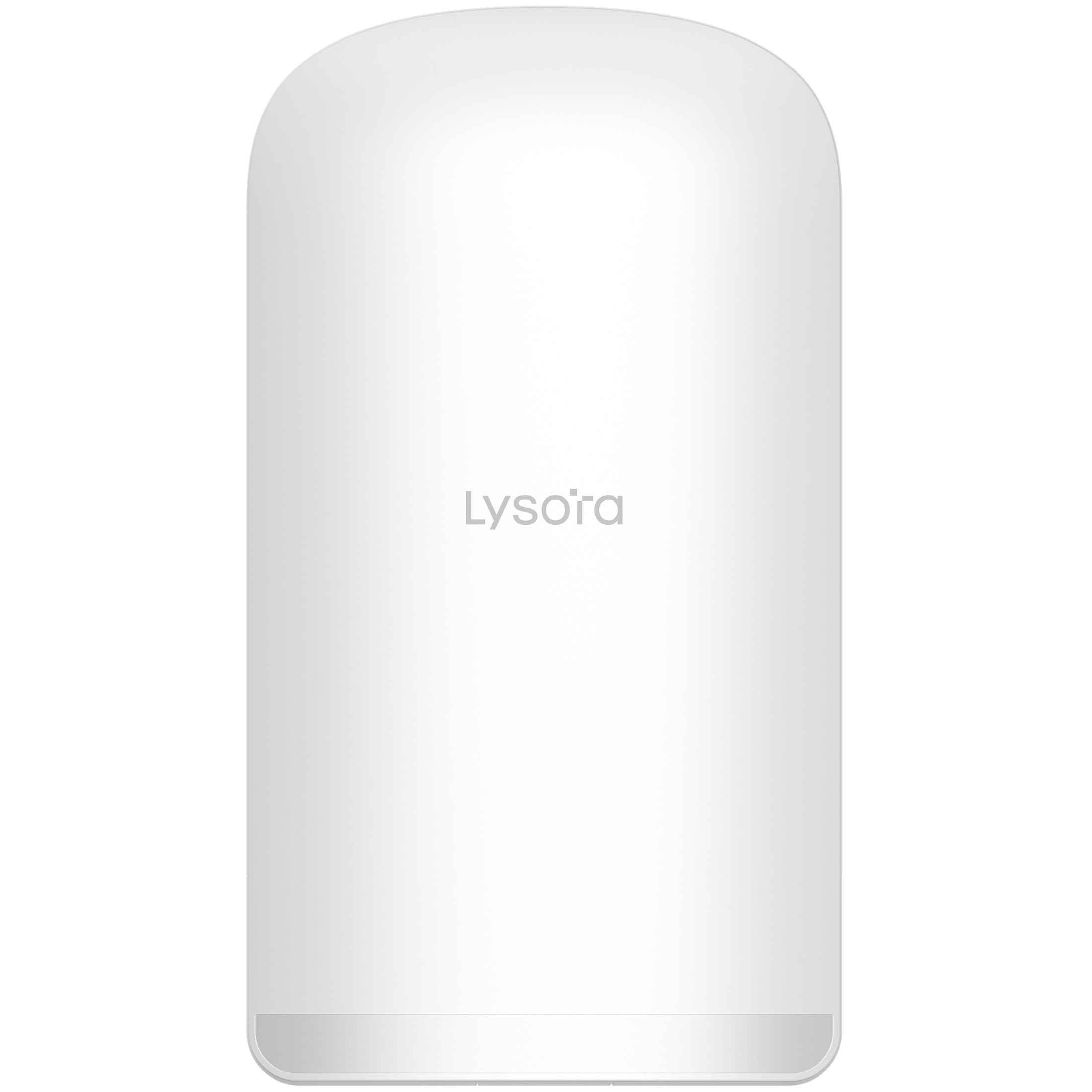

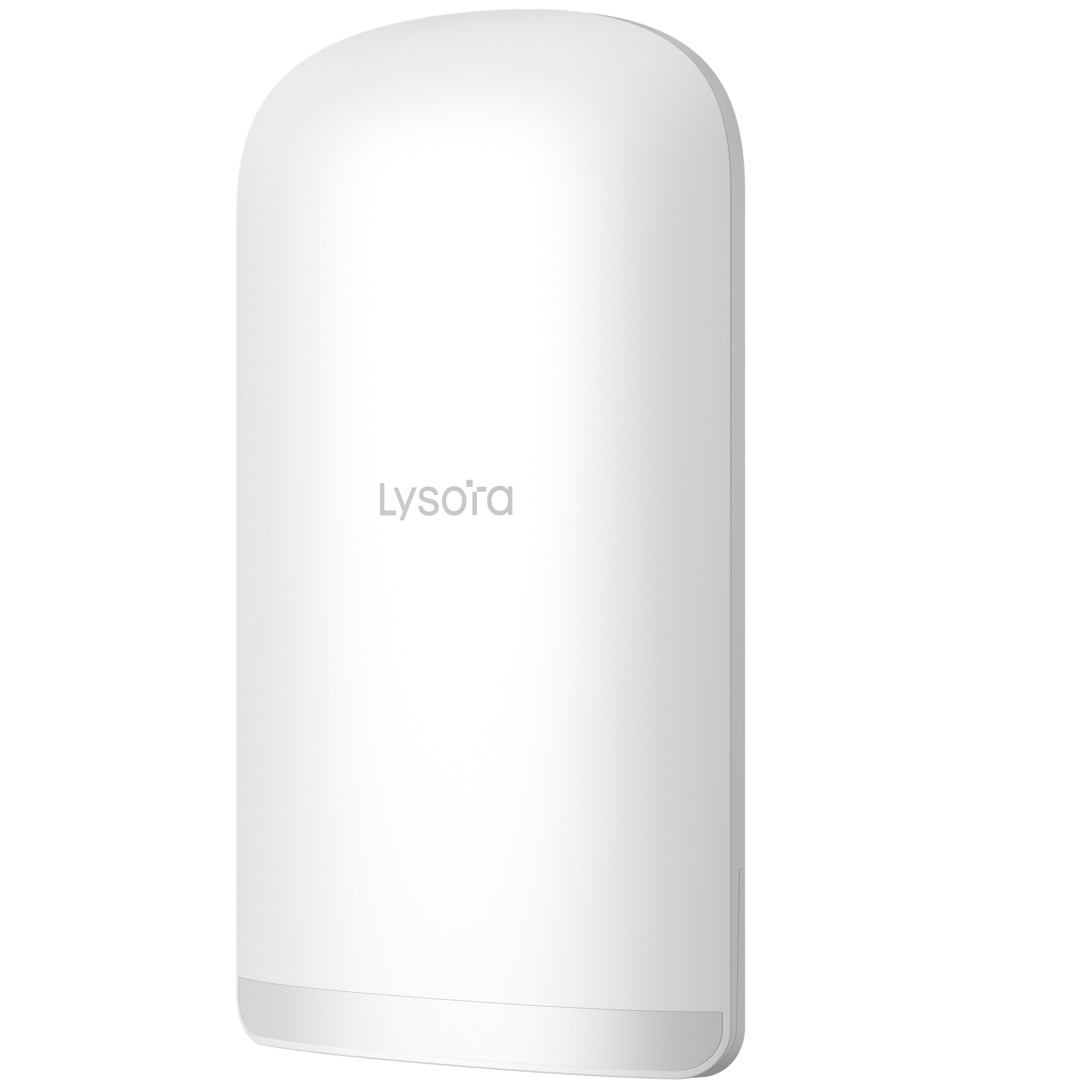

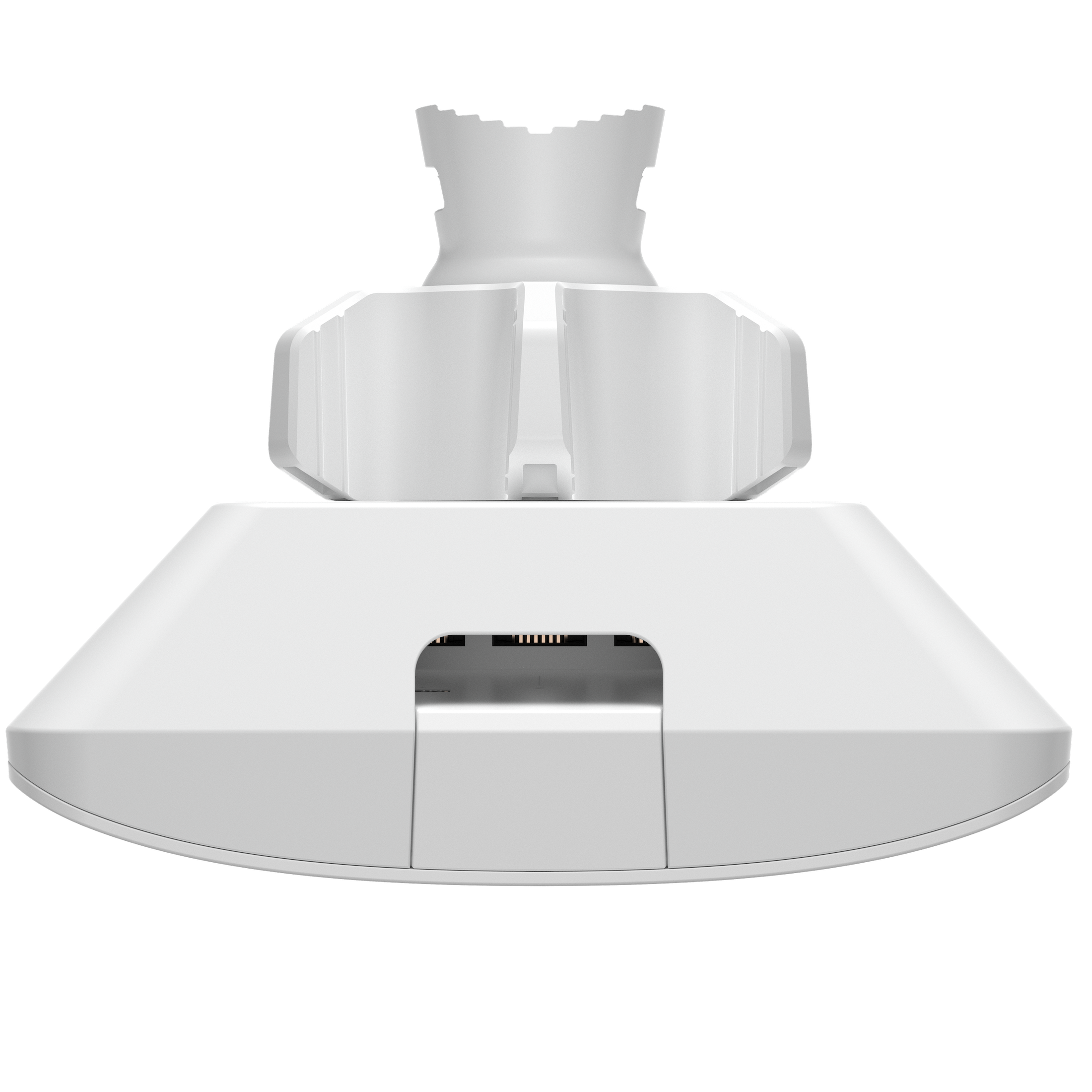

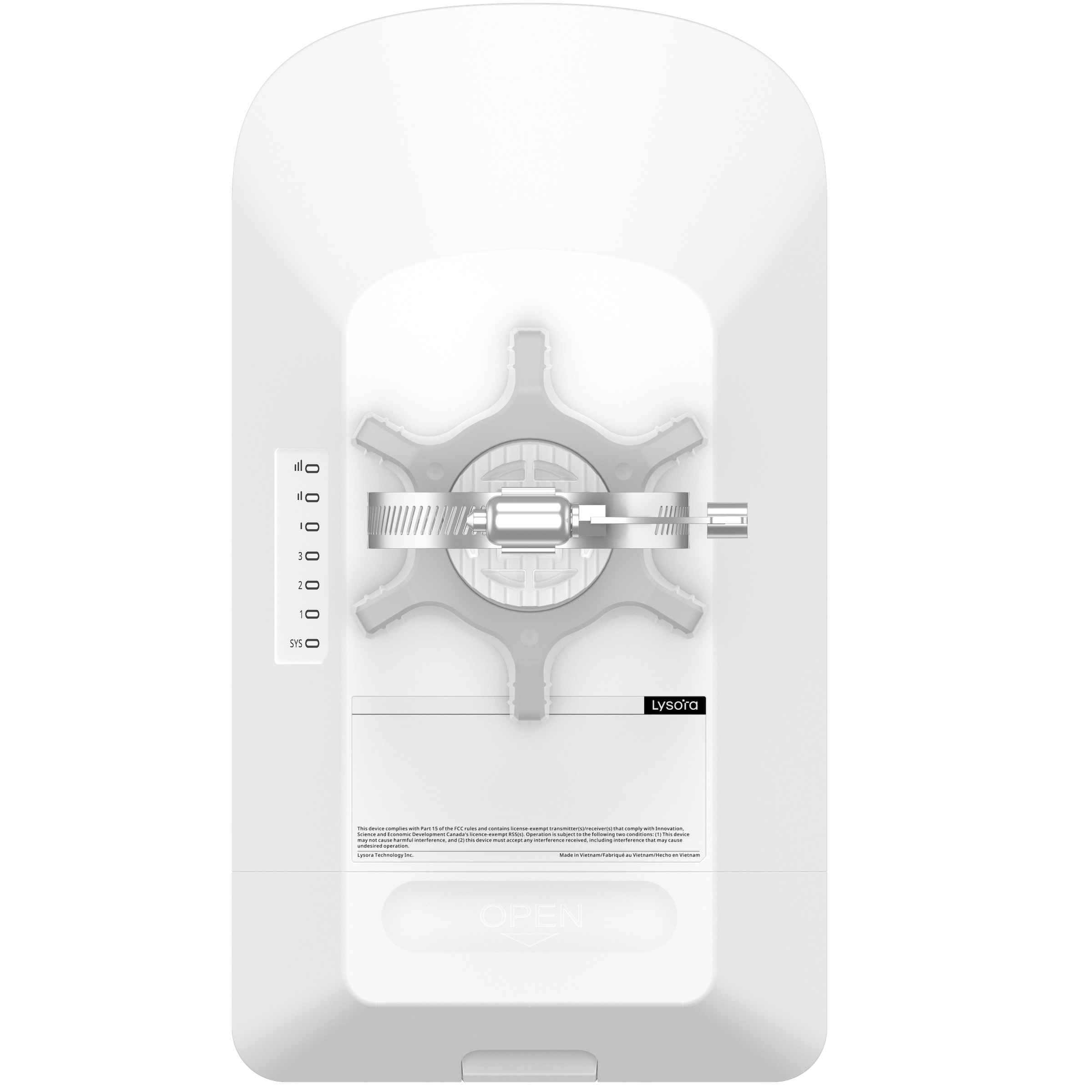

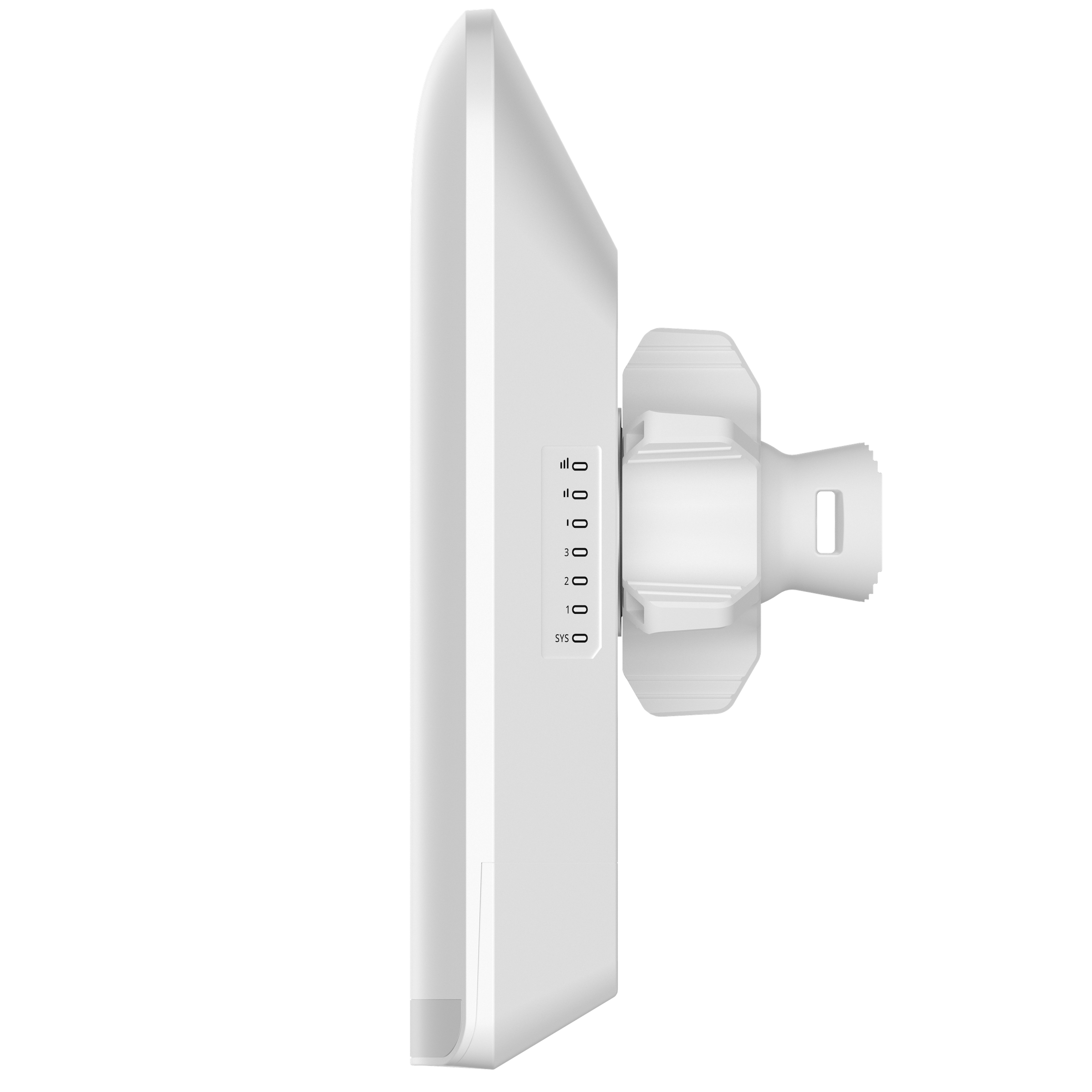

CPE5 5 GHz CPE with 16 dBi Built-in Antenna

Product Overview

The CPE5 is an enterprise-grade 5 GHz Wireless Bridge CPE designed for high-speed, long-range outdoor connectivity. Featuring a powerful built-in 16 dBi high-gain directional antenna and a dual-core 880 MHz processor, it delivers up to 867 Mbps of wireless throughput over distances reaching 5 km (3.11 miles). The device is equipped with three Gigabit Ethernet ports to ensure maximum wired performance and features TDMA technology to maintain stability in point-to-multipoint deployments. With an IP55 weatherproof rating and robust surge protection, the CPE5 is an ideal choice for high-bandwidth surveillance backhaul, campus networking, and long-range building-to-building links.

Key Features

• Long-Range 5 km Connectivity: Integrated 16 dBi high-gain antenna with a narrow 14° vertical beamwidth enables stable, high-performance links over long distances.

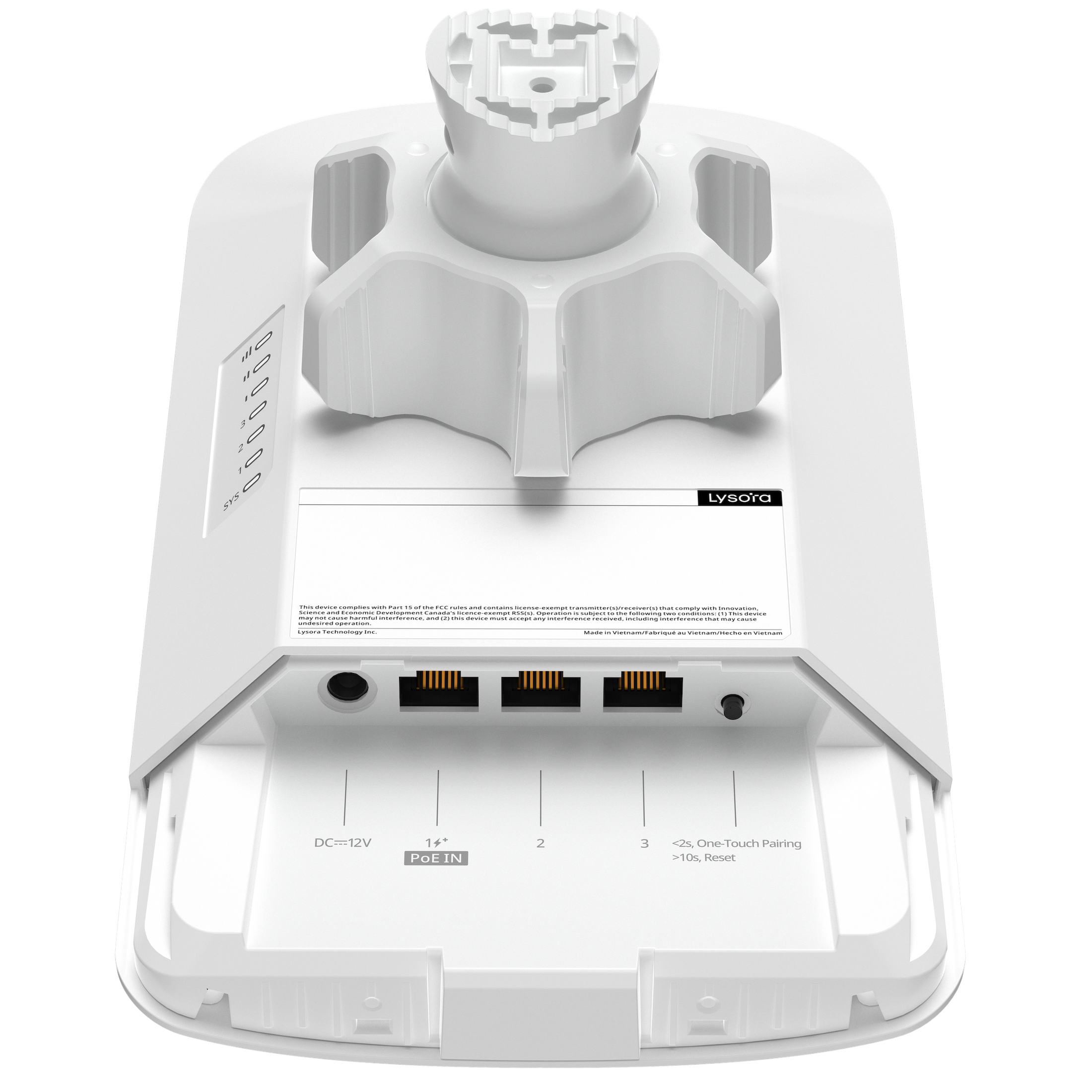

• High-Speed Gigabit Networking: Features three 10/100/1000BASE-T ports, eliminating wired bottlenecks and providing flexible connectivity for multiple local devices.
• Dual-Core Processing Power: Powered by a dual-core 880 MHz CPU and 128 MB RAM to handle high-traffic loads and multi-client PTMP connections without latency.
• Optimized PTMP with TDMA: Supports Time Division Multiple Access (TDMA) to coordinate transmissions for up to 5 CPE clients, effectively preventing channel contention.
• Dual-Band Management Access: Includes a 2.4 GHz radio (300 Mbps) for local configuration and management access, while the 5 GHz radio (867 Mbps) handles the primary data bridge.
• Weather-Hardened Design: IP55-rated enclosure and ±4 kV surge protection allow for reliable operation in extreme temperatures ranging from –30°C to +55°C.
• Advanced Management Tools: Supports self-organizing networks (SON), antenna alignment tools, and spectrum scanning via the Web interface or Lysora Cloud.
